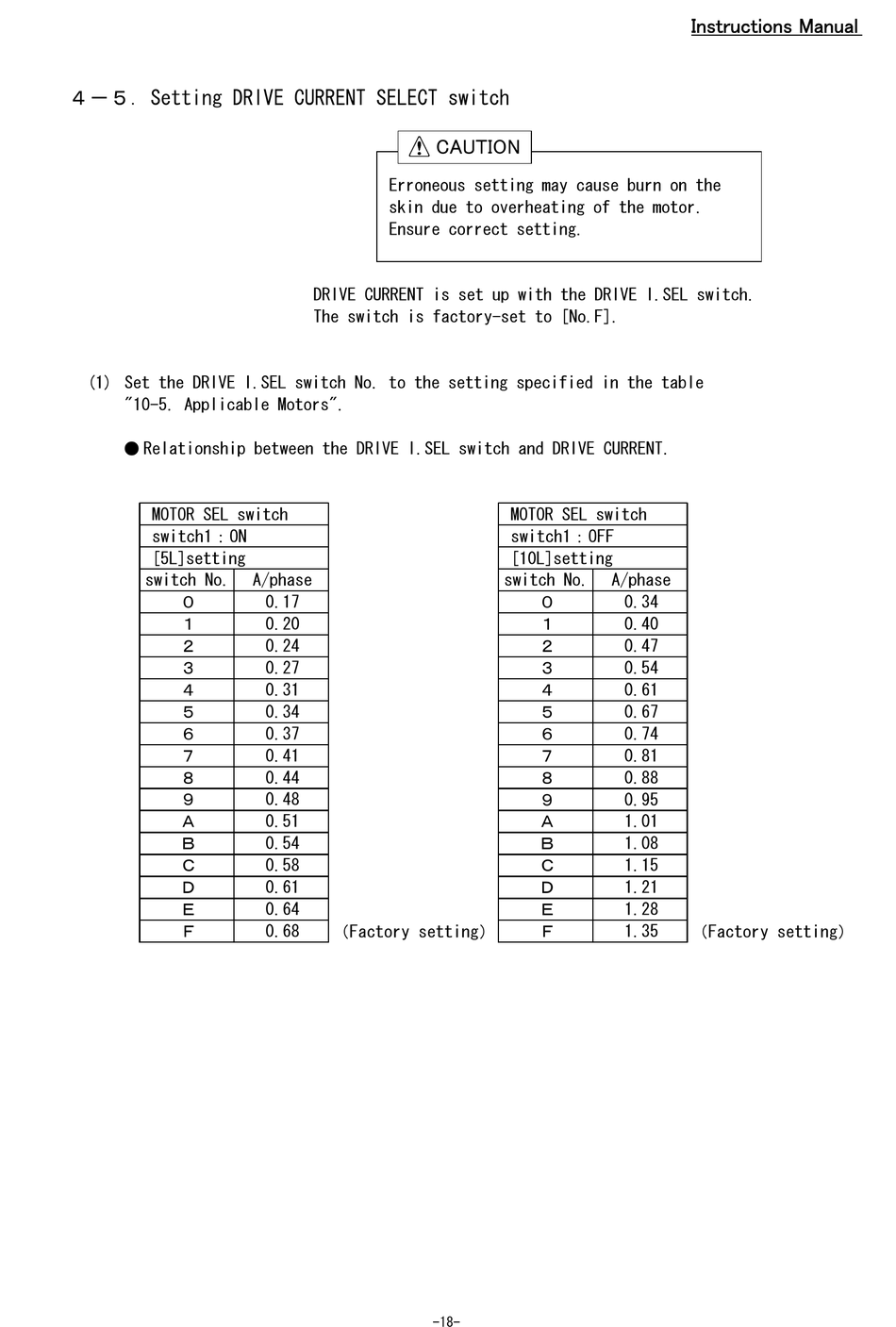

４－５．Setting DRIVE CURRENT SELECT switch
(1) Set the DRIVE I.SEL switch No. to the setting specified in the table
"10-5. Applicable Motors".
● Relationship between the DRIVE I.SEL switch and DRIVE CURRENT.
MOTOR SEL switch
switch1：ON
[5L]setting
switch No.
０
１
２
３
４
５
６
７
８
９
Ａ
Ｂ
Ｃ
Ｄ
Ｅ
Ｆ

Erroneous setting may cause burn on the
skin due to overheating of the motor.
Ensure correct setting.
DRIVE CURRENT is set up with the DRIVE I.SEL switch.
The switch is factory-set to [No.F].
A/phase
0.17
0.20
0.24
0.27
0.31
0.34
0.37
0.41
0.44
0.48
0.51
0.54
0.58
0.61
0.64
0.68 （Factory setting）
I
MOTOR SEL switch
switch1：OFF
[10L]setting
switch No.
０
１
２
３
４
５
６
７
８
９
Ａ
Ｂ
Ｃ
Ｄ
Ｅ
Ｆ
