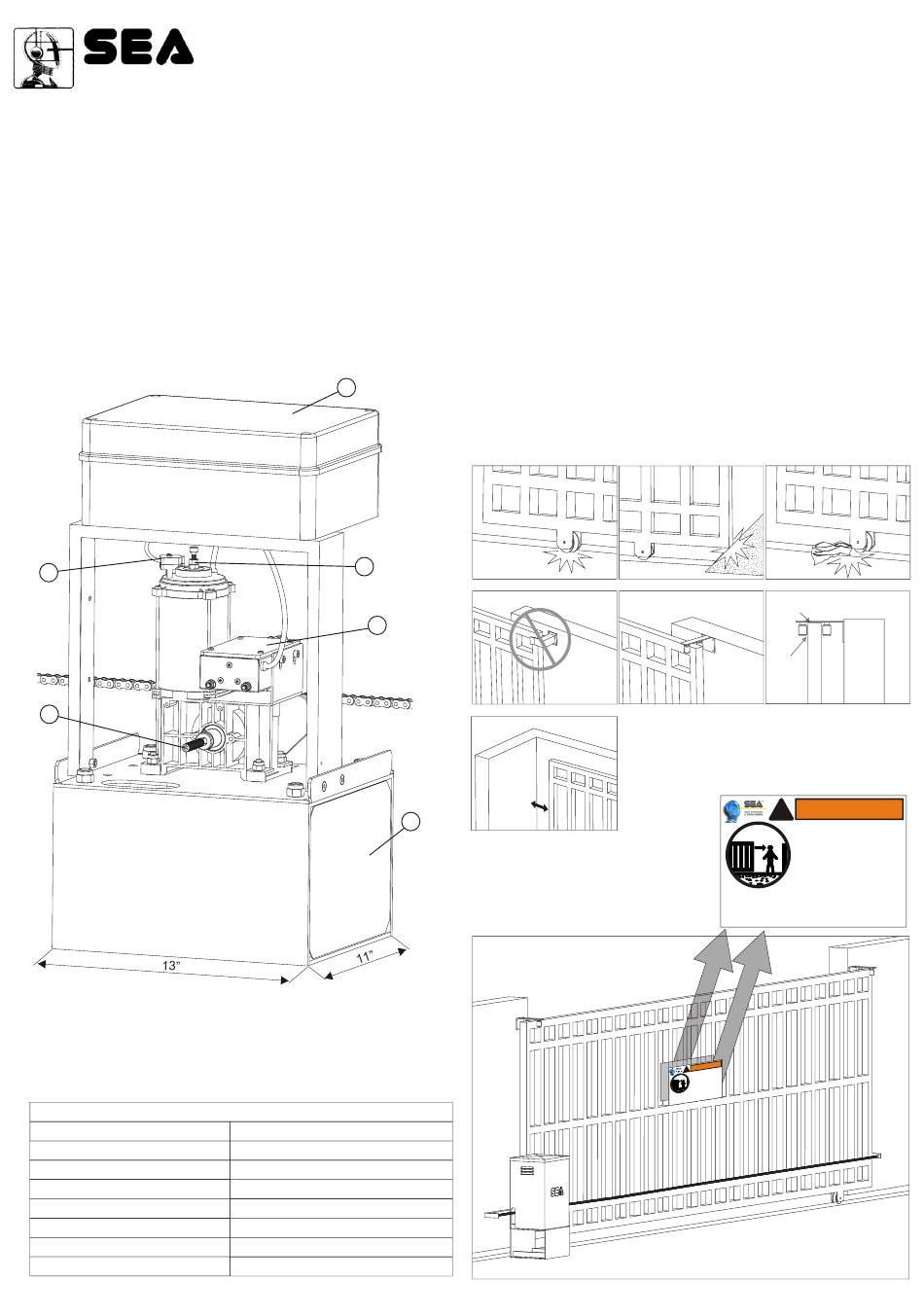

SEA TAURUS Fitting And Connection Instructions

Opening
Electronic Systems

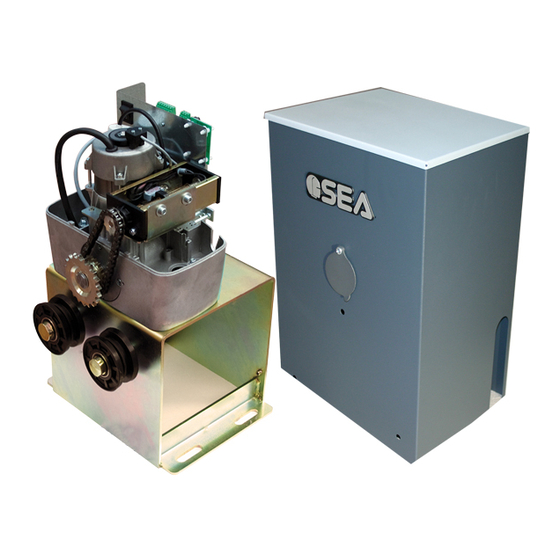

An electro-mechanical reduction operator within an aluminium
casing.
The TAURUS can be supplied with either:
A mechanic friction clutch or electronic sensing device as
methods of limiting the motor torque.
The gates open & close stop limits are accurately archivied by
mechanically triggering the on-board micro-switch.
Manual release is quickly archieved by operating a key operated
manual release system.
The microprocessor control unit has a choice of automatic or
semi-automatic control logic and will provide all normal safety
logic functions.
2 2
6 6
1 Adjusting screw mechanical clutch
2 Magnetic encoder
3 Limit switch
TECHNICAL DATA
Power supply
Power
Absorbed current
Thrust force
Capacitor
Gate speed (pinion Z20)
Use rate
Housing protection
REV 00 - 10/2003
FITTING AND CONNECTION INSTRUCTIONS
5 5
1 1
3 3
4 4
4 Foundation plate
5 Electronic control unit
6 Release
115 V (±5%) 50/60 Hz
200 W
2 A
12 Nm
35uF
10,2 In/sec
30 %
IP 55
TAURUS
Gate arrangement
The first thing to check is that the gate is in good running order as
follows:
a) The gate is rigid and straight and runs smoothly throughout its travel.
b) that the inferior sliding guide-rail is perfectly straight and horizontal to
avoid a derailment of the gate (fig. 1); furthermore it must be free of
irregularities and foreign bodies which could obstruct the normal run of
the gate (fig. 2 and 3).
c) that the upper guides are not fixed (fig. 4) but furnished with rollers
which allow the sliding of the gate without difficulties (fig. 5 and 6).
d) that the distance between the end of the gate ( in maximum opening
position) and the eventual wall must be at least of 5 inches (fig. 7).
e) The lower support wheels have sealed bearings or grease points.
f) The top guide must be manufactured and installed so that the gate is
perfectly upright.
g) Physical gate stops must be fitted to prevent the gate coming out of
its guides and track.
Fig. 1 Fig. 2
Fig. 4
Fig. 7
5 "
Important: Install the warning signs
which informs the pedestrians about
the danger they run when passing or
resting in the environment of the gate.
Fig. 3
Fig. 5
1/4"
1/2"
WARNING
! !
Serious Injury Or
Death To
Pedestrians May
Result If This
Operator Is Used
In This Manner
- Persons are to keep clear! The gate can move without prior WARNING.
- Do not allow children to operate the gate or play in the gate area
- Persons are to operate the gate only when the gate area is sight and free of
people and obstructions
- This entrance is for vehicles only. Pedestrians must use separate entrance
I G
R N
N
W A
! ! O r
I j r u y
n
i u s
Se o r
e t T o
D a h
a y
s M
e t a s i n
r
e d i s
P f Th
e u t l I
s e d
R I Us
t r s
Op r e a o
a n e r
n
Th s i M
n WAR N N I G.
I th t ir o p u r o
ve w i ea
e ate an c mo n e th g ate r a d f e o e f
eep c ar e ! h T g r p ay i l s i t s h n a r
s ro k e t l e e ate t h g o ate r e i a g
so n a n o oa pt er en the g a
- Pe r c l he i d r t e on y wh l e en r ce
o n a o l o t lw e e th g a t a t t an
- D s aro o pt er a u u s s e e p ar
- Per n o e t c i s e r an st i s m s t
s s r t u t o n nl Ped
eo e anb l d o e c h l es o y.
p p c i s f r v o i
- T s e n r t a n e
h i
Fig. 6
Fig. 8
