Adjustable Windshield System
Please read this entire manual before proceeding with installation.
What is in the box:
(1) MadStad windshield

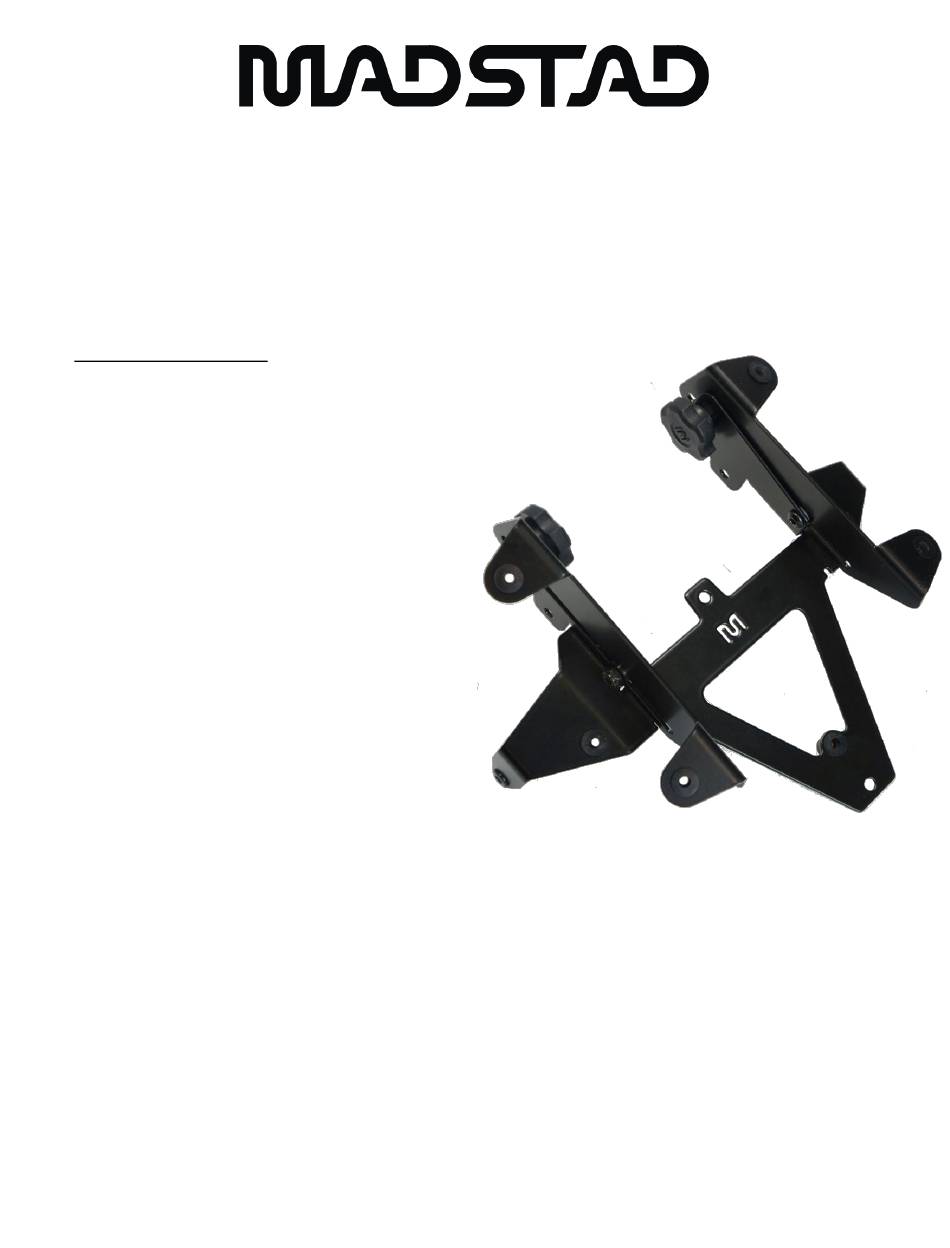

(1) Adjustable brackets set
(1) Acrylic rear deflector
(3) M5 x 25 Phillips screws
(3) M5 plastic flat washers
(1) soft rubber washers
(1) 1/4" thick black plastic spacer
(2) M5 x 16 truss screws
(2) M5 split lock washers
(4) M5 T-Screws
(4) 3/8L rubber washers
(4) soft rubber washers
Tools Needed:
- M4 Allen wrench
Triumph Tiger 1200
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MadStad Engineering MadStad
Summary of Contents for MadStad Engineering MadStad
- Page 1 Adjustable Windshield System Triumph Tiger 1200 Please read this entire manual before proceeding with installation. What is in the box: (1) MadStad windshield (1) Adjustable brackets set (1) Acrylic rear deflector (3) M5 x 25 Phillips screws (3) M5 plastic flat washers (1) soft rubber washers (1) 1/4"...
- Page 2 STEP 1: Remove the factory shield and plastic bracket Remove the factory windshield, it will not be used and will not fit the MadStad adjustable brackets. Also remove the plastic bracket that the windshield was attached to. Three screws hold this on: two at the sides screwed in horizontally into the metal pivoting arch, and one at the bottom center.
- Page 3 STEP 3: Attach the rear deflector Once the brackets are installed then the short acrylic deflector slides onto the brackets via the slots. There are three rubber well nuts in the bracket plate for attaching this deflector. Before sliding it on you will take one of the M5 x 25 Phillips screws with a flat plastic washer under the head and run it through the bottom-center deflector hole, then put the 1/4"...
- Page 4 Once all four screws are in the shield, set it over the MadStad brackets and insert each screw into its corresponding rubber well nut on the brackets.
- Page 5 The final installation should look like the photo above. The electric up/down system still works but you probably won’t need it. Set the shield height and angle as explained in the next section, with the electric system fully down.
- Page 6 Adjusting the Windshield Brackets Although our system will move up and down with the factory bracket, you can control height and angle with the MadStad brackets. The black plastic knobs release the windshield allowing it to slide and tilt. These knobs must always be tightened securely before riding.
- Page 7 Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
- Page 8 MadStad Engineering, Inc. 1451 E. Jefferson St., Brooksville, FL 34601 U.S.A. Phone: 352-848-3646 Fax: 352-240-3911 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! October 22, 2018...
