Adjustable Windshield Mount
Can-Am Ryker
Please read this entire manual before proceeding with installation.
What is in the box:

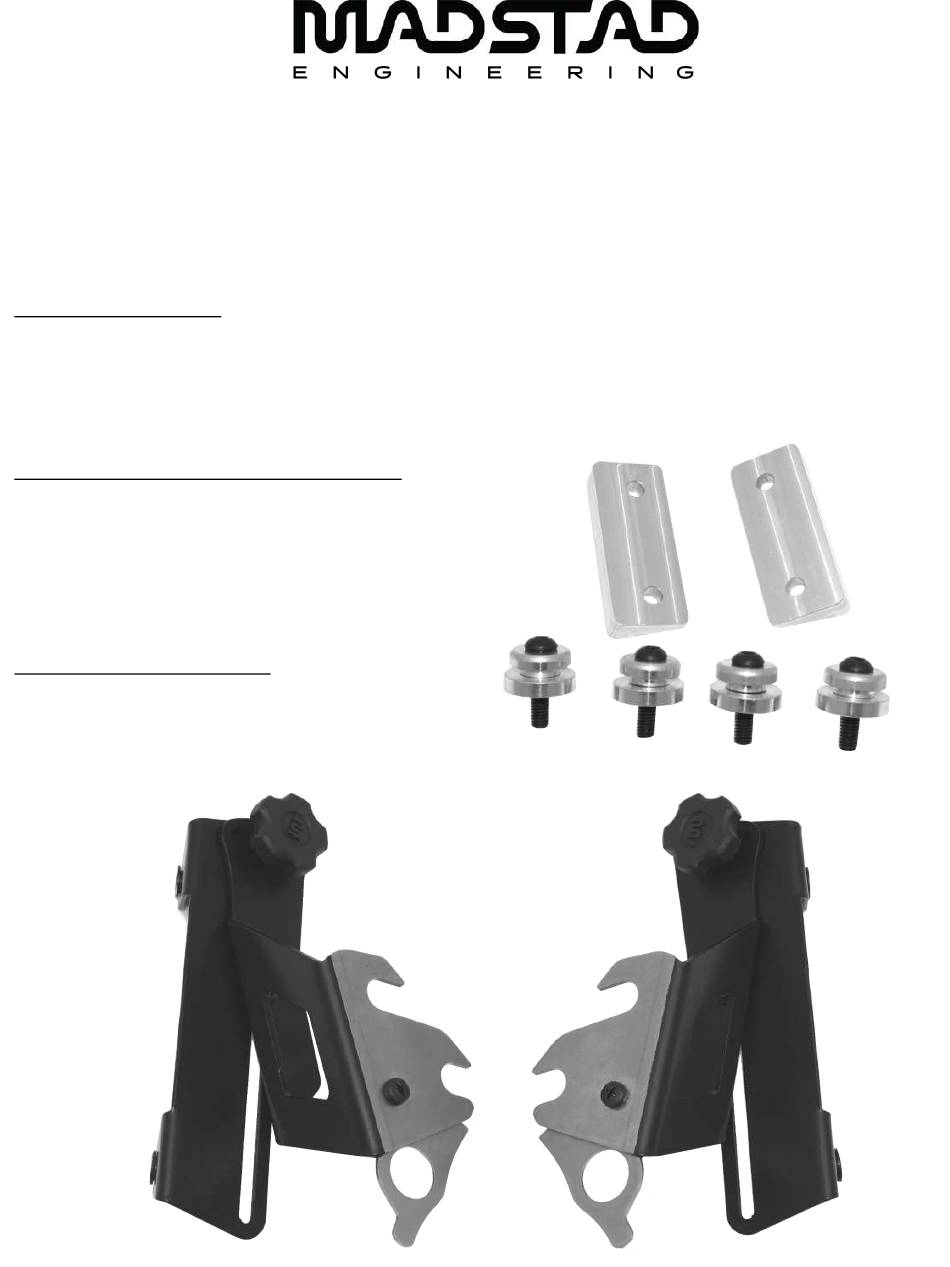

(1) Set of preassembled MadStad adjustable windshield brackets
(2) Aluminum wedge blocks
Pre-assembled quick-release posts:
(4) M6 button screws
(4) Aluminum spool tops
(4) Aluminum spool bottoms
(8) Small o-rings
Windshield Hardware:
(4) M5 x 25 Phillips screws
(4) M5 (#10) plastic flat washers
(4) M5 soft rubber washers

Advertisement

loading
Need help?

Need help?

Do you have a question about the MadStad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MadStad Engineering MadStad

Summary of Contents for MadStad Engineering MadStad

  • Page 1 Adjustable Windshield Mount Can-Am Ryker Please read this entire manual before proceeding with installation. What is in the box: (1) Set of preassembled MadStad adjustable windshield brackets (2) Aluminum wedge blocks Pre-assembled quick-release posts: (4) M6 button screws (4) Aluminum spool tops...
  • Page 2 Tools Needed: - 4 mm Allen wrench (hex key), ball-end if possible - #2 Phillips screwdriver Step 1: The MadStad system attaches to the screw holes in the front of your instrument cluster as seen here. You will be attaching...
  • Page 3 Step 2: The adjustable brackets get attached to the quick-release posts as shown in the photo at right. Each bracket has a spring-loaded locking key. Make sure that the locking keys are rotated all the way to the front of the bike as seen here. Once the brackets are fully seated onto the posts, lift and rotate the locking key so that the round hole fits...

  • Page 4: Windshield Installation

    MadStad brackets. You will also want to make sure the brackets are both set in the same position (fully down and tilted back for example).
  • Page 5 Adjusting the MadStad Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knob screws must always be tightened securely before riding. DO NOT attempt to adjust the brackets while riding! You must come to a complete stop before making adjustments.
  • Page 6 Pivot Screws The MadStad mount has a pivot screw on each set of brackets, located near the center of the bottom bracket. If you wish to adjust the tightness of this pivot screw or move it to an alternate pivot position, use a 4mm Allen wrench and a 10mm socket or wrench to make the adjustment.

  • Page 7: Returns And Warranty

    Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
