Adjustable Windshield System
Honda CB500X
Please read this entire manual before proceeding with installation.
What is in the box:

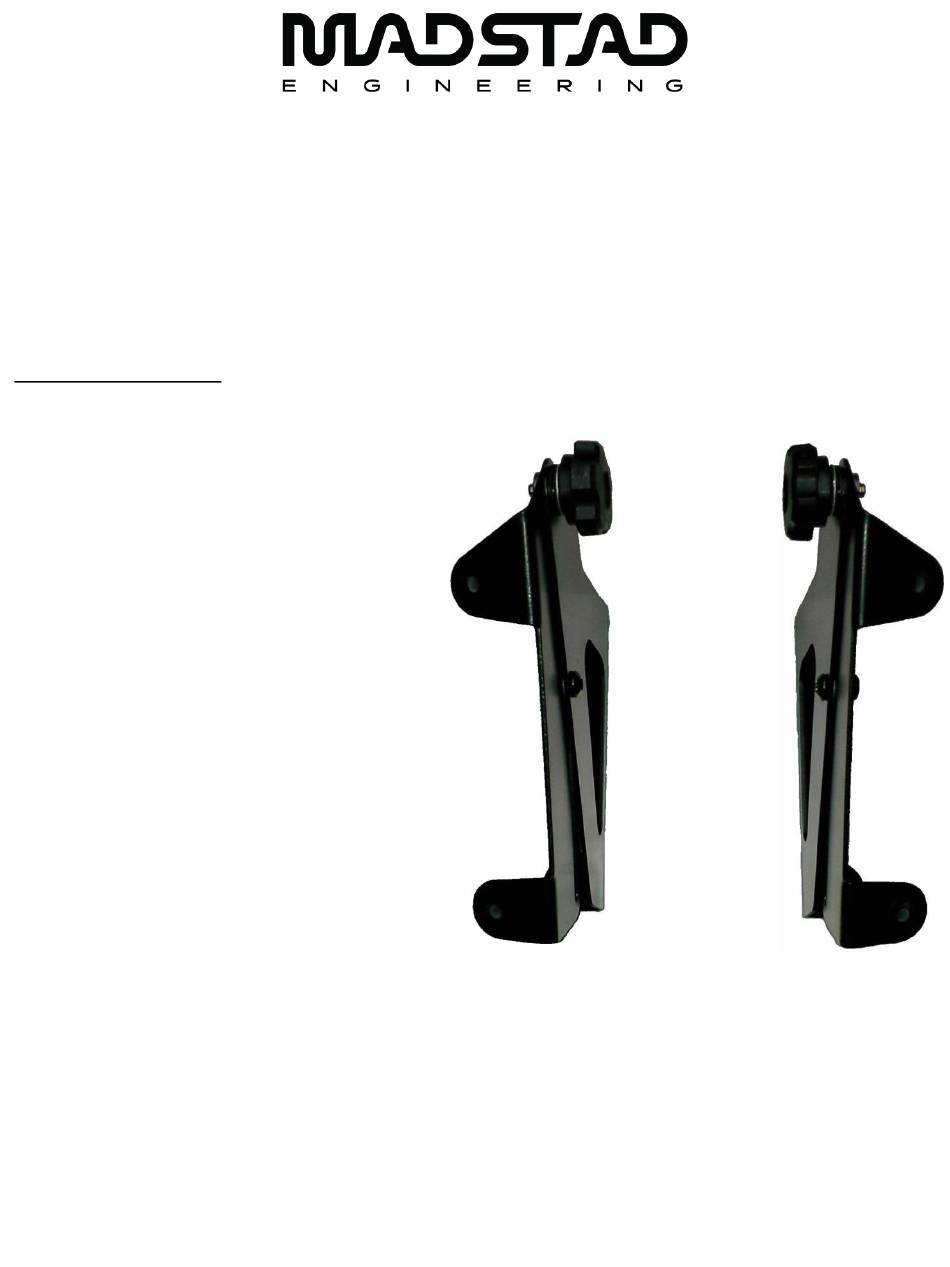

(1) MadStad CB500X Brackets Kit
(4) M5 x 25 T-screws
(4) 3/8L rubber washers
(4) soft rubber washers
(4) M5 well nuts
(4) Large silver flat washers
(2) Side deflectors
(2) black plastic spacers
(2) M6 x 50 screws
(2) M6 x 16 screws
(4) M6 flat washers
(2) Thin rubber 3/4" washers
Tools Needed:
- 5 mm Allen wrench (hex key)
- 4 mm Allen wrench
- #2 Phillips screwdriver
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MadStad Engineering MadStad
Summary of Contents for MadStad Engineering MadStad
- Page 1 Adjustable Windshield System Honda CB500X Please read this entire manual before proceeding with installation. What is in the box: (1) MadStad CB500X Brackets Kit (4) M5 x 25 T-screws (4) 3/8L rubber washers (4) soft rubber washers (4) M5 well nuts...
- Page 2 MadStad adjustable brackets are designed to bolt to your bike with a new windshield that is fully adjustable so you can change the windshield height and angle without getting off of the bike, and without any tools. Separating the shield from the bike is critical because it allows air to flow under the bottom edge which dramatically improves airflow smoothness.
- Page 3 Bracket Installation: The MadStad brackets attach to the factory windshield mounting brackets as shown in the photo on page 2. However, replace the factory rubber well nuts with the new well nuts and large flat washers supplied in your kit. The washers go onto the well nuts beneath the factory bracket (see image below) before you tighten the screws into them and will hold the well nuts more securely.
- Page 4 Windshield Installation Once bracket adjustment is complete, the windshield attaches to the brackets with T-screws and rubber washers as shown at right. Insert all four T-screws and washers into the four windshield holes as shown at right before attempting to attach the windshield onto the RoboBrackets.
- Page 5 Save all of these screws, they will not be used for the MadStad deflectors. All of the hardware you need for the side deflectors is provided in this kit. At the...
- Page 6 PIVOT SCREWS The MadStad mount has a pivot screw on each set of brackets, located near the center of the bottom bracket. A nylon lock nut keeps the screw snugly in place, yet allows the brackets to slide back and forth. It is adjusted at the factory to have a minimum of play yet still allow the brackets to move.
- Page 7 If you are not satisfied with your new windshield system you have 30 days to return it. Full details are available on our web site at www.madstad.com. If purchased from a dealer then please contact the dealer for their return policy.
- Page 8 MadStad Engineering, Inc. 1451 E. Jefferson St. Brooksville, FL 34601 U.S.A. Phone: 352-848-3646 Fax: 352-240-3911 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! April 12, 2018...
