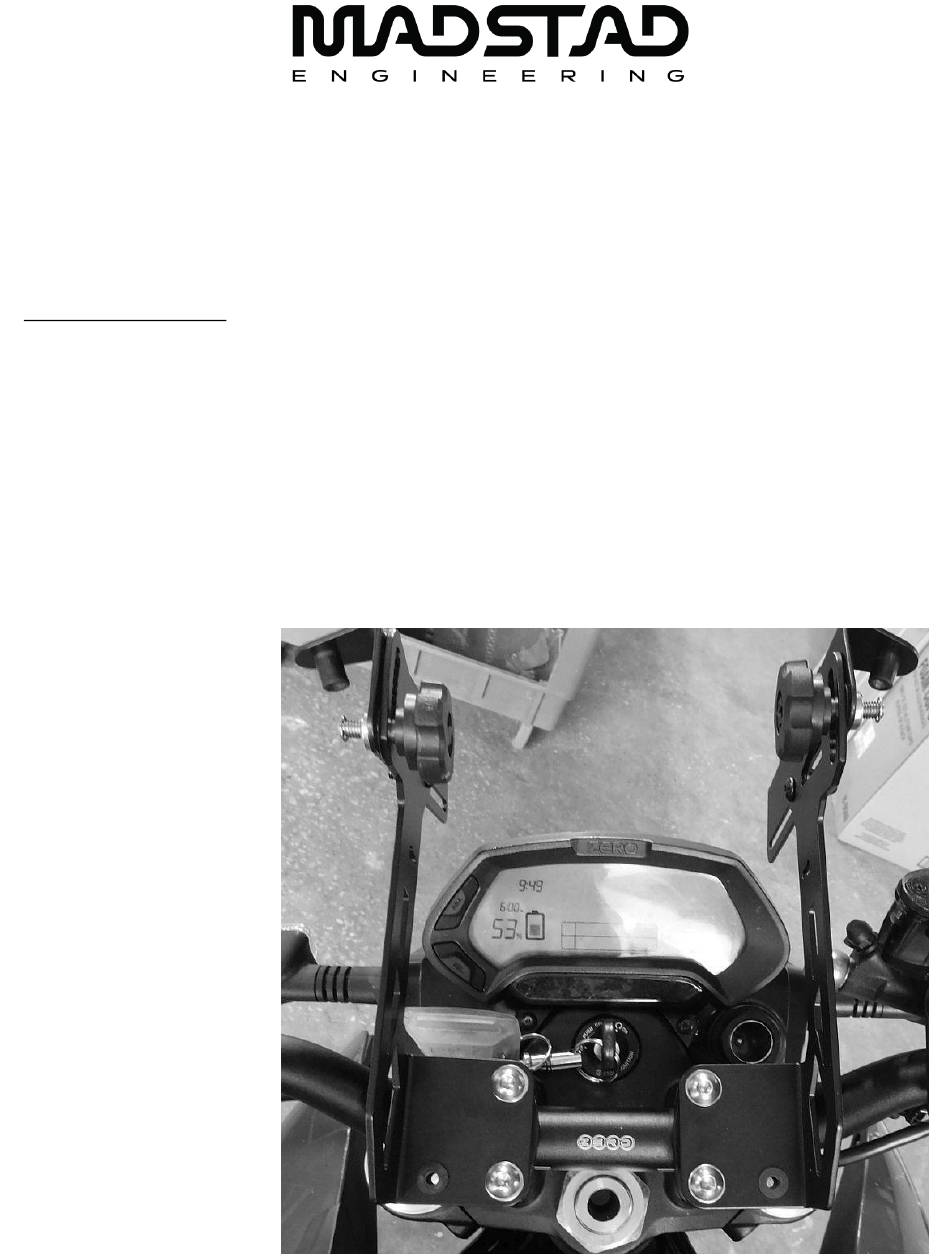

Adjustable Windshield System
Please read this entire manual before proceeding with installation.
What is in the box:
(1) MadStad Brackets Kit
(4) Aluminum spacers
(4) M8 x 50 screws
(8) M8 flat washers
(1) Center deflector with M5 well nuts inserted
(2) M5 x 16 screws
(2) plastic flat washers
Zero S / SR / DS / DSR
(4) M5 x 25 T-screws
(4) hard rubber washers
(4) soft rubber washers
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MadStad Engineering MadStad
Summary of Contents for MadStad Engineering MadStad
- Page 1 Zero S / SR / DS / DSR Please read this entire manual before proceeding with installation. What is in the box: (4) M5 x 25 T-screws (1) MadStad Brackets Kit (4) hard rubber washers (4) Aluminum spacers (4) soft rubber washers...
- Page 2 Or, pre-assemble the new long bolts with washers right onto the MadStad bracket as shown at right. Just hold the bolts and washers in place so they don’t fall out when you go to set them into the spacers...
- Page 3 STEP 4 – Repeat steps 1 and 2 for the other bar clamp and brackets. STEP 5 – Install the center deflector. This goes underneath the MadStad brackets and is fastened with the small T-screws and flat washers from above, as...
- Page 4 (as shown the diagram at right) before attaching the windshield to the MadStad brackets. The well nuts are flexible and the shield holes are oversized so you can nudge the shield and screws around to get them into the well nuts. Once that’s done go ahead and...
- Page 5 Adjusting the MadStad Knob Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knob screws must always be tightened securely before riding. DO NOT attempt to adjust the brackets while riding! You must come to a complete stop before making adjustments.
- Page 6 PIVOT SCREWS The MadStad mount has a pivot screw on each set of brackets, located near the center of the bottom bracket. A nylon lock nut keeps the screw snugly in place, yet allows the brackets to slide back and forth. It is adjusted at the factory to have a minimum of play yet still allow the brackets to move.
- Page 7 Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
- Page 8 MadStad Engineering, Inc. 1451 E. Jefferson St. Brooksville, FL 34601 Phone: 352-848-3646 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! April 12, 2018...
