Adjustable Windshield System
Please read this entire manual before proceeding with installation.

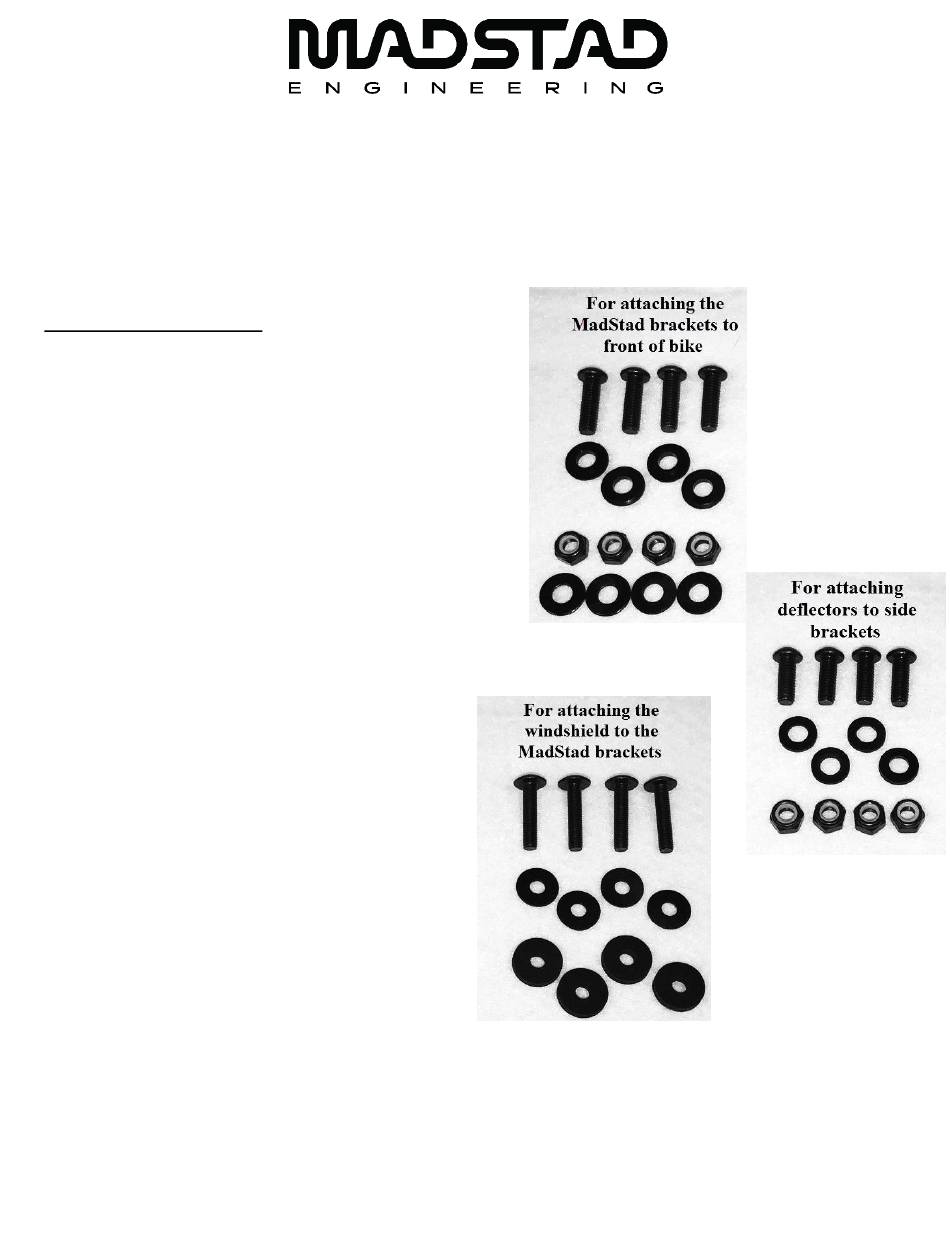

What is in the box:
(1) Set of preassembled MadStad brackets
(4) M6 x 20 screws
(4) M6 metal flat washers
(4) VCC plastic shoulder washers
(4) M6 nylock nuts
(2) Side deflector brackets
(2) Side deflectors (acrylic)
(4) M6 x 16 screws
(4) M6 nylock nuts
(4) M6 plastic flat washers
(4) M5 truss screws
(4) M5 black plastic washers
(4) soft rubber washers
Tools Needed:
- 4 mm Allen wrench (hex key)
- 10 mm wrench (open-end, box, or small adjustable crescent)
- #2 Phillips screwdriver
Honda NC700X 2016-up
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MadStad Engineering MadStad
Summary of Contents for MadStad Engineering MadStad
- Page 1 Adjustable Windshield System Honda NC700X 2016-up Please read this entire manual before proceeding with installation. What is in the box: (1) Set of preassembled MadStad brackets (4) M6 x 20 screws (4) M6 metal flat washers (4) VCC plastic shoulder washers...
- Page 2 Also remove the rubber well nuts that the windshield was screwed into. STEP 2: Put the four MadStad plastic shoulder washers in the holes where the rubber well nuts used to be. (See photo below.)
- Page 3 STEP 3: Attach the MadStad adjustable brackets AND the side deflector brackets together to the factory windshield mounting holes. The side deflector brackets go beneath the adjustable windshield brackets (see photo below) and the longer M6 x 20 mm screws are used through those brackets and are fastened on with metal flat washers and nylock nuts behind the factory mounting holes (white arrows in photo at right.) Check the...
- Page 4 Side Deflectors Your kit came with two acrylic side deflectors that attach to the front of the deflector brackets. Attach the deflectors to the front of the brackets using the M6 x 16 screws with washers and lock nuts as shown below Clutch (left) side deflector as seen from the front of the bike.
- Page 5 Windshield Installation Once your windshield brackets and side deflectors are attached, the shield attaches to the four rubber well nuts as indicated below. Attach the windshield with Phillips truss screws, plastic flat washers and rubber washers as shown below. Pre-install all four screws and washers into the windshield before attaching onto the brackets.
- Page 6 Adjusting the MadStad Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knobs must always be tightened securely before riding and DO NOT attempt to adjust the brackets while riding! Also make sure that you do not set the windshield in...
- Page 7 Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
- Page 8 MadStad Engineering, Inc. 1451 E. Jefferson Street Brooksville, FL 34601 U.S.A. Phone: 352-848-3646 Fax: 352-240-3911 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! April 12, 2018...
