Adjustable Windshield System
KTM 790 Adventure / R
Please read this entire manual before proceeding with installation.

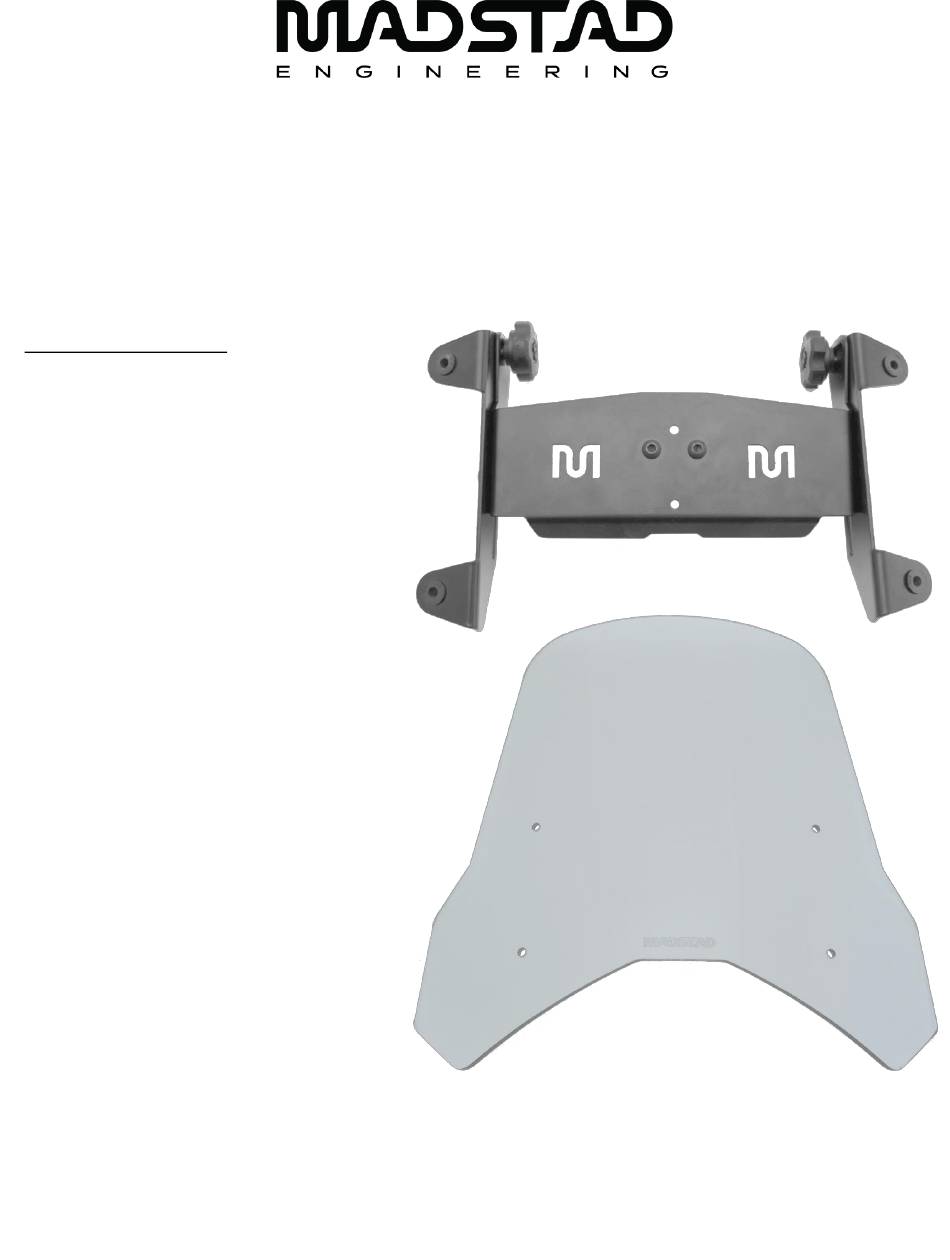

What is in the box:
(1) MadStad adjustable brackets
(2) M5 x 30 pan Phillips screws
(2) M5 lock washers
(2) M5 metal flat washers
(1) Windshield
(4) M5 truss Phillips screws
(4) 3/8L rubber washers
(4) soft rubber washers
Tools Needed:
- #2 Phillips screwdriver
The MadStad adjustable windshield brackets are designed to bolt to the factory
windshield mounting points. The MadStad windshield then attaches to the front
of the adjustable brackets. You will NOT be able to use your stock windshield,
it is not compatible with the MadStad system.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MadStad Engineering MadStad
Summary of Contents for MadStad Engineering MadStad
- Page 1 Tools Needed: - #2 Phillips screwdriver The MadStad adjustable windshield brackets are designed to bolt to the factory windshield mounting points. The MadStad windshield then attaches to the front of the adjustable brackets. You will NOT be able to use your stock windshield,...
- Page 2 These screws are going to thread into the two recessed holes that are used for the factory shield as seen below. The MadStad bracket assembly gets placed onto the factory shield mount with the two short screws that are...
- Page 3 Windshield Installation The windshield attaches to the front of the brackets with T-screws and rubber washers as shown at right. Make sure the adjustable front brackets are both set at the same height and angle. You can loosen the adjustment knobs a turn or two if needed to set them up evenly.
- Page 4 Adjusting the Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knob screws must always be tightened securely before riding. DO NOT attempt to adjust the brackets while riding! You must come to a complete stop before making adjustments.
- Page 5 If you are not satisfied with your new windshield system you have 30 days to return it. Full details are available on our web site at www.madstad.com. If purchased from a dealer then please contact the dealer for their return policy.
- Page 6 NOTES:...
- Page 7 NOTES:...
- Page 8 MadStad Engineering, Inc. 1451 East Jefferson Street Brooksville, Florida 34601 Phone: 352-848-3649 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! September 10, 2019...
