Adjustable Windshield Mount
Honda CTX700D
Please read this entire manual before proceeding with installation.

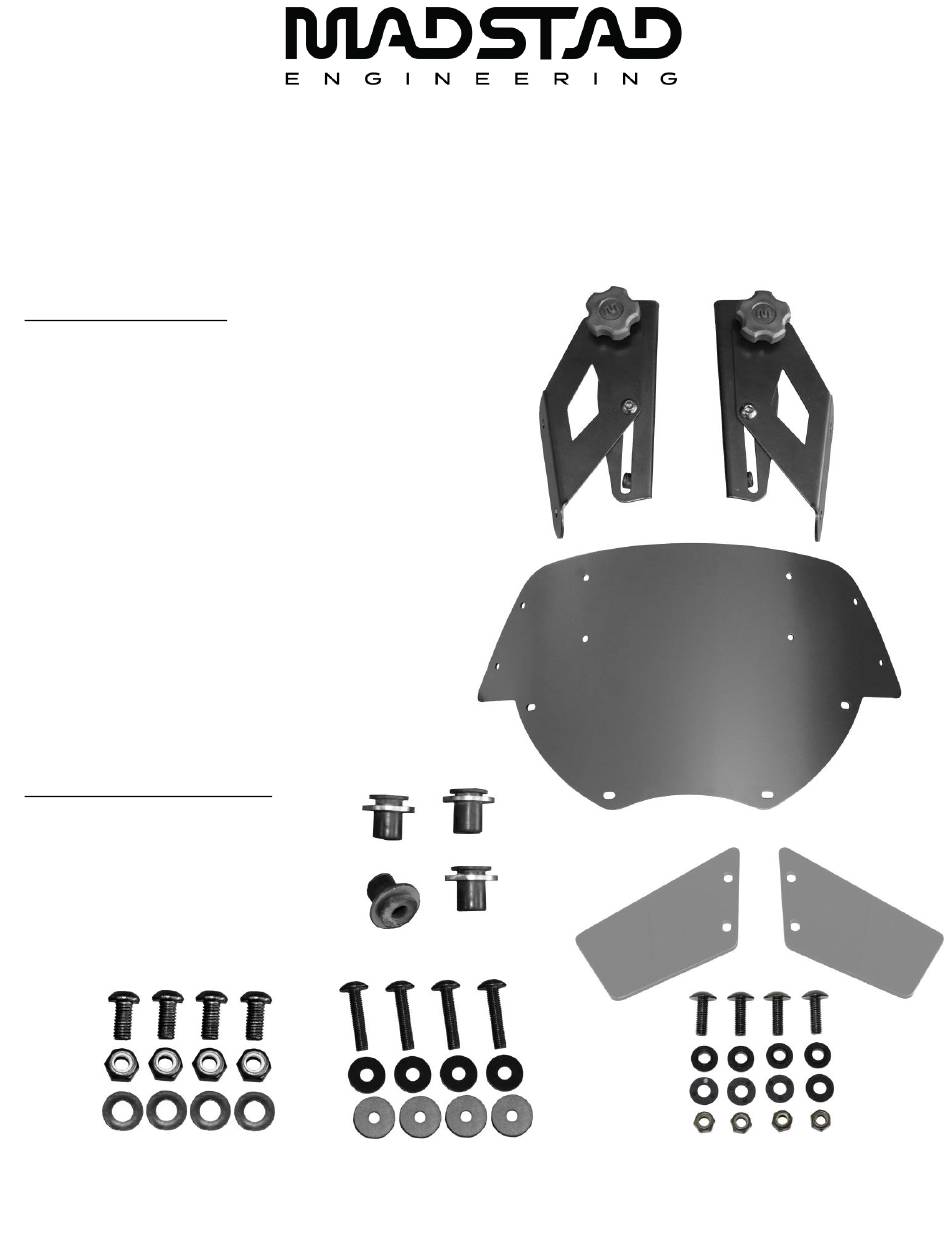

What is in the box:
(1) Set of MadStad adjustable brackets
(1) Black aluminum base plate
(4) M6 x 12 mounting screws
(4) M6 flat washers
(4) M6 lock nuts
(4) Rubber well nuts with washers
(2) Plastic side deflectors
(4) M5 x 16 truss screws
(4) M5 nylock nuts
(4) #10 plastic flat washers
(4) #10 plastic shoulder washers
Windshield mounting:
(4) M5 Phillips screws
(4) M5 plastic washers
(4) soft rubber washers
Advertisement
Table of Contents
Related Manuals for MadStad Engineering MadStad
Summary of Contents for MadStad Engineering MadStad
- Page 1 Adjustable Windshield Mount Honda CTX700D Please read this entire manual before proceeding with installation. What is in the box: (1) Set of MadStad adjustable brackets (1) Black aluminum base plate (4) M6 x 12 mounting screws (4) M6 flat washers...
- Page 2 The adjustable brackets bolt to the MadStad base plate as shown below. Use the four M6 x 12 screws with washers and lock nuts as shown in the diagram at right.
- Page 3 Side Deflector Setup: The side deflectors are installed loosely and will be adjusted after the base plate goes onto the bike. It is easier to install them now because of the tight clearances behind the plate. Each side deflector is attached with an M5 screw and shoulder washer (the 2- level washer) in the front and the plastic flat washer and lock nut on the back as shown in the diagram above.
- Page 4 Try and keep the flat washers tight up against the back of the factory hole. Base Plate Attachment: Place the MadStad base plate over the four well nuts then take the factory screws and tighten them by hand. DO NOT OVERTIGHTEN, you could damage the well nuts.
- Page 5 As with the base plate screws, do not overtighten the windshield screws. The rubber well nuts will swell up and when about 1/4 inch of the screw comes out the back side, the windshield should be snug and secure. Adjusting the Brackets The knob screws release the brackets allowing the windshield to slide and tilt.
- Page 6 PIVOT SCREWS The MadStad mount has a pivot screw on each set of brackets, located near the center of the bottom bracket. A nylon lock nut keeps the screw snugly in place, yet allows the brackets to slide back and forth. It is adjusted at the factory to have a minimum of play yet still allow the brackets to move.
- Page 7 Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
- Page 8 MadStad Engineering, Inc. 1451 East Jefferson St. Brooksville, Florida 34601 USA Phone: 352-848-3646 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! December 30, 2018...
