Adjustable Windshield Mount
KTM 990 SMT
Please read this entire manual before proceeding with installation.

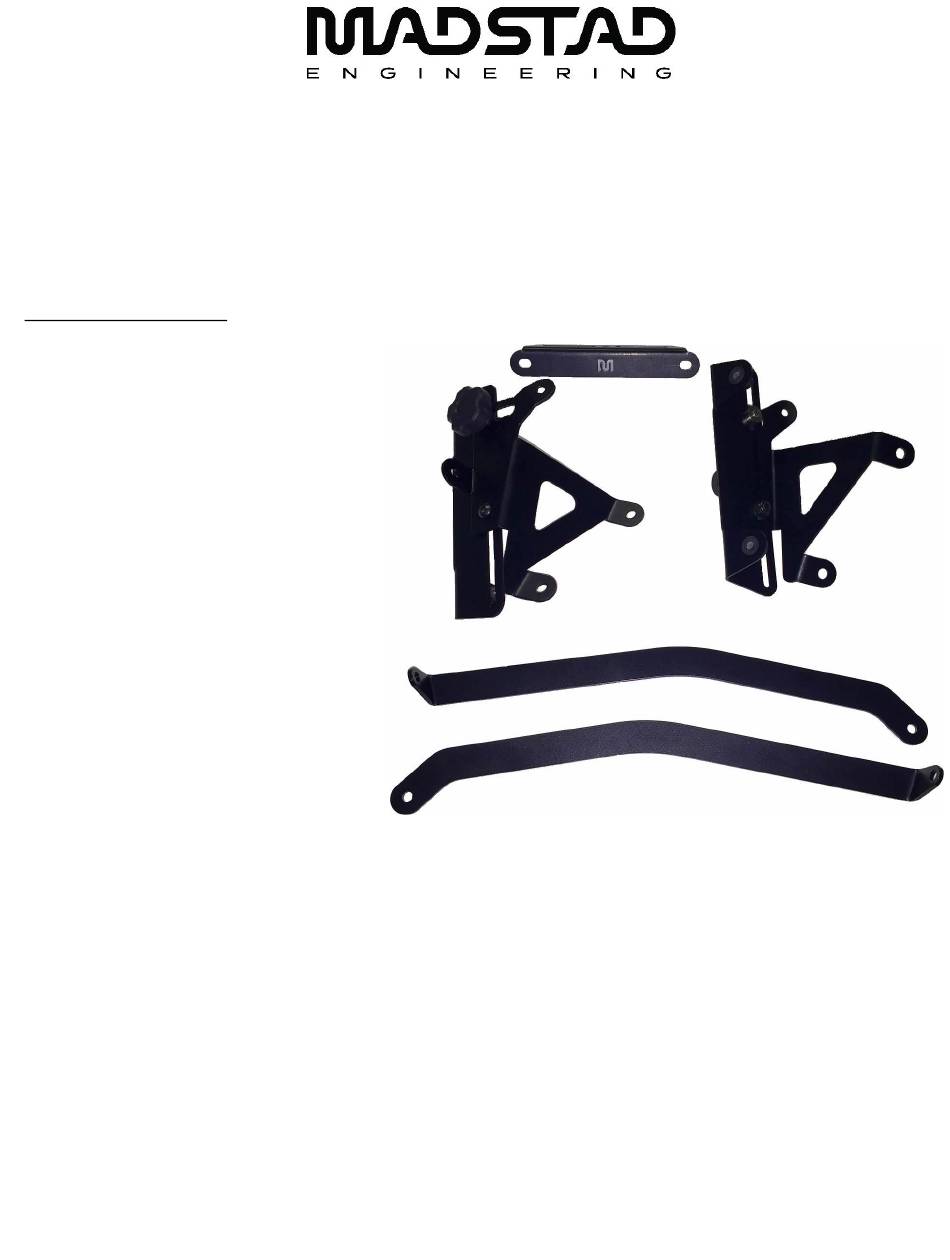

What is in the box:
(1) 990 SMT Brackets Kit
(1) 990 SMT Cross Brace
(2) 990 SMT Rear Braces
(4) M6 x 12 screws
(2) M6 x 16 screws
(2) M6 x 20 screws
(4) M6 nylock nuts
(6) M6 flat washers
(2) M6 split lock washers
(4) M5 x 12 Phillips screws
(4) M5 split lock washers
(1) 4mm Allen wrench
(4) M5 x 25 truss screws
(4) M5 black plastic washers
(4) soft rubber washers
These MadStad adjustable brackets are designed to bolt to the factory
windshield holes. The MadStad windshield then attaches to the front of the
brackets with quick-removal T-screws. Loosening two adjustment knobs on the
brackets allows you to change the windshield height and tilt without getting off
of the bike, and without any tools, and without needing to use the factory height
adjusters.
You will NOT be able to use your stock windshield with these brackets.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MadStad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MadStad Engineering MadStad

Summary of Contents for MadStad Engineering MadStad

  • Page 1 (4) soft rubber washers These MadStad adjustable brackets are designed to bolt to the factory windshield holes. The MadStad windshield then attaches to the front of the brackets with quick-removal T-screws. Loosening two adjustment knobs on the brackets allows you to change the windshield height and tilt without getting off of the bike, and without any tools, and without needing to use the factory height adjusters.

  • Page 2: Installation Overview

    INSTALLATION OVERVIEW The MadStad brackets attach to the stock windshield mounting holes and have two braces that drop down to the lower bodywork. Before you begin installation, remove the stock shield and screws. You will not need them for this installation –...
  • Page 3 Attach each brace to the rearward tab on the MadStad bracket using an M6 x 12 screw, flat washer and lock nut as you did the cross brace (see photo at left). The bottom of the brace attaches to that inside mounting point down by the forks.

  • Page 4: Windshield Installation

    (as shown below). Repeat this for all four screws before attempting to attach the windshield to the MadStad brackets. Lay the shield over the brackets and insert the protruding screws into the rubber well nuts on the brackets.
  • Page 5 Adjusting the MadStad Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knob screws must always be tightened securely before riding. DO NOT attempt to adjust the brackets while riding! You must come to a complete stop before making adjustments.
  • Page 6 Notes on Windshield Angle Most windshields work best when set at a 55-60 degree angle. We have provided an angle guide on the back page of this manual so that you can check and see if your shield is set somewhere in this range. To check your shield angle, your bike should be in an upright position either on a center stand or held up by a helper.

  • Page 7: Returns And Warranty

    Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
  • Page 8 MadStad Engineering, Inc. 1451 E. Jefferson St. Brooksville, FL 34601 U.S.A. Phone: 352-848-3646 Fax: 352-240-3911 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! April 12, 2018...
