Adjustable Windshield System
Yamaha Tracer 900
Please read this entire manual before proceeding with installation.

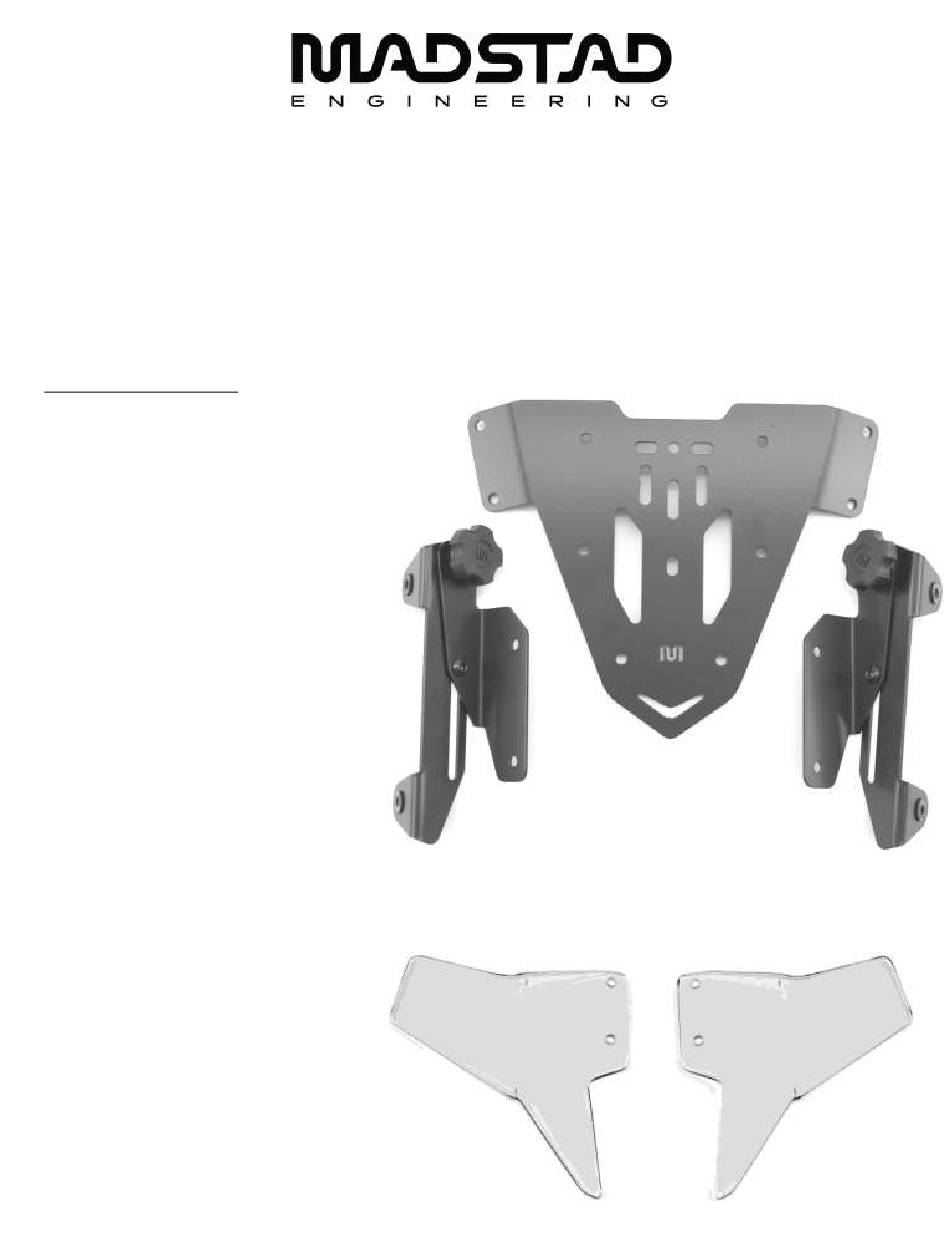

What is in the box:
(1) Base plate
(1) Adjustable brackets set
(4) M6 x 12 button socket screws
(4) M6 metal flat washers
(4) M6 nylock nuts
(3) Black plastic 3/4" tall spacers
(3) M6 x 35 button socket screws
(3) 1/4" split lock washers
(3) Small o-rings
(2) Side deflectors
(4) M6 x 16 button socket screws
(4) M6 plastic flat washers
(4) M6 nylock nuts
(4) M5 Truss screws
(4) M5 plastic flat washers
(4) soft rubber washers
Advertisement
Table of Contents
Related Manuals for MadStad Engineering MadStad
Summary of Contents for MadStad Engineering MadStad
- Page 1 Adjustable Windshield System Yamaha Tracer 900 Please read this entire manual before proceeding with installation. What is in the box: (1) Base plate (1) Adjustable brackets set (4) M6 x 12 button socket screws (4) M6 metal flat washers (4) M6 nylock nuts (3) Black plastic 3/4"...
- Page 2 STEP 3: Attach the MadStad brackets to the base plate Run the M6 x 12 mounting screws through the adjustable brackets then through the base plate and fasten on the back side with flat washers and nylock nuts.
- Page 3 STEP 4: Attach the three base plate mounting screws with spacers The base plate mounting screws and spacers go through the three holes by the bottom of the base plate, indicated by three small arrows in the image at right. Run the long M6 x 35 screws through a lock washer then through the front of the base plate (pictured at right),...
- Page 4 Then lay the shield over the brackets and insert the four screws into the four rubber well nuts on the MadStad brackets. The well nuts are flexible and shield holes are oversized so you can nudge the shield around to align the screws with the holes properly.
- Page 5 Adjusting the MadStad Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knob screws must always be tightened securely before riding. DO NOT attempt to adjust the brackets while riding! You must come to a complete stop before making adjustments.
- Page 6 PIVOT SCREWS The MadStad mount has a pivot screw on each set of brackets, located near the center of the bottom bracket. A nylon lock nut keeps the screw snugly in place, yet allows the brackets to slide back and forth.
- Page 7 Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
- Page 8 MadStad Engineering, Inc. 1451 E. Jefferson St., Brooksville, FL 34601 U.S.A. Phone: 352-848-3646 Fax: 352-240-3911 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! December 7, 2018...
