MadStad Engineering MadStad Manual

Adjustable windshield system for triumph tiger explorer
Hide thumbs Also See for MadStad:

Advertisement

Table of Contents

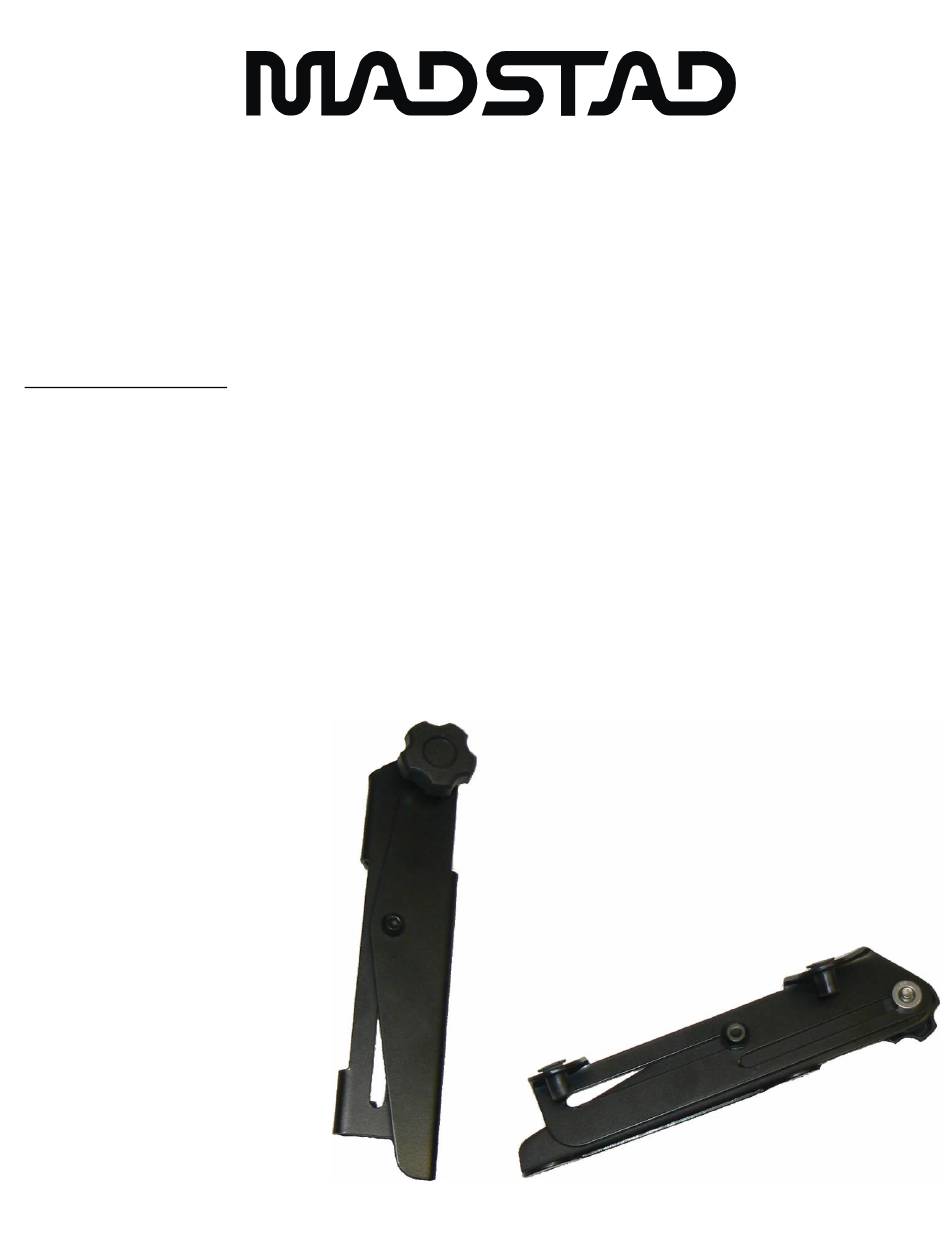

Adjustable Windshield System
Triumph Tiger Explorer
Please read this entire manual before proceeding with installation.

What is in the box:

(1) Set of preassembled MadStad brackets
(1) Aluminum mounting plate
(4) M6 x 12mm screws
(4) M6 flat washers
(4) M6 lock nuts
(4) M5 T-Screws
(12) 1/8" thick rubber washers
(4) M5 nylon flat washers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MadStad and is the answer not in the manual?

Questions and answers

Related Manuals for MadStad Engineering MadStad

Summary of Contents for MadStad Engineering MadStad

  • Page 1 Adjustable Windshield System Triumph Tiger Explorer Please read this entire manual before proceeding with installation. What is in the box: (1) Set of preassembled MadStad brackets (1) Aluminum mounting plate (4) M6 x 12mm screws (4) M6 flat washers (4) M6 lock nuts (4) M5 T-Screws (12) 1/8”...
  • Page 2 MadStad brackets are designed to bolt to a curved surface like the metal adapter plate included in this kit. The new windshield attaches to the top of the brackets with quick-removal T-screws. Loosening the two adjustment knobs on our brackets allows you to change the windshield height without getting off of the bike.
  • Page 3 The knobs on the brackets go to the insides (facing each other) with the knob sides up. When both brackets are installed it should look like the diagram below: The adapter (mounting) plate then attaches to the windshield mount in place of the stock shield.
  • Page 4 Windshield Installation Once bracket adjustment is complete, the windshield attaches to the brackets with T-screws and rubber washers as shown at right. Insert all four T-screws and washers into the four windshield holes as shown at right before attempting to attach the windshield onto the RoboBrackets.
  • Page 5 To try a different windshield position, bring the motorcycle to a complete stop and out of traffic. Loosen the two MadStad knobs or the two factory angle- adjustment knobs and change your setting. (HINT: Don’t change both height and angle at the same time because if your airflow gets worse, you won’t know...
  • Page 6 Notes on Windshield Angle Most windshields work best when set at a 55-60 degree angle. We have provided an angle guide on the back page of this manual so that you can check and see if your shield is set somewhere in this range. To check your shield angle, your bike should be in an upright position on level ground, either on a center stand or held up by a helper.
  • Page 7 Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
  • Page 8 MadStad Engineering, Inc. 1451 E. Jefferson Street Brooksville, Florida 34601 Phone: 352-848-3646 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! April 24, 2018...
