Introduction

The Servo Steering and Lighting Module (SLM) controls the steering and lighting
for servo steered power wheelchairs. It is part of a DX System also comprising a
DX Power Module and a DX Remote as a minimum system.
Left
Indicator
Lights
D X B US
D X
R emote

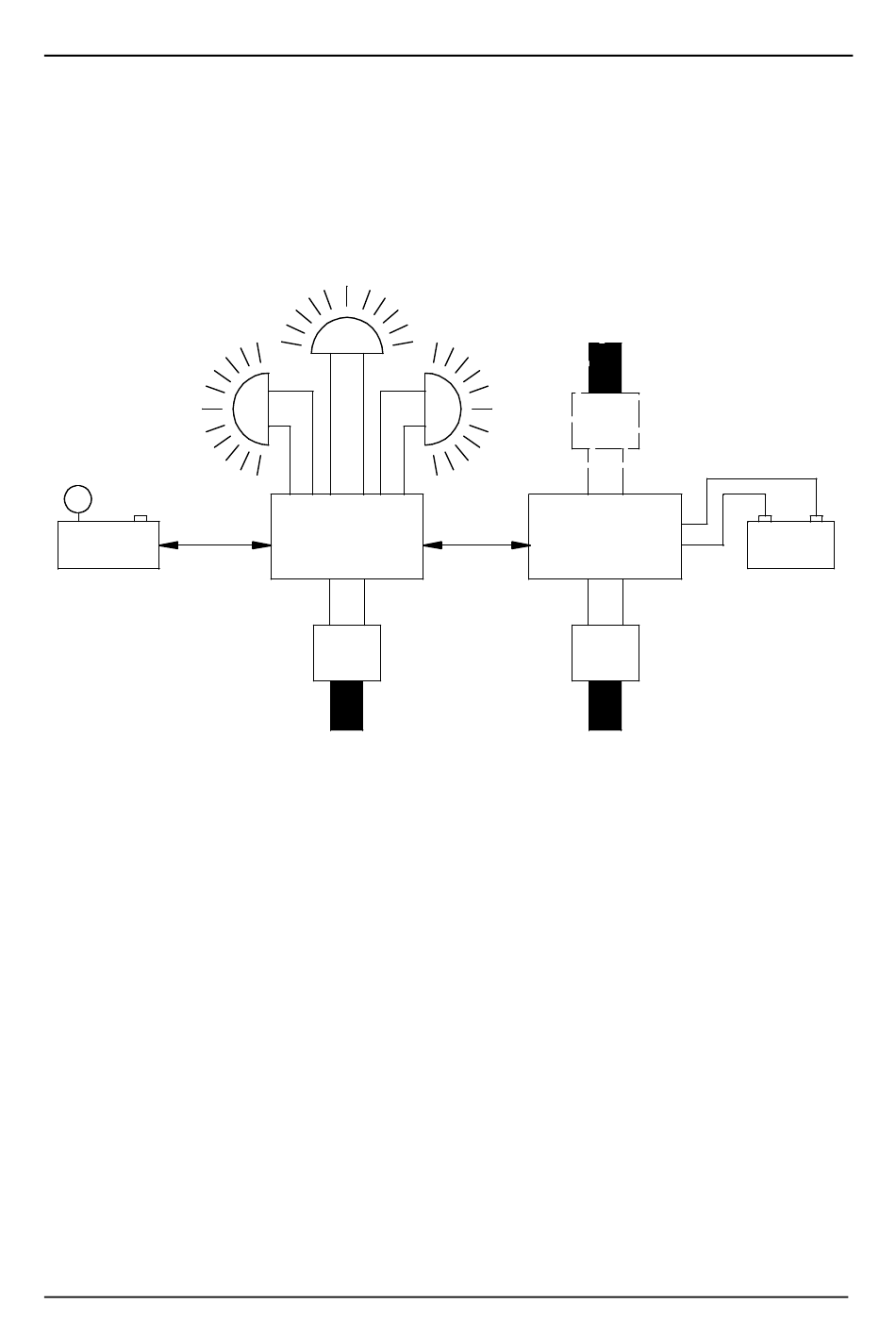

Example of Minimum DX System with the SLM
The servo wheelchair has one motor for steering, and either one or two motors to
provide the driving power of the wheelchair. Both functions are controlled by the
DX Remote. If two drive motors are used then a dual channel DX Power Module
(DX-PM) is required. If only one drive motor is used then a single channel DX
Power Module (DX-PM-S) is required.
The lighting consists of side lights and turn indicators. The indicators can be flashed
together to provide a hazard warning. The lights are also controlled by the DX
Remote.
The SLM has two standard DXBUS connectors so that it may be connected to the
DX System.
This manual and others listed in Section 2 must be read and understood. For more
information contact Dynamic Controls Ltd or an agent as listed in section 12.
1 Introduction
Side Lights
DX BU S
S LM
S e rvo
Mo to r
No. 60027, Issue 4. January 1998
Right
Indicator
Lights
Drive
o p tio n al
Motor 2
DX -PM -(S )
Drive
Motor 1
24 V
Battery
