5.3

SLM Connection with the DX System

5.3.1

Note If only one DXBUS connector is used on the SLM and the remaining

connector is accessible to the wheelchair user, a dummy DXBUS plug should be

fitted to the unused connector. This will comply with ISO 7176.

A dummy DXBUS plug can be made from:

DXBUS Connector Boot

DXBUS Connector Housing

Like all other DX Modules the SLM is connected to the DX system using the

DXBUS. Cables are available in the following standard lengths:

DXBUS CABLE, Straight, 0.1 M

DXBUS CABLE, Straight, 0.3 M

DXBUS CABLE, Straight, 0.5 M

DXBUS CABLE, Straight, 1.0 M

DXBUS CABLE, Straight, 1.5 M

DXBUS cables are also available with ferrites fitted.

Note The order and positioning of the SLM within the DX system is important and

must be based on the rules discussed in section 5.3.2 and 5.3.3.

No. 60027, Issue 4. January 1998

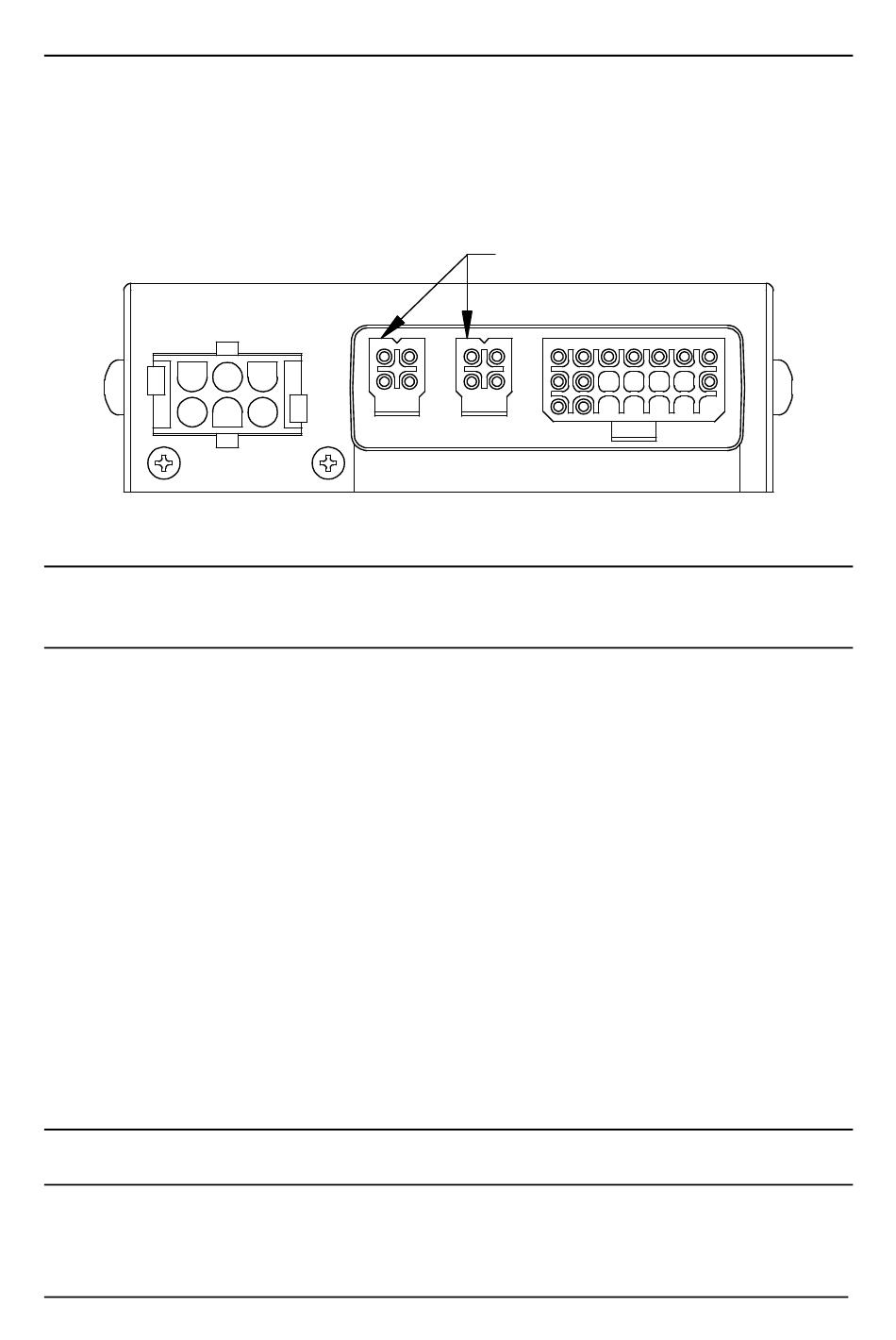

2 x DXBUS Connectors

Part/Order Number GCN 0789

Part/Order Number GCN 0792

Part/Order Number GSM 63001

Part/Order Number GSM 63003

Part/Order Number GSM 63005

Part/Order Number GSM 63010

Part/Order Number GSM 63015

5 Installation
