Wire Sizes
The minimum wire sizes that must be used are :
Function
DXBUS -
Side Lights -
Left Indicator -
Right Indicator -
13.5 V
Hazard In
Hazard Out
Battery -
Steering Power +
DXBUS +
Lighting +
5.4.3

Power Supply from the DXBUS

The DXBUS is suitable for powering low speed servo motors and non TÜV
lighting, where the DX System current requirement is less than the 12 A DXBUS
rating. The DXBUS is not suitable for powering the SLM if TÜV compliance is
required.

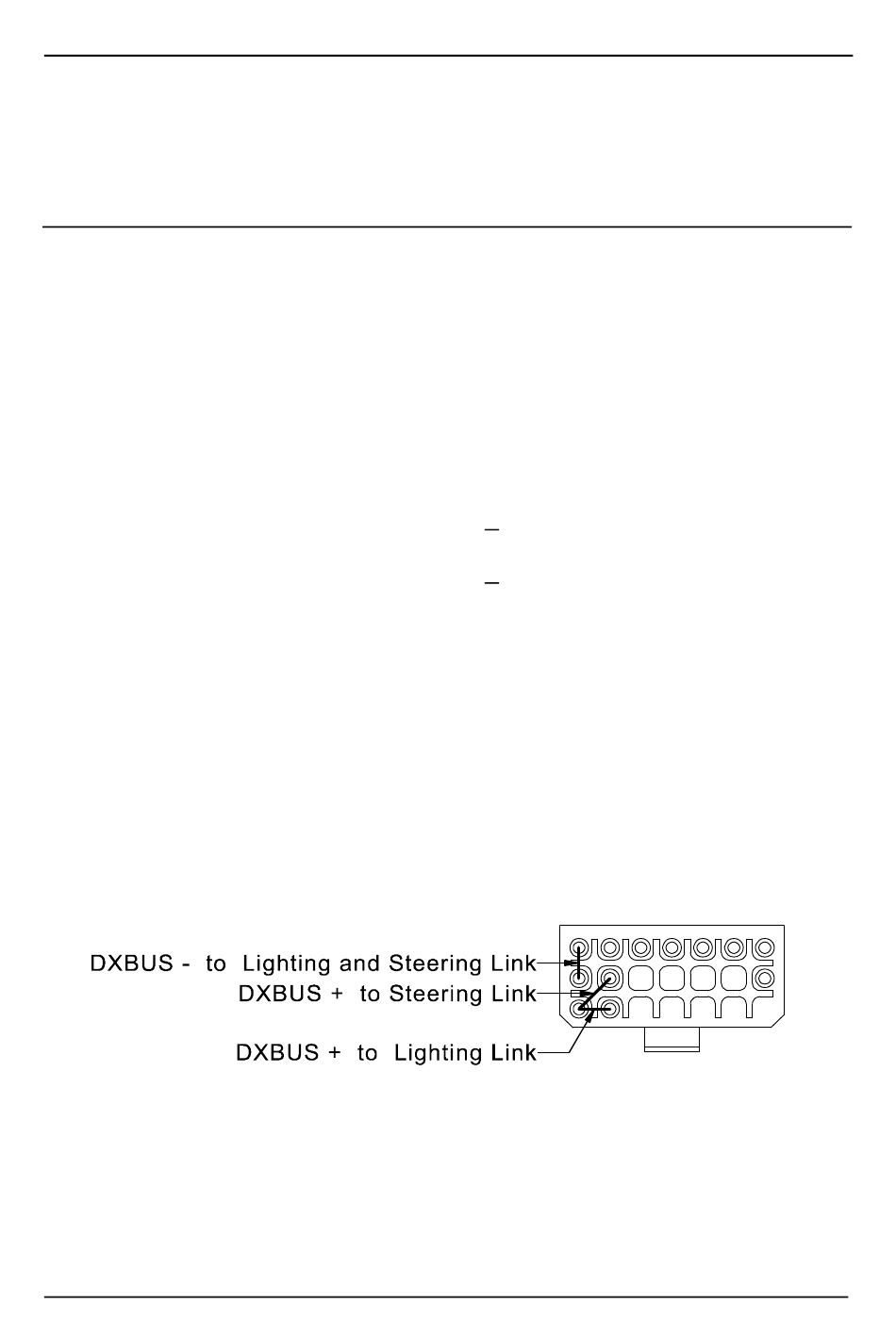

To power the lighting and servo motor from the DXBUS, links must be inserted to
short the DXBUS - pin to the Battery - pin, and the DXBUS + pin to the Steering
Power and Lighting + pins.
5 Installation
Wire Size (minimum)
1.0 mm²
0.5 mm²
0.5 mm²
0.5 mm²
1.0 mm²
0.5 mm²
0.5 mm²
1.0 mm² motors < 10 A
2.0 mm² motors > 10 A
1.0 mm² motors < 10 A
2.0 mm² motors > 10 A
1.0 mm²
1.0 mm²
No. 60027, Issue 4. January 1998
Terminal Part
Positronic
Industries Ltd
FC116N2
FC120N2
FC120N2
FC120N2
FC116N2
FC120N2
FC120N2
FC116N2
FC114N2
FC116N2
FC114N2
FC116N2
FC116N2
