Dynamic DX Installation Manual page 17

P o w e r
M o d u le
B a tte r y
2 4 V
DX modules normally have one or two DXBUS sockets for system
interconnections. Smaller DX modules may have a permanently mounted cable
terminated in a DXBUS plug, rather than DX sockets.
The star and mixed topologies both require the use of one or more DX Splitter
Boxes. A Splitter Box is a separate panel of four DXBUS sockets that may be
purchased from Dynamic or a Dealer.
The DX Splitter Box Part/Order Number is: DX-SKT-X4.
For lowest cost and simplicity the In-line topology is generally preferred, provided
the DXBUS length and voltage drop requirements described below can be met.
Warning If the SLM is between the PM and the Battery Charger:
1. Have as few as possible DXBUS cables between the SLM and the PM.
2. The DXBUS cables between the SLM and the PM must not total more
than 1 metre.
This will avoid unintended interaction between the SLM and the Battery Charger.
14
D X
D X D X
M o d u le M o d u le

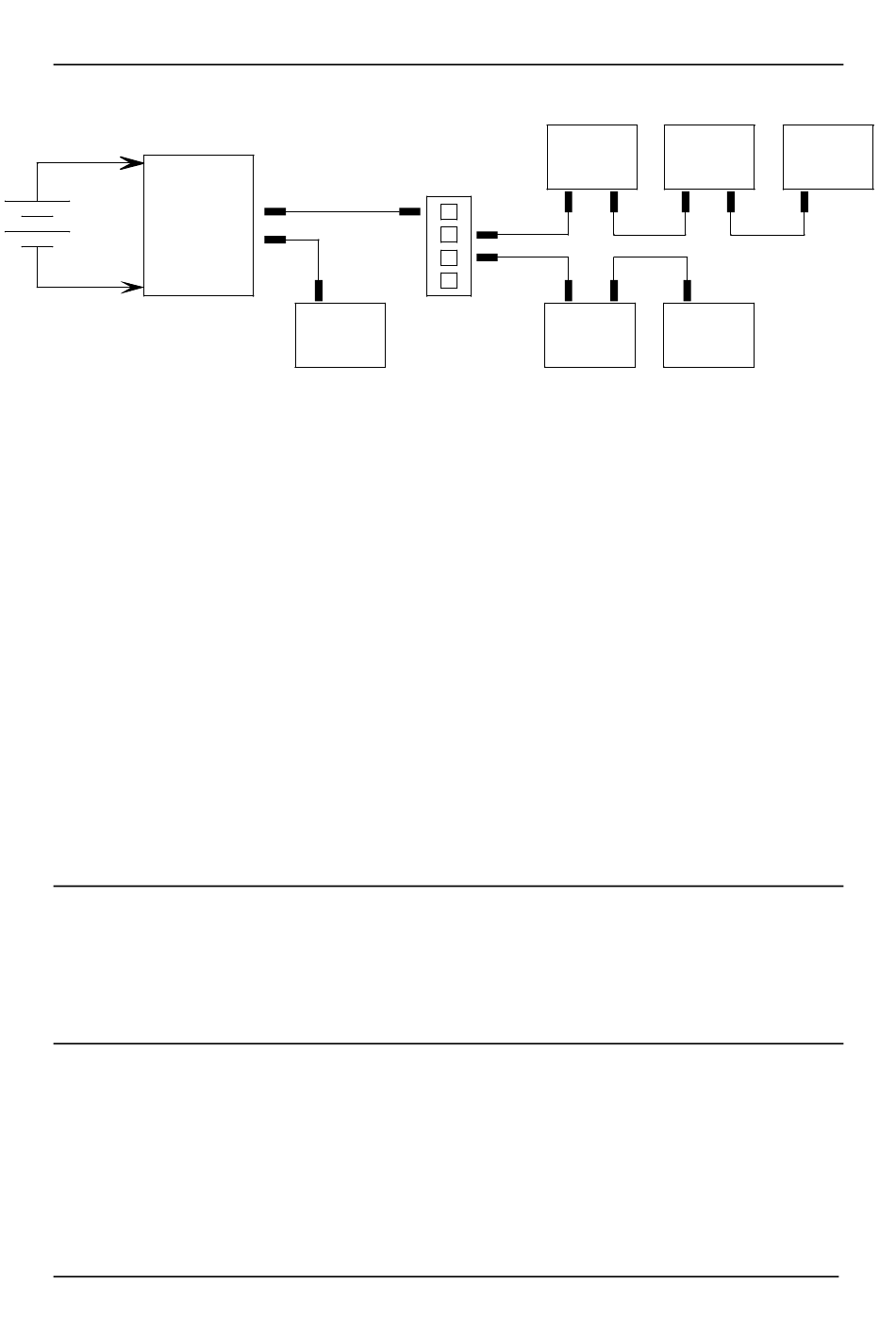

Mixed DXBUS Topology
M o d u le
Splitter Box
M o d u le M o d u le
No. 60027, Issue 4. January 1998
D X
D X
M o d u le
D X D X D X D X
M o d u le M o d u le
5 Installation
D X
M o d u le
