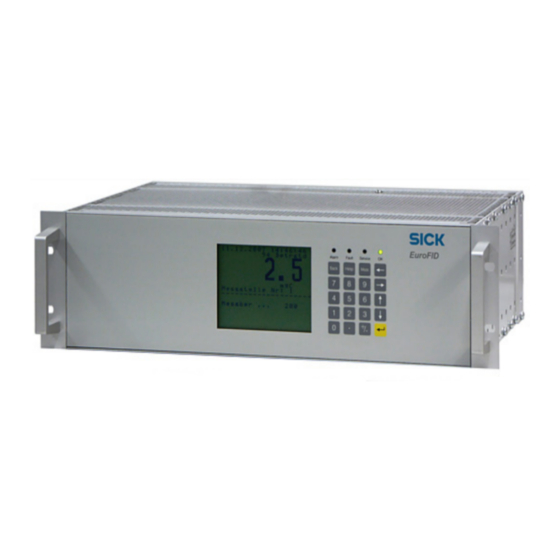

SICK EuroFID Operating Instructions Manual

Gas analyzers for measurement of the total hydrocarbon content
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

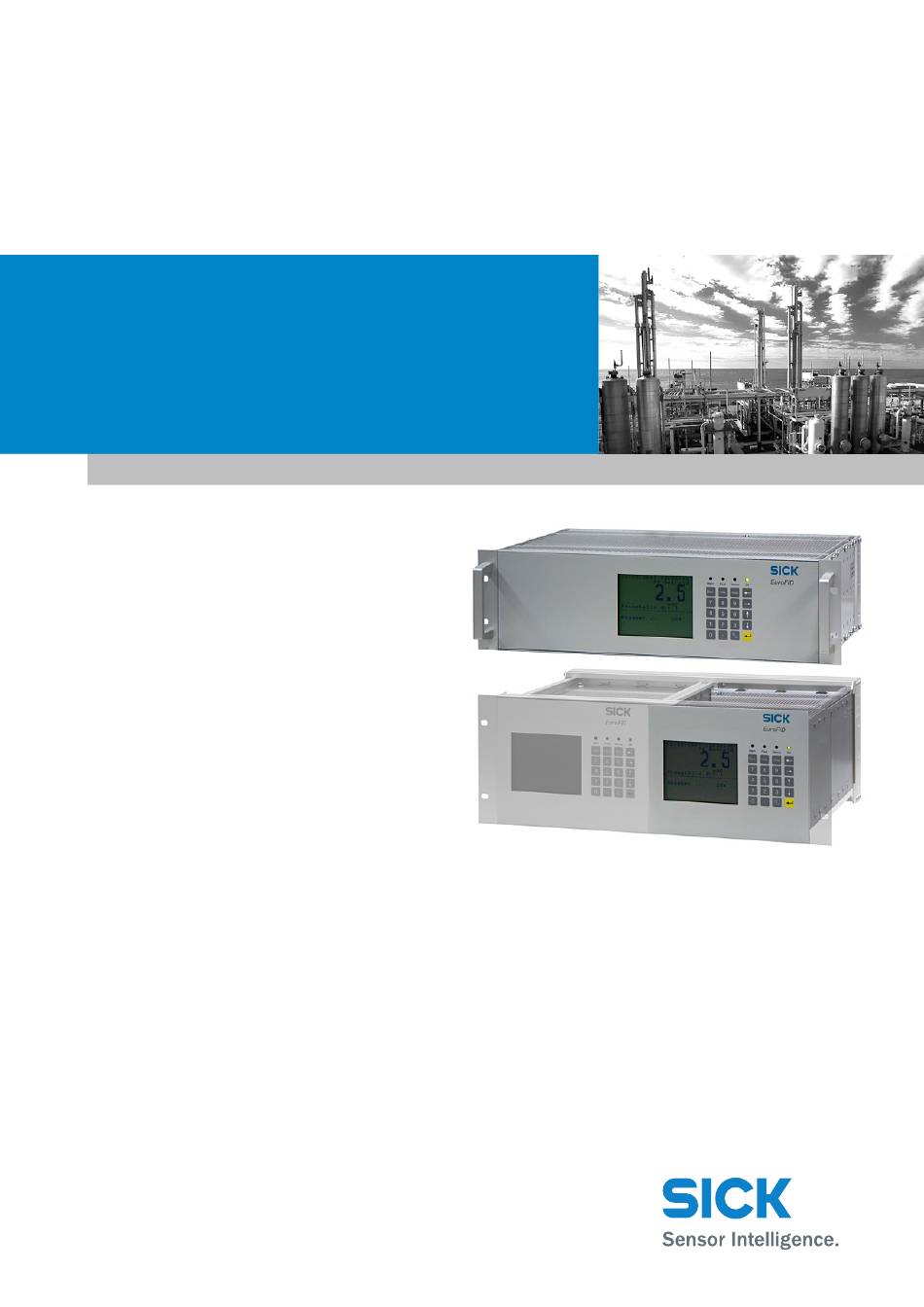

Front page
EuroFID
Gas Analyzers for Measurement of the
Total Hydrocarbon Content
Installation
Operation
Maintenance
O P E R A T I N G I N S T R U C T I O N S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EuroFID and is the answer not in the manual?

Questions and answers

Related Manuals for SICK EuroFID

Summary of Contents for SICK EuroFID

  • Page 1 Front page O P E R A T I N G I N S T R U C T I O N S EuroFID Gas Analyzers for Measurement of the Total Hydrocarbon Content Installation Operation Maintenance...
  • Page 2 SICK AG assumes no liability for the correctness of an unauthor- ized translation. Please contact the manufacturer or your local representative in case of doubt. Legal information Subject to change without notice. © SICK AG. All rights reserved. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 3 Hazard or unsafe practice which could result in less severe or minor injuries and/or property damage. NOTICE Indicates a hazard or unsafe practice which could result in property damage. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 4: Table Of Contents

    Span gas supply (“Calibration gas” connection) ....... . 36 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 5 Printer connection ............66 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 6 General Help ............. . . 99 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 7 Restart ..............143 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 8 Introduction to calibration of the EuroFID ........
  • Page 9 Terminal box – older version..........207 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 10 Contents EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 11: Important Information

    Important Information EuroFID Important Information Main hazards Main instructions for operation Intended use Own responsibility EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 12: Product Identification

    Description of the device modules → P. 24, §2.4 Product versions The EuroFID gas analyzers make up a product family featuring various modules (→ P. 23, Fig. 2) which are combined to device versions for various applications. The analyzer unit version is decisive for its function: The range includes analyzer units for direct measurement in the process (“inline”...

  • Page 13: Main Hazards

    Accuracy of the measured values CAUTION: Risks resulting from incorrect or incomplete calibration If the EuroFID is not correctly calibrated, the measured values are either incorrect or inaccurate. This can have dangerous consequences if the measured values are used directly for the control of production processes or for providing warnings for dangerous gas concentrations.

  • Page 14: Main Instructions For Operation

    §11.13) as soon as the measured value is inside the threshold value. In hazardous situations  Switch off the emergency off switch/main switch of the higher-level system. The mains switch of the EuroFID is on the rear of the operating unit (→ P. 59, Fig. 18). Maintenance ...

  • Page 15: Intended Use

    Intended use 1 . 4 Purpose of the device 1.4.1 The gas analyzer EuroFID is used to measure the total carbon content of hydrocarbon ● compounds in air. The possible measured concentration ranges from 0.015 ppm to 100 % LEL.

  • Page 16: Restrictions Of Use

    ● corrupted. The EuroFID is set at the works so that the measurement error is not greater than 4 % of the measuring range end value. If the following conditions apply at the same time in the sample gas: ●...

  • Page 17: Responsibility Of The User

    1 . 5 Designated users The gas analyzer EuroFID may only be installed and operated by skilled technicians who, based on their technical training and knowledge as well as knowledge of the relevant regulations, can assess the tasks given and recognize the hazards involved.
  • Page 18 Important Information EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 19: Product Description

    Product Description EuroFID Product Description Product identification Functional principle Characteristics Versions EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 20: Measuring Principle

    Sample gas Fuel gas The EuroFID uses a flame ionization detector (FID) for measuring the hydrocarbons. A hydrogen flame supplied by fuel gas and combustion air burns in the FID. The sample gas is routed into this flame. The hydrocarbons contained in the sample gas are split; the produced hydrocarbon fragments are ionized.
  • Page 21 Product Description Ejector pump For transporting the sample gas the EuroFID uses a patented jet pump, referred to in these instructions as an “ejector pump”. The ejector pump does not have any mechanical, moving parts and uses a part of the instrument air as induction air.

  • Page 22: Measuring Ranges

    Measuring ranges 2. 3 Measuring ranges The EuroFID has 6 measuring ranges. Each measuring range starts at “0”. The measuring range end values vary by the factor 10. The physical unit can be selected (→ P. 127, §11.11.10). The measuring ranges can be modified by changing the end value of the largest measuring range (→...
  • Page 23 Terminal box Analyzer unit type “industrial housing” Analyzer unit type “inline” Analyzer unit type “wall housing” Analyzer unit type “19" slide-in enclosure” EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 24: Device Modules

    The integrated sample gas filter filters particles from the sample gas before the sample ● gas enters the measuring system. Filter soiling is automatically monitored by the EuroFID. If the filter requires cleaning, ● the malfunction message “Service requir.” is activated.

  • Page 25: Operating Units

    Voltage converters for the analyzer unit ● Voltage supply for the fan of the inline outer housing ● Control of the solenoid valve of the “flow barrier” option ● EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 26: Additional Equipment

    → P. 57, §6 Counterparts of the plug connectors – small connector set All D-SUB plug connectors + “Power” mains connection D-SUB plug connectors “Analyzer assembly”, “Data line” “Power” mains connection EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 27: Project Planning

    Project Planning EuroFID Project Planning Scope of delivery Overview of the installation Operating materials Gas supply Exhaust gas venting EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 28: Scope Of Delivery

    ● Hood for weather protection for gas analyzer type “inline” ● Shut-off fitting (for gas supply) ● Solenoid valve (for the “flow barrier” option) ● Terminal module ● EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 29: Overview Of Installation Work

    Recommendation Only for the analyzer unit types “wall housing” and “19" slide-in enclosure” Take the lost heat of the analyzer unit into account (heated sensor block) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 30: Mechanical Installations (Overview)

    An additional, separate mains switch must normally be installed (→ P. 59, §6.2.1). ● The terminal box receives the mains voltage from the operating unit and in turn supplies the analyzer unit with operating voltage. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 31: Supply Of Operational Gases

    Connect the signal of the pressure monitor with the “Gas supply malfunction” control input (→ P. 65, §6.3.6). Instrument air is also used as zero gas (→ P. 147, §12.3). ● EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 32: Supply Of Fuel Gas

    On the analyzer unit types “inline” and “industrial housing”, the bypass gas flow is discharged from the surrounding tube of the sampling probe.  Pay attention to the installation notes (→ P. 43, §4.3.2). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 33: Exhaust Gas Lines

    – Can prevent ignition of the FID flame.  Do not install any long, thin exhaust gas lines.  If the EuroFID is installed in a ventilated or air conditioned enclosed area and the ventilation/air conditioning system in this area can create overpressure or pressure fluctuations: Do not install the exhaust gas line so that it discharges into this area.

  • Page 34: Sample Gas Supply

    Install an upstream dust filter (if necessary) The EuroFID has an integrated sample gas filter. However, the maintenance intervals of the device can become short if the sample gas contains large quantities of dust.  If the sample gas contains large quantities of dust (recommendation): Install an external dust filter in the sample gas supply line (preliminary filter, coarse filter).

  • Page 35: Connection Of The Sample Gas Line

    EuroFID. Installation of a heated sample gas line  Secure the heated sample gas line so that the sample gas connection on the EuroFID is not subjected to the weight of the sample gas line.  Always take the lowest permissible curvature radius of the pipe into account (refer to the technical specifications of the heated sample gas line).

  • Page 36: Span Gas Supply ("Calibration Gas" Connection)

     Connect the signal of the pressure monitor with the “Gas supply malfunction” control input (→ P. 65, §6.3.6). Composition of the span gas → P. 147, §12.3.2 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 37: Installation Of The Analyzer Unit

    Installation of the Analyzer Unit EuroFID Installation of the Analyzer Unit Mechanical installation Gas connections Electrical connections  Only observe the information which applies to your analyzer unit. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 38: Installation Of The "Wall Housing" Type Analyzer Unit

     Connect an exhaust gas line to the “Exhaust” connection. Suitable material: Non-corrosive hose with an inside diameter of 6 mm.  Observe the information on installation of the exhaust gas connections (→ P. 32, §3.4). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 39: Electrical Connections

    Fuelgas Calibr.gas 3 bar Kalibriergas Calibr.gas 3 bar Instr.Luft Bypass Instr. air Outlet 4 bar Instr.Luft Instr. air Auspuff Outlet Special version “MCS” * ±0.2 bar Auspuff Outlet EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 40: Installation Of The "19" Slide-In Enclosure" Type Analyzer Unit

     Mount the 19" slide-in enclosures in a pivoting frame. This facilitates access to the electrical connections and mains fuses. Fig. 5 Analyzer unit type“19" slide-in enclosure”: Recommended installation position EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 41: Gas Connections

    Data cable in Terminalbox Achtung Nicht unter Spannung öffnen. Datenleitung Wartung nur durch qualifiziertes AC 115V/230V Personal. System Printer Drucker Power Netz RS 232 C Fuses Sicherungen 4A MT EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 42: Installation Of The "Inline" Type Analyzer Unit

     Only lift the analyzer unit by the base frame, not by the sampling probe (→ Fig. 7). Fig. 7 Lifting points on the EuroFID analyzer EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 43: Assembly

    (→ P. 44, §4.3.3). 2 Carefully insert the probe of the analyzer unit through the flange pipe. 3 Connect the flanges with the supplied screw fittings. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 44: Installing The Hood For Weather Protection

    2 Let the upper section of the hood for weather protection slide onto the guide rails of the installation plate from the top. 3 Push the base plate into the top section. Fig. 9 Installing the hood for weather protection EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 45: Gas Connections

    (→ P. 54, §5.2).  On devices with the “fan” option: Connect the connection cable of the fan in the terminal box to 24 VDC (→ P. 54, §5.2). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 46 3 bar Instr.Luft Instr. air Auspuff Outlet 4 bar Instr.Luft Instr. air A only with the “fan” option B solenoid valve – only with the “flow barrier” option” EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 47: Installation Of The Analyzer Unit "Industrial Housing" Type

    This could cause breakage of the glass vacuum tube. Assembly sequence (→ Fig. 12): 1 First mount the industrial housing without an installed EuroFID analyzer (→ P. 49, §4.4.3). 2 Then install the EuroFID analyzer in the industrial housing (→ P. 50, §4.4.4).
  • Page 48 Installation of the Analyzer Unit Fig. 11 Sealing sleeve of the sample gas probe Fig. 12 Assembly sequence EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 49: Assembly

    Installation of the industrial housing 4.4.3  Secure the industrial housing to the mounting connection (gas connections pointing downwards).  Fit a flange seal between the industrial housing and the mounting connection. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 50: Installing The Analyzer

    9 Connect the connection cable of the analyzer to the corresponding counterpart on the inside of the industrial housing. 10 Close the plastic bulkhead fitting around the exhaust gas line. Fig. 13 Installing the analyzer EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 51: Gas Connections

    If the existing connection cable is to be replaced:  Only use the specified cable material (→ P. 54, §5.2).  Circuit diagram→ P. 52, Fig. 14. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 52 L N PE 3 bar Kalibriergas Calibr.gas 11 12 14 15 16 17 18 19 20 21 22 4 bar Instr.Luft Instr. air * Drain (if necessary open manually) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 53: Installation Of The Terminal Box

    Installation of the Terminal Box EuroFID Installation of the Terminal Box Assembly Electrical connections EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 54: Installing The Terminal Box

    The terminal box is supplied with mains voltage directly from the operating unit. If the supplied mains voltage does not comply with the mains voltage configuration of the terminal box, the terminal box and the EuroFID can be damaged. If damaged, the devices can constitute a hazard.
  • Page 55 Terminal box: Connections X17_19 X36_37 X20_21 X12_14 A only with the “fan” option B only with the “flow barrier” option” C possible supply for terminal module 2 (accessory) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 56 Installation of the Terminal Box Fig. 16 Terminal box: Wiring of the connection cables Analyzer Assembly Terminalbox Data cable in AC 115V/230V Datenleitung EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 57: Installation Of The Operating Unit

    Installation of the Operating Unit EuroFID Installation of the Operating Unit Installation Electrical connections Signal connections EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 58: Installing The Operating Unit

     Install the operating unit type “½-19" slide-in enclosure” into a 19" housing frame (4 HU). Fig. 17 Operating unit: Installation of the operating unit type “½-19" slide-in enclosure” EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 59: Mains Connection Of The Operating Unit

    EuroFID can be damaged and constitute a hazard. If the mains voltage is too low, the function of the EuroFID is impaired.  Check which mains voltage is stated on the type plate.

  • Page 60: Signal Connections

    Before signal connections are established (also with plug connections):  Disconnect the EuroFID and any connected devices from the mains electrical supply (switch off). Otherwise the internal electronics could be damaged. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 61: Contact Assignment Of The Plug Connector "Analog And Digital I/O

    19 37 → P. 124, §11.11.9 Screw terminal connections via terminal module 1 → P. 68, §7.1 ● Signal connections via terminal module 2 → P. 72, §7.2 ● EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 62: Analog Outputs

    Measuring range 2 Measuring range 3 Measuring range 4 10.4 Measuring range 5 12.0 Measuring range 6 13.6 <1 <4.8 Measured value is invalid > 13 > 14.4 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 63: Analog Inputs

    Installation of the Operating Unit Analog inputs 6.3.4 Application The analog inputs (AI1 … AI4) should only be connected if the EuroFID software uses these inputs. This only applies to special versions – please check whether corresponding technical information was supplied. Possible functions The analog inputs can be used to monitor other devices by means of an analog signal.

  • Page 64: Switching Outputs (Threshold Value Alarm, Status)

    Calibration Activated as long as a calibration is running. Malfunction Deactivated if there is an internal fault in the function of the EuroFID. Service requirement Activated if the EuroFID can still perform measurement, but several internal conditions are no longer in the operating range for valid measuring values.

  • Page 65: Control Inputs

    This control input serves to supply malfunction signals from the gas supply (e.g. signals from pressure monitors which monitor the filling pressure of the gas cylinders for fuel gas and calibration gas). If this control input is activated, the EuroFID activates the “Service requirement” status.

  • Page 66: Printer Connection

     Check/modify the printer settings (→ P. 136, §11.17). Print function “Print error archive” → P. 110, §11.5.3 The “Printer” option can be activated on the expert level (not described in these Operating Instructions). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 67: Terminal Modules (Accessory)

    Terminal Modules (Accessory) EuroFID Terminal Modules (Accessory) Installation Connection options Configuration options EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 68: Terminal Module 1

    17 19 21 23 25 27 29 31 33 35 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 69: Installation

     To use the “Malfunction” and “Alarm” signal outputs directly: Close the respective plug- in jumpers (position jumpers → P. 70, §7.1.4).  To use the feedback loop: Open the respective jumpers (remove the jumpers). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 70: Terminal Assignment

    Terminal Modules (Accessory) Terminal assignment 7.1.4 Fig. 22 Terminal module 1 – terminal diagram Operating unit Terminal module 1 Analog and Digital I/O 500R 500R 500R 500R –2028680– Ref.: Z004057/Kumm EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 71 Optionally 0 … 20 mA or 4 … 20 mA (→ P. 123, §11.11.6) The “Measured value” and “Reference value” analog outputs are potential-free towards the other electronic components, but not towards one another (joint minus pole). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 72: Terminal Module 2

    1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Fuse: 1 A MT ● Circuit diagram → P. 202, §16.12 ● EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 73: Functional Descriptions

    The “Lamp test” control input switches a photo-MOS relay. The button is ● therefore not subjected to the load of the connected lamps. The current relay status of the terminal module is not changed during the ● lamp test. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 74: Installation

    2 Analog output 2 “Reference value” J5 bridged J5 open The analog outputs are potential-free towards the other electronic components, but not towards one another (joint minus pole). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 75 (X30.7–X30.20) shows the status of the relay.  If this function should be used: Remove jumper J40. This malfunction signal is not displayed by the operating unit. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 76: Signal Connections

    Malfunction Measured value valid Alarm (H2) Pre-alarm (H1) Calibration Control voltage: 24 VDC Switches a photo-MOS relay; the switching contact (button) is not subjected to a lamp load EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 77: Start-Up

    Start-up EuroFID Start-up Preparations Activation procedure Function test EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 78: Safety Information For Start-Up

     Close all housings. Activation procedure 8. 3  To start operation of the EuroFID: Switch on the external mains switch or the mains switch on the rear of the operating unit. Automatic procedures after activation ➝ The electronic circuit in the analyzer unit starts the measuring system.
  • Page 79 S e r v i c e r e q u i r ( D i a g ) Status message Automatic start-up of measurement mode If the EuroFID and all peripheral devices with connected status signals are ready for operation, the EuroFID switches to measurement mode: ➝ The “OK” LED lights up.
  • Page 80 Start-up EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 81: Operation (General)

    Operation (General) EuroFID Operation (General) Access Operation Status messages EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 82: Controls And Indicators/Displays

    9.1.2 Significance The measured value has exceeded an alarm threshold value. Alarm The measuring system is not ready for operation. The EuroFID does not show any current measured values. Fault Service is required. However, the EuroFID continues to display current ●...

  • Page 83: Keypad

    – For entry functions: Concludes an entry. – In the menu system: Concludes a selection or a procedure. Navigation principle in the menu system → P. 84, §9.2.2 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 84: Menu System

    The operating steps are explained in detail for most menu functions (→ P. 89, §10 and → P. 101, §11). Returning quickly to the measurement display from a menu:  Press Meas EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 85: Overview Of The Menu System

    Instrument Log Print diagnosis Print selftest Language Language A-M German Spanish French English Language N-Z General Help Only appears when the “Printer” option is activated (→ P. 136, §11.17) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 86: Checking The Operational State (Visual Control)

    – The “Fault” or “Service” LED lights up and malfunction messages are displayed. The “Service” LED also lights up if the “System in Service” message was activated (→ P. 129, §11.12). In this status the EuroFID does not display any current measured values.

  • Page 87: Behavior In An Emergency

     Follow the works instructions which apply for this situation. Otherwise:  Close off the fuel gas supply.  EuroFID Switch off (external mains switch or mains switch on the rear of the operating unit).  Switch off the peripheral devices if installed (e.g. heated sample gas line).
  • Page 88 Operation (General) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 89: Main Menu Functions

    Main Menu Functions EuroFID Main Menu Functions Starting measurement display Manual start of calibration Manual ignition of the FID flame Diagnosis displays Language selection Help EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 90: Measurement Display

    The measurement display can also be opened by pressing . This is Meas possible in each menu. If the status is activated in “System in Service” (→ P. 129, §11.12), this status remains constant. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 91: Selecting The Measuring Range

    Calibration (note) 1 0. 3 Manual calibration can be performed with the “Calibration” menu (Main menu  Calibration). – For a detailed description refer to → P. 151, §12.5 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 92: Flame Ignition

    When ignition is started, the fuel gas supply is briefly increased and the FID flame is ignited with a spark plug. If this does not work immediately, the EuroFID automatically makes several ignition attempts. If 10 consecutive ignition attempts were unsuccessful, a malfunction message is displayed.

  • Page 93: Diagnosis

    1 0 0 Current measuring range The malfunction messages cannot be manually deactivated. A malfunction message disappears automatically as soon as the cause of the malfunction is eliminated. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 94: Operational Displays In The Diagnosis Function

    Current measuring range (measuring range end value) If the current temperature exceeds 70 °C, a malfunction message is displayed and the heating of the sensor block is switched off. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 95 – If the “factor” drops below the lower threshold value, this is interpreted as filter soiling (sample gas intake faulty). – If the “factor” exceeds the upper threshold value, the EuroFID issues a warning against implausible measured values. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 96 FID flame is not burning: Take the EuroFID out of operation. In this case the EuroFID may not detect that the FID flame has been extinguished; therefore the fuel gas supply would not be automatically stopped in the event of a malfunction.
  • Page 97 6 1 . 6 m g C Current measured value R a n g e . . . 1 0 0 Current measuring range (measuring range end value) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 98: Maintenance (Note)

    10 . 6 The functions of the M a i n t e n a n c e sub-menu are described in a separate chapter (→ P. 101, §11). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 99: Language (Language Selection)

    6 1 . 6 m g C R a n g e . . . 1 0 0  To view additional information: Press  To close the help function: Press Back EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 100 Main Menu Functions EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 101: 11 "Maintenance" Sub-Menu Functions

    “Maintenance” Sub-menu Functions EuroFID “Maintenance” Sub-menu Functions Settings System information Test functions EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 102: Accessing The "Maintenance" Sub-Menu

    The “Maintenance” sub-menu is protected: When the “Maintenance” sub-menu is accessed, a password prompt is displayed. The password is not variable and is the same for all EuroFID analyzers. ● As long as the “Service lock” control input is activated, access to the ●...

  • Page 103: Calibration Gas Value (Note)

    The setpoint value for sensitivity calibration is set in the “Calibr. Gas Value” menu (Main menu  Maintenance  Calibr. Gas Value). For a detailed explanation refer to → P. 149, §12.4.2 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 104: Conversion Factors

    (for setting refer to → P. 127, §11.11.10). If the EuroFID is used as a gas detector, the conversion factor is relevant for safety. The correct value depends on the LEL value of the gas mixture, the sample gas temperature (influences the LEL value) and the response factor of the EuroFID.The correct conversion...

  • Page 105: Calculation Of Conversion Factors

    1 7 . 2 m g C Measuring component: Toluol (C Molar mass [g/mol]: 92.14 Response factor: 0.96 92.14 = 17.2 · = 19.6 mg/m Toluol 12 · 7 · 0.96 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 106 Ethyl benzene 0.93 Methane 1.04 Propane 1.00 Isopropanol 0.73 Tetrachlorethene 1.11 Toluol 0.96 p-Xylene 0.93 Control gas 1 to EN 12619 1.02 Control gas 2 to EN 12619 1.04 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 107: Standby

    > is highlighted. 5 Press ➝ The EuroFID switches to the selected condition. (After switchover from Y E S to , the FID flame is automatically ignited.) ➝ The “Maintenance” menu is displayed (→ P. 102, §11.1). If you open the measurement display (→ P. 90, §10.1), the “Standby” condition is automatically deactivated.

  • Page 108: Error Archive

    . . . 1 0 0 Current measured value Current measuring range (measuring range end value) Only available when the “Printer” option is activated (→ P. 136, §11.17) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 109: Displaying The Error Archive

    ➝ If additional error messages are provided, < C o n t i n u e > is displayed. 2 < C o n t i n u e > or < E N D > : Press  To cancel: Press Back EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 110: Printing The Error Archive

    ➝ The selection switches to < Y E S > . 4 Press ➝ < E n d > is highlighted. 5 Press ➝ All error messages are output via the printer output. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 111: Deleting The Error Archive

    ➝ < E n d > is highlighted. 5 Press ➝ All error messages are deleted. ➝ The E r r o r a r c h i v e menu appears. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 112: Filter Change (Menu)

     Set the “Filter is replaced” status to “YES” (Selection box 2).  Close the “Filter change” menu (”END”, enter key).  Wait until measurement mode is automatically activated once more (approx. 15 min.). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 113: System Parameters (Overview)

    → P. 143, §11.18 S y s t e m i n S e r v i c e R a n g e . . . 1 0 0 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 114: User Level (Activation)

    The menu item only appears on devices with the “Measuring point scanner” option. This menu item only appears on devices with an activated “Printer” option (→ P. 136, §11.17) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 115: Range Select Mode (Measuring Range Selection)

    4 Press the numeric key which corresponds to the required measuring range (1 … 6). Example: To set measuring range 2, press [2]. To finish: 5 Press until E n d is highlighted. 6 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 116 Standard value for the switching hysteresis: 2 %. ● Make the switching hysteresis greater if you expect fluctuating or “noisy” ● measured values. To finish: 4 Press until E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 117: Temperature Of The Sensor Block

    Current measuring range (measuring range end value) 2 Press ➝ Entry field is highlighted. 3 Enter the required value. 4 Press ➝ E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 118: I/O Parameters

    The “Integrated value” is the interval of sliding averaging for the measurement display. This produces a more constant measurement display if the measurement signal is irregular or “noisy”. The EuroFID then does not display current measured values, but mean values from the current measured value and the previous measured values.

  • Page 119: Display Rate

    0 = most frequent refresh rate 2 Press ➝ Entry field is highlighted. 3 Enter the required value. 4 Press ➝ E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 120: Setup Filter (Averaging For The "Measured Value" Analog Output)

    Current measuring range (measuring range end value) 2 Press ➝ Entry field is highlighted. 3 Enter the required value. 4 Press ➝ E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 121: Median Value Time (Averaging For The "Reference Value" Analog Output)

    Current measuring range (measuring range end value) 2 Press ➝ Entry field is highlighted. 3 Enter the required value. 4 Press ➝ E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 122: Display Range

    3 With selection boxes: Press until the required setting is displayed. With entry fields: Enter the required value. To finish: 4 Press , until E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 123: Output Range

    With entry fields: Enter the required value. To finish: 4 Press , until E n d is highlighted. 5 Press Signal range of the “Reference value” analog output→ P. 62, §6.3.3 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 124: Range Select Mode (Note)

    Example: H1 acts as a pre-alarm before H2. For this reason the threshold value H1 must always be lower then the threshold value H2.  To deactivate a threshold value: Set 0 as a threshold value. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 125 Relations: H0 < H1 < H2 exceeded Relations: L2 < L1 < H1 < H2  If the EuroFID is used as a gas detector: Select the threshold values so that the alarm is reliably triggered before a hazardous condition occurs. Trigger delay If you set a delay, the alarm signal is not triggered until after the delay time (setting range: 0.0 …...
  • Page 126 3 With selection boxes: Press until the required setting is displayed. With entry fields: Enter the required value. To finish: 4 Press , until E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 127: Setting The Measuring Ranges

    11.11.10 Function The measuring ranges of the EuroFID can be changed by adjusting the end value of measuring range 6 (setting range: 0.01 … 9999999.00). The end values of the smaller measuring ranges are automatically modified (in the ratio 1:10).

  • Page 128: Purging Parameters (Purging Time)

    The “purging time” determines how long the measuring system should be purged with instrument air (zero gas) after calibration. The purging time should correspond approximately to the reaction time (dead time + 100% time) of the EuroFID. CAUTION: Incorrect alarm signal resulting from inadequate purging time If the purging time setting is inadequate, it is possible that an alarm signal (threshold value exceeded) is still triggered.

  • Page 129: Device Status "System In Service

    The device status “System in Service” can be activated with a menu function. This can be used, for example, to signal to an external place that the EuroFID is not running in regular measurement mode, as maintenance work or device settings are being performed.

  • Page 130: Threshold Reset

    ➝ Alarm signals are deactivated. (Does not occur if the measured value is still outside the threshold value H2 or L2.) 4 Press ➝ E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 131: Time And Date Settings

    This menu is used to set the internal clock of the EuroFID. WARNING: Potential danger resulting from failure of the operating function When the clock has been reset, the EuroFID restarts. As a result the operating function is temporarily shut down.

  • Page 132: Changing The Time Zone

    11.14.2 Function With this menu the internal clock of the EuroFID can be adjusted by the hour. This is an alternative method to set the internal time to your local time. The standard setting is “+1.00” = +1 hour later than Greenwich Mean Time (GMT) = Central European time (CET).

  • Page 133: Summer / Winter Time (Automatic Switchover)

    Summer / winter time (automatic switchover) 11.14.3 Function The EuroFID can automatically switch the internal clock between summer time and winter time. Some national rules for switching the time are programmed and can be activated in this menu. Table 14...

  • Page 134: Supplementary Text For Physical Unit (Unit Of Measurement)

     Press the enter key until the required character is displayed. Digits can be entered directly with the numeric keys. To finish: 4 Press ➝ E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 135: Name Of Analyzer

    1 1. 1 6 Function The measurement display (→ P. 90, §10.1) contains a text line with programmable content – for example, for naming the sampling point of the EuroFID. Enter the required text in the “Name of analyzer” menu. Procedure 1 Open the menu: Main menu ...

  • Page 136: Printer Functions

    Paper format 11.17.1 Function The printouts of the EuroFID are configured for continuous form paper printers with the paper format 12" x 240 mm. In the “Paper size” menu you can also program, How many lines are printed on each page ●...

  • Page 137: Log Settings

    3 With entry fields: Enter the required value. With selection boxes: Press until the required setting is displayed. To finish: 4 Press , until E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 138: Printing Measurement Archive/Average Value Archive

    3 Press ➝ The selection switches to < Y E S > . 4 Press ➝ < E n d is highlighted. > 5 Press ➝ Printout starts. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 139: Print Instrument Log

    ➝ The selection box is highlighted. 3 Press ➝ The selection switches to Y E S . 4 Press ➝ E n d is highlighted. 5 Press ➝ Printout starts. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 140: Print Diagnosis

    ➝ The selection box is highlighted. 3 Press ➝ The selection switches to Y E S . 4 Press ➝ E n d is highlighted. 5 Press ➝ Printout starts. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 141: Print Selftest

    “Maintenance” Sub-menu Functions Print selftest 11.17.6 Function With the print selftest function you can quickly check whether the EuroFID and the printer work together. Procedure 1 Open the menu: Either: Main menu  Print setup  Print selftest Or: Main menu  Maintenance  System Parameters  User level  Next menu  Print setup ...

  • Page 142: Print All Parameters (Device Data)

    R a n g e . . . 1 0 0 Current measuring range (measuring range end value) 4 Press ➝ The selection switches to Y E S . 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 143: Restart

    All saved values remain unchanged. Procedure CAUTION: Risk for connected devices/systems During restarting all device functions of the EuroFID are temporarily shut down. This also applies to measured value outputs and status messages.  Ensure that this cannot cause any problems in connected stations.
  • Page 144 “Maintenance” Sub-menu Functions EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 145: Calibration

    Calibration EuroFID Calibration Types of calibration Calibration requirements Manual calibration procedure Automatic calibration EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 146: Introduction To Calibration Of The Eurofid

    The EuroFID determines the measured value (actual value) of this calibration gas. c) The EuroFID compares the actual value with the setpoint value, calculates the deviation and then corrects the internal calculation parameters.

  • Page 147: Calibration Gases

    (setpoint value: “0”) – or only such small quantities that these are negligible. The EuroFID automatically uses the instrument air as zero gas (→ P. 31, §3.3.3). It is therefore not necessary to provide separate zero gas.

  • Page 148: Settings For Calibration

    Recommendation: Smallest measuring range used in measurement mode. Instrument air must be pure enough for the selected measuring range (specifications → P. 194, §16.6.1). “Typical setting” for emission measurement: 2: for LEL measurement; 5 Recommended setting / for emission measurement: Obligatory setting EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 149: Setpoint Value For The Span Gas (Calibration Gas Value)

    3 Enter the setpoint value for the span gas (in “ppm”). 4 Press ➝ The setpoint value is automatically converted to the physical unit. ➝ E n d is highlighted. 5 Press EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 150: Calibration Times For Automatic Calibration

    , until E n d is highlighted. 5 Press It can take several seconds to save the values (display message: P l e a s e w a i t ). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 151: Manual Calibration

    5 Press ➝ E n d is highlighted. 6 Press To start calibration: 3 Press ➝ The “Calibration” status output is activated. ➝ The calibration operation runs automatically. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 152 ➝ A delay time starts. Display: P u r g e s e n s o r b l o c k ➝ The EuroFID activates measuring mode. Display: P l e a s e w a i t ➝ Calibration finished: The measurement display appears; the green LED “OK” lights up.

  • Page 153: Checking Calibration

    This function is used to have the zero gas measured instead of sample gas for test purposes. As long as the function is activated, zero gas supply is activated (internal solenoid valve opens) but the EuroFID remains in measurement mode, therefore displays the measured value of the zero gas.
  • Page 154 Calibration EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 155: Shutdown

    Shutdown EuroFID Shutdown Preparations Shutdown procedure EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 156: Preparing Shutdown

    2 Shut off the calibration gas supply (if available). 3 Close the fuel gas supply (external valve). ➝ The FID flame goes out. The EuroFID measuring system is purged with instrument air ( §13.1.2 “Protection against condensation”). 4 Deactivate the H leakage monitoring device (if installed).

  • Page 157: Transport

    1 3. 4  Observe locally applicable legal regulations.  Dispose of the following parts separately (can contain dangerous or polluting substances): – Battery of the operating unit EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 158 Shutdown EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 159: Maintenance

    Maintenance EuroFID Maintenance Maintenance plan Maintenance work Preventative maintenance Recommended spare parts EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 160: Necessary Technical Knowledge For Maintenance Work

     If hazard-free operation of the device is no longer possible: Take the device out of operation and secure against unauthorized start-up.  Never disconnect the protective conductor connections inside or outside the device. Otherwise the device could constitute a hazard. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 161: Maintenance Plan

    The maintenance interval depends on the individual application Important when the device is used as a gas detector Have performed at the manufacturer's works or a suitably qualified workshop EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 162: Servicing The Sample Gas Filter

     Open the front panel. Type “inline”  Remove the outer housing. Type “industrial housing”  Open the door. Fig. 25 Sample gas filter: Position in the analyzer unit EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 163: Replacement/Cleaning Of The Filter Element (Procedure)

    S y s t e m i n S e r v i c e 6 Press ➝ E n d is highlighted. 7 Press ➝ The measuring system is protected against soiling (for explanation refer to → P. 112, §11.6). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 164 Fig. 26 Sample gas filter: Removing the filter element 200 °C 130 °C 390 °F 270 °F *Only valid for the “inline” and “industrial housing” analyzer units. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 165 ➝ Selection box 2 switches to Y E S . 4 Press ➝ E n d is highlighted. 5 Press ➝ The sample gas filter is heated (approx. 15 minutes). ➝ Measurement mode is then automatically reactivated. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 166: Cleaning The Filter

    2 Remove the screw connection [B] (on the analyzer unit types “inline” “industrial housing”: including the sampling pipe). 3 Remove pressure plate [C]. 4 Remove filter element [D]. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 167  Apply a thin layer of grease to sealing rings and metal threads (grease type → P. 168, §14.4.4).  During assembly ensure that the device is sealed against dust. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 168: Spare Parts For The Sample Gas Filter

    For the analyzer unit types “wall housing” and “19" slide-in enclosure” For the analyzer unit types “inline” and “industrial housing” Micrometers (μm) Comprising: Filter element, sealing ring service kit (as for 2028683), capillaries, connecting rod EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 169: Clearing Malfunctions

    Clearing Malfunctions EuroFID Clearing Malfunctions General malfunctions Malfunction messages Display messages Measurement errors EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 170: If The Eurofid Does Not Work At All

    The EuroFID measuring system is  Contact the manufacturer's after-sales service soiled. department. The stability of the zero and calibration point depends on the consistency of the temperature of the gas-carrying components. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 171: Electrical Fuses

    If the housing of the mains fuses is removed, electrical contacts are exposed which carry mains voltage.  Before testing the fuses: Disconnect the EuroFID from the mains supply or switch the power supply off at an external point. CAUTION: Fire hazard / danger of irreparable damage If incorrect fuses are fitted, a fire can occur in the event of a defect.

  • Page 172: Fuses In The Terminal Box

    Fuse link T2A0 250V D5x20 6004303 Older versions may have other values.  Comply first with the labeling on the terminal box. Older version of the terminal box → P. 207, §17.2 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 173: Overtemperature Protection On The Analyzer Unit

    On devices which are used as a gas detector, the overtemperature protection ensures compliance with the classification temperature (Refer to the type plate for the specification).  Do not change the setting of the temperature monitor. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 174: Testing The Overtemperature Protection (Note)

    This work should be performed by the customer service technicians of the manufacturer. Preparation 1 For applications subject to the conditions of a type approval certificate (e.g. LEL warning device): Limit the operating conditions so that the EuroFID cannot become hazardous if the classification temperature is exceeded (shut down connected systems).

  • Page 175: Malfunction Messages

    1 5. 5 Malfunction messages on the display (general) 15.5.1 The EuroFID signals a malfunction in a window such as this one (example): S y s t e m f a i l u r e General message 1 0 . 0 5 . 2 0 0 3 1 2 : 2 4 : 3 5 Time of the malfunction (DD.MM.YYYY HH:MM:SS)

  • Page 176: Possible Malfunction Messages

    1 i s O K . EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 177 0 0 : 0 0 : 0 0 . P l e a s e s e t t h e t i m e . EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 178 E r r o r o c c u r r e d d u r i n g E P R O M t e s t r e a d . EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 179 E r r o r o c c u r r e d d u r i n g R A M t e s t r e a d / w r i t e . EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 180 . the set running up time. transition status. Measurement is  If this is not applicable: interrupted. Have the EuroFID serviced by the after-sales service of the manufacturer. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 181 . menu function (→ P. 92, §10.4).  If unsuccessful: Have the EuroFID serviced by the after-sales service of the manufacturer. EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 182 Clearing Malfunctions EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 183: Technical Data

    Technical Data EuroFID Technical Data Housing data Ambient conditions Electrical specifications Measuring specifications Internal gas flow EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 184: Dimensions

    Technical Data Dimensions 16 . 1 Analyzer units 16.1.1 Fig. 32 Analyzer unit type “wall housing” EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 185 Technical Data Fig. 33 Analyzer unit type “inline” with “flow barrier” option with “fan” option EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 186 Analyzer unit type “inline” – connection positions Auspuff Outlet 3 bar H2/He Fuelgas 3 bar Kalibriergas Calibr.gas 3 bar Instr.Luft Instr. air * only with the “flow barrier” option EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 187 Technical Data Fig. 35 Analyzer unit, “19" slide enclosure” type EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 188 Technical Data Fig. 36 Analyzer unit type “industrial housing” EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 189: Operating Units

    4A MT only for version with integrated terminal box only for version with integrated terminal box + “flow barrier” option / + “Fan” option (analyzer unit type “inline”) EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 190: Terminal Box

    Personal. System Printer Drucker Power Netz RS 232 C Fuses Sicherungen 4A MT Alarm Fault Service Back Help Meas Terminal box 16.1.3 Fig. 39 Terminal box Ref.: 9103121 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 191: Housing Specifications

    Flange specification 16.2.4 for the analyzer unit types “inline” and “industrial housing” Version Flange Material Threaded bolt B65x76.1 (DIN 2573) 1.4571 ANSI B16.5 150lb/sq.in. DN2" 1.4301 5/8" UNC EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 192: Ambient Conditions

    The installation site must be virtually free from vibration. Degree of soiling: > 1 Weather-protected installation as stipulated in EN 60721-3-3 ● Degree of soiling 1 = no soiling or only dry, non-conductive soiling ● EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 193: Supply Voltage (Mains Voltage)

    Recommended: stainless steel tube, material thickness 1 mm Special version type “MCS”: “Fuel gas” connection for tube with an outer diameter of 2 mm Recommended: PTFE tube, material thickness 1 mm EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 194: Auxiliary Gases

     Use a catalytic gas purifier to neutralize hydrocarbons. For precise measurement in the lower measurement ranges (recommendation):  Condition the instrument air with a catalytic gas purifier. Notes on installation → P. 31, §3.3.3 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 195: Fuel Gas

    – Maximum: 170 l/h (2,800 cm /min) Analyzer unit types “wall housing” and “19" slide-in enclosure” Analyzer unit types “inline” and “industrial housing” Relative to the ambient/atmospheric air pressure EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 196: Measuring Characteristics

    13th FICA and TI Air 17th FICA “Inline” type as gas detector Gas detector BVS 05 ATEX G005 X Type “industrial housing Ex1” Refer to separate Operating Instructions EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 197: Accessories

    Only suitable for versions with “EU” flange (→ P. 191, §16.2.4). Heat insulation flange 16.10.2 Fig. 41 Heat insulation flange for mounting connection Only for analyzer unit types “inline” with “EU” flange (→ P. 191, §16.2.4). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 198: Hood For Weather Protection

    Technical Data Hood for weather protection 16.10.3 Fig. 42 Hood for weather protection Only for analyzer unit types “inline” with “EU” flange (→ P. 191, §16.2.4). EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 199: Shut-Off Fittings

    A For analyzer unit type “inline” with standard sealing disc in the mounting connection B For analyzer unit type “inline” with heat insulation flange in the mounting connection C For analyzer unit type “industrial housing” Fig. 44 Shut-off fittings: Possible applications EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 200: Plug Connector For The Operating Unit

    Connection cable terminal module operating unit , with plug connectors, 5 m long 2028680 Sold by the meter; state required length when ordering 37-pole D-SUB plug connector “Analog and digital I/O” EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 201 Y2 Solenoid valve for zero gas Y3 Solenoid valve for span gas Y4 Solenoid valve for fuel gas Y5 Solenoid valve for ignition gas for safety shutdown EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 202 Technical Data Circuit diagram for terminal module 2 1 6. 12 Fig. 48 Circuit diagram of terminal module 2 – part 1 of 3 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 203 Technical Data Fig. 49 Circuit diagram of terminal module 2 – part 2 of 3 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 204 Technical Data Fig. 50 Circuit diagram of terminal module 2 – part 3 of 3 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 205: Older Device Versions

    Older Device Versions EuroFID Older Device Versions Operating unit – older version Terminal box – older version EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 206: Operating Unit - Older Version

    Refer servicing to qualified service personnel. Analysenteil Datenleitung Achtung Nicht unter Spannung öffnen. Wartung nur durch qualifiziertes Personal. System Printer Drucker Power Fuses Netz Sicherungen RS 232 C EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...

  • Page 207: Terminal Box - Older Version

    ● No connection terminals for 24 VDC supply voltage (e.g. for fan) ● Fig. 52 Terminal box – older version V106 (LED) Fuse ratings → P. 172, §15.3.3 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 208 Calibration duration ......148 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 209 Disposal ........157 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 210 Glossary ........2 Installing the EuroFID analyzer ....50 GParam.error (malfunction message) .
  • Page 211 Mechanical installations (overview) ... . 30 Median value time (menu) ....121 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 212 Setting the date ......131 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 213 Zero gas ........147 EuroFID · Operating Instructions · 8011094 V 2.3 · © SICK AG...
  • Page 214 1 (800) 325-7425 – tollfree E-Mail support@sick.jp E-Mail info@sickusa.com Magyarország Phone +36 1 371 2680 E-Mail office@sick.hu Nederlands Phone +31 (0)30 229 25 44 More representatives and agencies at www.sick.com E-Mail info@sick.nl SICK AG | Waldkirch | Germany | www.sick.com...

Table of Contents
