IDEC HS5E Manual

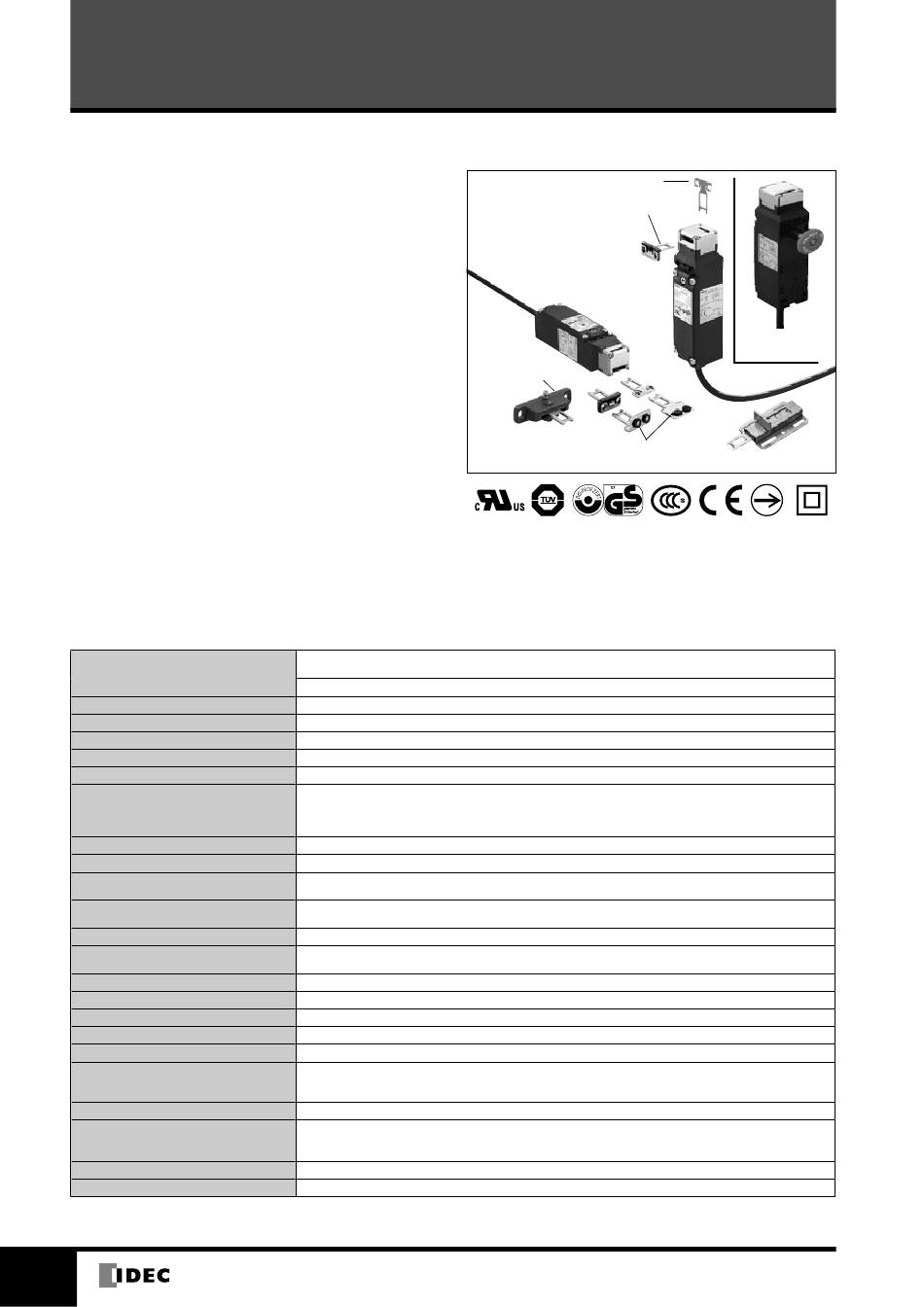

HS5E Miniature Interlock Switches with Solenoid
Small safety switch with four poles and solenoid.
Ideal for applications in tight spaces.
Compact body. 35 × 40 × 146 mm.
•
• Rear unlocking button for emergency escape available. Also
available is the rear unlocking button kit.
• A variety of circuits—dual safety circuit and four-circuit independent
outputs available.
• Gold-plated contacts.
• Spring lock and solenoid lock are available.
• The head orientation can be rotated, allowing 8 different actuator
entries.
• A metal entry slot ensures high durability.
• An actuator with rubber bushings alleviates the impact of actuator
entry into the slot.
• The actuator retention force is 1400N minimum (GS-ET-19).
• Integral cable design minimizes wiring, preventing wiring mistakes.
• LED indicator indicates the solenoid status.
• Double insulation structure.
Spring Lock
• Automatically locks the actuator without power applied to the
solenoid.
• After the machine stops, unlocking is completed by the solenoid,
providing high safety features.
• Manual unlocking is possible in the event of power failure or
maintenance.
Solenoid Lock
• The actuator is locked when energized.
• The actuator is unlocked when de-energized.
• Flexible locking function can be achieved for an application where locking is not required and sudden stopping of machine must be
prevented.
Specifications
Applicable Standards
Operating Temperature
Relative Humidity
Storage Temperature
Pollution Degree
Impulse Withstand Voltage
Insulation Resistance
(500V DC megger)
Electric Shock Protection
Degree of Protection
Shock Resistance
Vibration Resistance
Actuator Operating Speed
Direct Opening Travel
Direct Opening Force
Actuator Retention Force
Operating Frequency
Rear Unlock Button Mechanical Durability 3000 operations minimum (HS5E-∗∗L)
Mechanical Durability
Electrical Durability
Conditional Short-circuit Current
Cable
Cable Outside Diameter
Weight (approx.)
702
ISO14119, IEC60947-5-1, EN60947-5-1 (TÜV approval), EN1088 (TÜV approval), GS-ET-19 (BG ap-
proval), UL508 (UL recognized), CSA C22.2, No. 14 (c-UL recognized), GB14048.5 (CCC approval)
IEC60204-1/EN60204-1 (applicable standards for use)
–25 to +50°C (no freezing)
45 to 85% (no condensation)
–40 to +80°C (no freezing)
3
2.5 kV (between LED, solenoid and grounding: 0.5 kV)
Between live and dead metal parts: 100 MΩ minimum
Between live metal part and ground: 100 MΩ minimum
Between live metal parts:
Between terminals of the same pole: 100 MΩ minimum
Class II (IEC61140)
IP67 (IEC60529)
2
Operating extremes: 100 m/s (10G)
2
Damage limits: 1000 m/s (100G)
Operating extremes: 10 to 55 Hz, amplitude 0.35 mm minimum
Damage limits: 30 Hz, amplitude 1.5 mm minimum
0.05 to 1.0 m/s
Actuator HS9Z-A51:
Actuator HS9Z-A51A/A52/A52A/A53/A55: 12 mm minimum
80N minimum
1400N minimum (GS-ET-19) (See page 709 for actuator retention force.)
900 operations per hour
1,000,000 operations minimum (GS-ET-19)
100,000 operations minimum (operating frequency 900 operations per hour, load AC-12, 250V, 1A)
1,000,000 operations minimum (operating frequency 900 operations per hour, load 24V AC/DC.
100mA)
50A (250V) (Use 250V/10A fast acting type fuse for short-circuit protection.)
UL2464
HS5E-V: AWG22 (12-core, 0.3 mm
2
Others: AWG21(8-core: 0.5 mm
ø7.6 mm
400g (1m cable), 580g (3m cable), 770g (5m cable) . Add 20g for rear unlocking button.
Straight Actuator
(SUS304)
Right-angle Actuator
(SUS304)
Angle Adjustable
(Vertical)
w/Rubber Bushings
100 MΩ minimum
11 mm minimum
2
/core)
/core)
Rear unlocking
button
Sliding Actuator
