INTRODUCTION
This application note describes how to use the serial peripheral
interface (SPI) port on Analog Devices, Inc., high speed converters.
In addition, this application note defines the electrical, timing,
and procedural requirements for interfacing to these devices.
The implementation is compatible with industry-standard SPI
ports and employs, at minimum, a 2-wire mode and optional
chip select.
Interfacing to High Speed ADCs via SPI
by the High Speed Converter Division
CSB
SPI
SCLK
CONTROLLER
SDIO

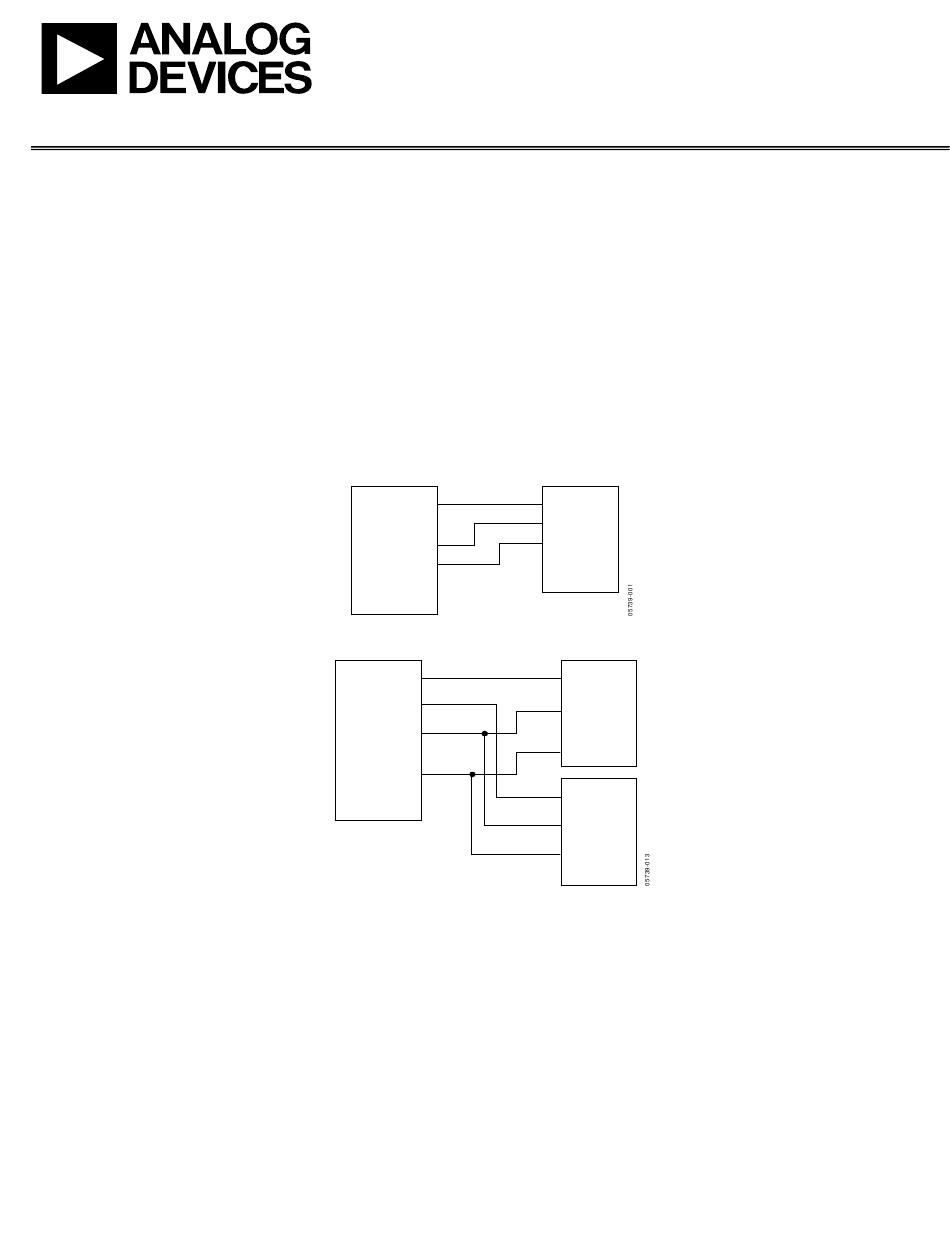

Figure 1. Single Device Control in 2-Wire Mode
CSB 0
CSB 1
SPI
CONTROLLER
SCLK
SDIO
Figure 2. Multiple Device Control in 2-Wire Mode
Rev. B | Page 1 of 20
APPLICATION NOTE
DEFINITION
The SPI port consists of three pins: the serial clock pin (SCLK),
the serial data input/output pin (SDIO), and the chip select bar
pin (CSB). Optionally, some chips may implement a serial data
out pin (SDO), which is referred to as 3-wire mode. To minimize
pin count, most chips omit this pin. However, if it is included, it is
used only for reading data from the device.
CSB
SCLK
CONVERTER
SDIO
INTERFACE
CSB
SCLK
CONVERTER
INTERFACE
DEVICE 1
SDIO
CSB
SCLK
CONVERTER
INTERFACE
DEVICE 2
SDIO
AN-877
