Service Manual

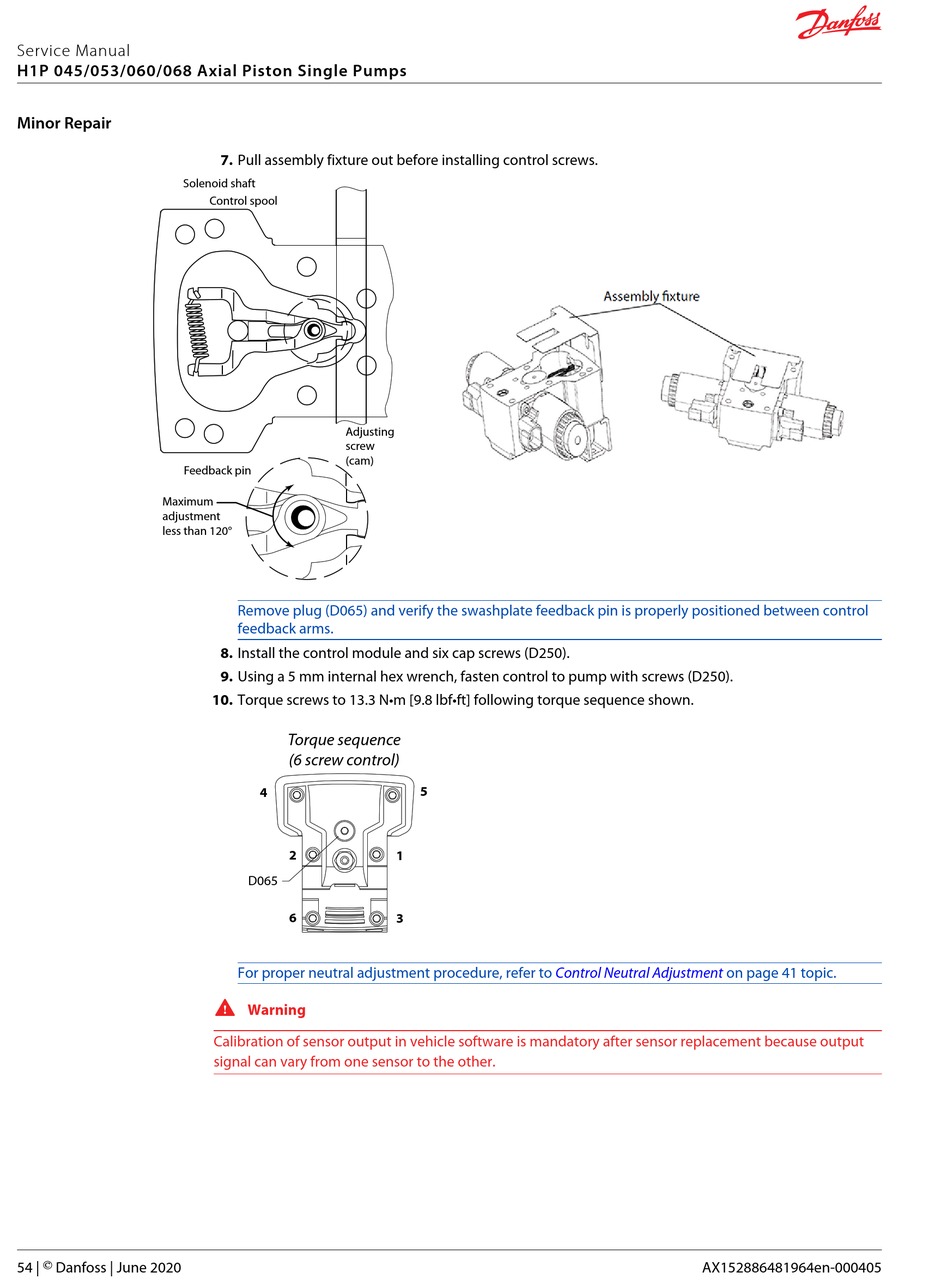

H1P 045/053/060/068 Axial Piston Single Pumps
Minor Repair
Solenoid shaft
Feedback pin
Maximum
adjustment
less than 120°
54 |
©
Danfoss | June 2020
7. Pull assembly fixture out before installing control screws.
Control spool
Adjusting
screw
(cam)
Remove plug (D065) and verify the swashplate feedback pin is properly positioned between control
feedback arms.
8. Install the control module and six cap screws (D250).
9. Using a 5 mm internal hex wrench, fasten control to pump with screws (D250).
10. Torque screws to 13.3 N•m [9.8 lbf•ft] following torque sequence shown.
Torque sequence
(6 screw control)
4
2
D065
6
For proper neutral adjustment procedure, refer to
W
Warning
Calibration of sensor output in vehicle software is mandatory after sensor replacement because output
signal can vary from one sensor to the other.
5
1
3
Control Neutral Adjustment
on page 41 topic.
AX152886481964en-000405
