H1 System Schematic - Danfoss H1P 045 Service Manual

Service Manual
H1P 045/053/060/068 Axial Piston Single Pumps
Introduction

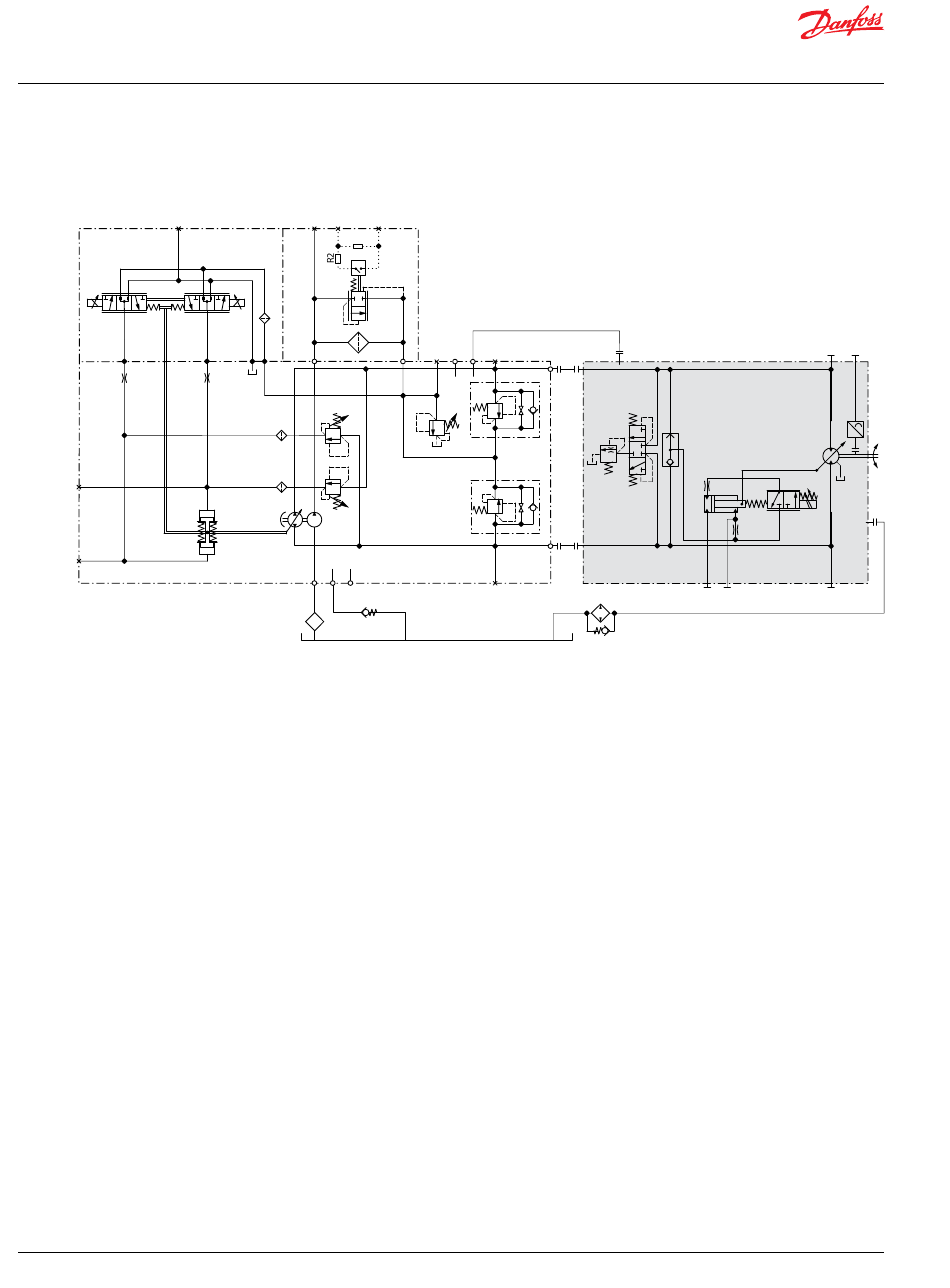

H1 system schematic

System schematic H1 pump and H1 motor with EDC
M14
C2
F00B F00A
M5
M4
The schematic above shows the function of a hydrostatic transmission using an H1 axial variable displacement pump with electric
proportional displacement control (EDC) and an H1 bent axis variable displacement motor with electric proportional control (L*) and
integrated loop flushing device.
