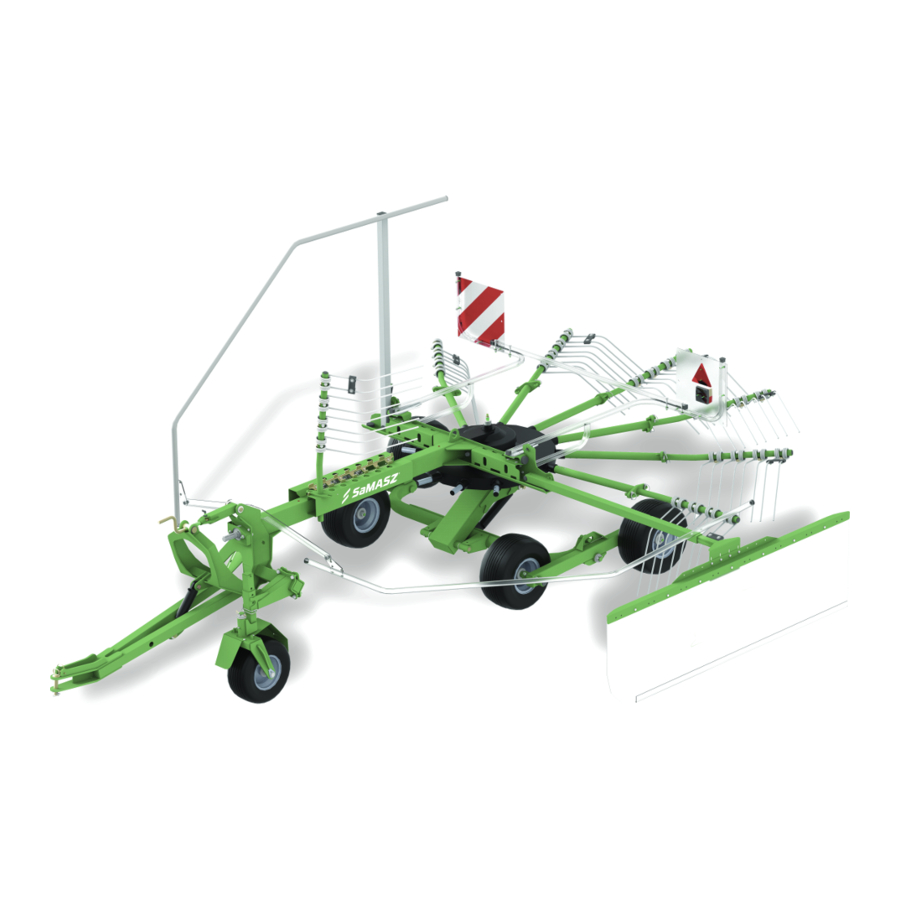

Rotary rake
Hide thumbs Also See for UNO 410:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
ROTARY RAKE
UNO 410
UNO 440
UNO 470
Serial number:
Translation of the original operator's manual
SaMASZ Sp. z o.o.
Poland, 16-060 Zabłudów, ul. Trawiasta 1
– English –
Established – 1984
NIP PL-966-159-29-76
tel. (+48) (85) 664 70 31
fax (+48) (85) 664 70 41
e-mail: samasz@samasz.pl
www.samasz.pl
IN0327EN003
2017.03.02
EDITION No 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNO 410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SaMASZ UNO 410

Summary of Contents for SaMASZ UNO 410

  • Page 1 SaMASZ Sp. z o.o. Poland, 16-060 Zabłudów, ul. Trawiasta 1 Established – 1984 NIP PL-966-159-29-76 tel. (+48) (85) 664 70 31 fax (+48) (85) 664 70 41 e-mail: samasz@samasz.pl www.samasz.pl OPERATOR'S MANUAL ROTARY RAKE UNO 410 UNO 440 UNO 470...
  • Page 2 Keep this manual for future use. Well-proven design and quality materials ensure high reliability and durability of SaMASZ machines. We congratulate you on the purchase of your new SaMASZ rakes and wish you much pleasure and the very best experience resulting from its operation.

  • Page 3: Table Of Contents

    Operator's manual Rotary rake UNO Table of contents page 1. IDENTIFYING THE MACHINE ................. 2 2. INTRODUCTION ......................2 3. DESIGNATION ......................3 3.1. Technical data ..........................3 3.2. Design and operation ........................4 3.3. Standard equipment and spare parts ....................4 4.

  • Page 4: Identifying The Machine

    Operator's manual Rotary rake UNO IDENTIFYING THE MACHINE Data plate (Fig. 2) is permanently mounted on the mower's main frame in place shown below in Fig. 1. Fig. 1. Data plate placement Fig. 2. Data plate Data plate includes: - name and adress of the manufacturer, - model year, - CE marking means, that the produce - version number,...

  • Page 5: Designation

    Willful modifications to the rake may lead to revoking of the warranty. 3.1. Technical data Tab. 1. Technical data Rake type: UNO 410 UNO 440 UNO 470 Operating width [mm] 4100 4400 4700 Transport width (min.) [mm]...

  • Page 6: Design And Operation

    Operator's manual Rotary rake UNO 3.2. Design and operation Fig. 3. Overview of double-rotor rake UNO 410 9 – Tine 1 – Tiller 10 – Warning plate with lighting 2 – Front support wheel 11 – Guard lock 3 – Drive shaft inlet 12 –...

  • Page 7: Safety Advice And Warning

    Operator's manual Rotary rake UNO Recommended PTO shaft Tab. 2. Rake Power Length Momentum Symbol Clutch Manufacturer Remarks UNO 410 1300- Overload Bondioli UNO 440 8G4R140CEWR7001 1851 M=800Nm Pavesi UNO 470 Fig. 4. Shaft lubrication NOTE: PTO shaft lubrication frequency must be respected. Points shown on Fig.
  • Page 8 Operator's manual Rotary rake UNO The bolts and other fasteners should be inspected on regular basis. Operating with damaged or  worn fasteners is not admissible. When operating the rake, please comply with the Resolution of the Minister of Agriculture and ...

  • Page 9: Transport

    Operator's manual Rotary rake UNO 4.2. Transport Any modifications in the rake's position are possible only if no unauthorized personnel is  around (children in particular). When transported the rake shall have mobile warning light device and warning triangle mounted ...

  • Page 10: Pto Shaft

    Before any operation make sure whether PTO rpm have proper rotational direction.  4.5. Residual risk Despite the fact, that SaMASZ company – the manufacturer of the rake takes the responsibility for the rakes design and manufacturing, in order to eliminate hazard, certain risk when operating the machine is unavoidable.

  • Page 11: Safety Decals And Their Meaning

    Operator's manual Rotary rake UNO Never operate the rakes being under influence of alcohol, drugs, or strong medicines.  Wear clothing that is not too loose, nor too tight. Too loose clothing elements may be pulled in  by the machine's rotating parts. The rake cannot be operated by children nor handicapped people.
  • Page 12 Operator's manual Rotary rake UNO N-40 N-49 N-50 N-55 Transport hook for lifting Do not get too close to Do not get under the rake of the rake the hoist of the tractor during operation of the hoist N-124 N-159 N-136 N-223 Raking height adjustment...
  • Page 13 Operator's manual Rotary rake UNO N-201 N-52 N-100 N-101 Admissible transport Use protective gloves Use protective glasses Use protective clothing speed N-102 N-103 N-104 Use head protection Use hearing protection Use protective shoes N-52; N-100 N-101; N-102 N-136 N-159; N-223 N-103;...

  • Page 14: Operating Rake

    Operator's manual Rotary rake UNO OPERATING RAKE 5.1. Mounting rake on tractor UNO rake is designed to mount on tractors with 3-point linkage beam (2). Rake's tiller (1) should be coupled with beam (2) with use of pin (3) and protected with cotter. Fig.
  • Page 15 Lift up rake to transport position, close shut-off valve (Fig. 10) found on rake's linkage and lift  up support leg found on tiller (Fig. 8). UNO 410 – 4,2 m UNO 440 – 4,5 m UNO 470 – 4,8 m UNO 410 –...
  • Page 16 Operator's manual Rotary rake UNO UNO 410 – 2,7m UNO 440 – 2,7m UNO 470 – 2,8m UNO 410 – 5,0m UNO 440 – 5,5m UNO 470 – 5,5m Gear's transport locking UNO 410 – 1,9m UNO 470 – 2,5m Rake's transport position with four outer arms dismounted Fig.

  • Page 17: Preparing Rake For Transport On Public Roads

    Operator's manual Rotary rake UNO Gear's vertical axis Fig. 14. Rake's transport position with four arms dismounted NOTE: Driving speed should be adjusted to current road conditions. Too high a transport speed when driving on uneven ground poses risk of bending gear's vertical axis.
  • Page 18 Operator's manual Rotary rake UNO In order to determine minimal shaft length: set aggregated rakes in working position, / (by means of 3-point linkage, adjust connector end of  machine’s PTO P on the most approximate height, on which tractor’s PTO is mounted) take measurement of distance between two shafts as provided in Fig.

  • Page 19: Switching The Rake From Transport To Operating Position

    5.6. Preparing the rake for operation NOTE: During storing of the machines in company SaMASZ the cylinders are protected by special grease in order to secure them against weather which may cause their premature wear. Before starting the operation excess grease should be removed from the cylinders.
  • Page 20 Operator's manual Rotary rake UNO NOTE: Prior to lowering of machine's rotors make sure that no unauthorized personnel is around. Adjust height of ground following wheel in order to properly set gear in working position,  NOTE: Adjusting raking height is possible only with trolley lifted up (Fig. 19). Down Fig.

  • Page 21: Operation

    Operator's manual Rotary rake UNO lower the rake once again,  set rear 3-point linkage links for such height H, so that front ground following wheel stays  firmly on the ground and there is clearance on tiller's cylinder (Fig. 21) in order to enable ground following by front rotor, if need be, (e.g.

  • Page 22: Clogging Of The Rake

    Operator's manual Rotary rake UNO 5.8. Clogging of the rake In order to avoid clogging, mowing speed should be adjusted to the mentioned conditions. In order to remove the machine clogging, lower the cutter bar onto the ground, disconnect the drive, take ignition key off and pay particular attention.

  • Page 23: Daily Maintenance

    Operator's manual Rotary rake UNO 6.2. Daily maintenance Upon daily completion of operation the following should be performed: inspect all visible external parts and assemblies with their connection; all loosen screws shall be  tighten and worn or damaged parts replaced, wash the rake with water under pressure after each operation, ...

  • Page 24: Lubricating

    (or other equivalent designed for lubricating bearings in temp. between -30 C and + 130 Tab. 5. Oil capacity Model Oil capacity [1] Oil type UNO 410 SAE80W/90 API GL-4 UNO 440 UNO 470 – – Gear lubrication points (UNO 470) Fig.

  • Page 25: Defects And Their Repairs

    Operator's manual Rotary rake UNO Fig. 26. Joint lubrication points DEFECTS AND THEIR REPAIRS Tab. 6. Defects and their repairs Defect Reason Repair Damaged or dirty components Replace or clean connecting of hydraulics components of the hydraulics The rake does not lift/lower hydraulically Damaged hydraulic unit of the Check condition of hydraulic...

  • Page 26: Withdrawal From Use

    3. Faults or damages should be submitted personally, on letter or by telephone. Repairs shall be carried out within 14 days. Any repair which is subject to warranty should be carried out by an authorized SaMASZ dealer. 4. Warranty claims regarding replacing of the product or repayment are considered within 14 days by the Manufacturer.
  • Page 27 Operator's manual Rotary rake UNO • damage of the gearbox, • bending of working arms, f) random events or others for which the warrantor is not responsible, g) bending or breaking transmission connecting rod, h) bending vertical axis if not adjusting transport speed to road unevenness ahead, i) bending or breaking transmission connecting rod, j) wearing parts: •...

  • Page 28: Warranty Repairs Record

    Operator's manual Rotary rake UNO NOTE: The SaMASZ company constantly works on development of all of its machines types and models. Therefore, there is always a possibility in change of form, equipment and technology of the delivered machines. No claims can arise from data, drawings and descriptions included herein as well as in the spare part list.
