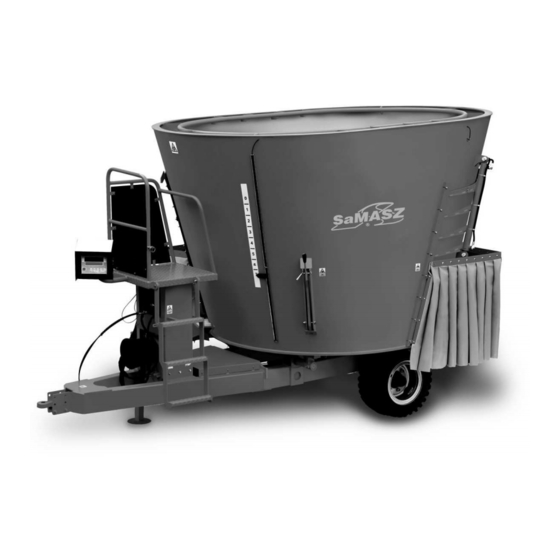

OPERATOR'S MANUAL
TEDDER WAGONS OptiFEED
UNO 600 (S)/(L)
UNO 800 (S)/(L)
UNO 1000 (S)/(L)
UNO 1200 (S)/(L)
UNO 600 BASIC
UNO 800 BASIC
UNO 1000 BASIC
Serial No:
The original instruction
SaMASZ Sp. z o.o.
Poland, 15-161 Białystok, ul. Trawiasta 15
Rok założenia – 1984
fax (+48) (85) 664 70 41
e-mail: samasz@samasz.pl
DUO 1200 (S)
DUO 1400 (S)
DUO 1600
DUO 1800
DUO 2000
DUO 2200
tel. (+48) 664 70 31
www.samasz.pl
IN130EN001
2015.01.07
EDITION 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNO 600 and is the answer not in the manual?

Questions and answers

Related Manuals for SaMASZ UNO 600

Summary of Contents for SaMASZ UNO 600

  • Page 1 SaMASZ Sp. z o.o. Poland, 15-161 Białystok, ul. Trawiasta 15 Rok założenia – 1984 tel. (+48) 664 70 31 fax (+48) (85) 664 70 41 e-mail: samasz@samasz.pl www.samasz.pl OPERATOR'S MANUAL TEDDER WAGONS OptiFEED UNO 600 (S)/(L) DUO 1200 (S) UNO 800 (S)/(L)
  • Page 2 NOTE: Always shut down the tractor's motor and take out the keys before you get inside the machine, open guards, or adjust sensors. Under no condition, do not get on or inside the machine when in operation. NOTE: Tedder wagon without previous familiarizing with its contents as well as by unauthorized personnel, particularly by children, is strictly forbidden.

  • Page 3: Table Of Contents

    Operating manual Wozy paszowe OptiFEED DEVICE IDENTIFICATION ....................2 USAGE ............................ 2 SAFETY RULES ........................3 3.1. CONDITIONS OF THE MACHINE USE ................. 3 3.2. GENERAL SAFETY INSTRUCTIONS ................... 3 3.3. WARNING SYMBOLS ......................4 TRACTOR SELECTION ...................... 5 4.1. CONNECTING AND DISCONNECTING ................

  • Page 4: Device Identification

    Instruction manual Fodder wagons OptiFEED 1. DEVICE IDENTIFICATION Fig. 1. Identification plate The identification plate contains: A. full name of the manufacturer, G. QC mark, B. serial no., H. CE mark means that the rake complies with C. symbol, Directive 2006/42/EC and harmonized D.

  • Page 5: Safety Rules

    Instruction manual Fodder wagons OptiFEED 3. SAFETY RULES Most of the accidents stem from inappropriate exploitation of the machine or inadequate knowledge of machine’s working principles. Fodder wagon cannot be designed in such a way to guarantee full safety as well as high work effectiveness. With that in mind, it is crucial that the user uses the machine in appropriate way and do not cause any danger to himself or other people.

  • Page 6: Warning Symbols

    Instruction manual Fodder wagons OptiFEED Cleaning the machine, Removing any part of the machine, Regulating the machine. 11. Always block the wheels when working under the machine. 12. Never turn the machine on until all bystanders are in safe distance. 13.

  • Page 7: Tractor Selection

    Instruction manual Fodder wagons OptiFEED 5. Risk of falling 6. Hearing protection must be worn Be very careful while climbing the control- If the noise in the work space exceeds 85dB, always tower. wear hearing protection. 7. Use covers 8. Risk of crushing Do not make changes to the covers or turn on the Never stand between a tractor and a fodder wagon machine when a cover is missing.

  • Page 8: Securing The Machine

    Instruction manual Fodder wagons OptiFEED Make sure that the power take-off is connected properly. That means the shear pin has been put on and restraining device has been mounted from both sides. Power take-off has to be properly secured. If the cover is damaged it should be replaced immediately.

  • Page 9: Counterblades

    Instruction manual Fodder wagons OptiFEED Fig. 2. Mixer feeder — design 1. Drawbar 7. Distributor 2. Scale 8. Unloading covers 3. Ladder 9. Ring preventing unloading 4. Container 10. Weight sensor 5. Counterblade 11. Oil tank 6. Double reduction gearbox 12.

  • Page 10: Auger

    Instruction manual Fodder wagons OptiFEED WARNING! NEVER REGULATE COUNTERBLADES WHILE THE MACHINE IS STILL WORKING. DO NOT REMOVE THE COUNTERBLADES. Fig. 3. Counter-knife locking 5.2. AUGER There are blades on the auger, each of them mounted by three screws. The base in the lower part of the blade is used to strengthen it.

  • Page 11: General Fodder Wagon Manual

    Fitting the drawbar – model DUO S – The fitting of a drawbar in DUO S The fitting of a drawbar works differently than in other SaMASZ fodder wagons. Regulating the drawbar requires unscrewing the screws and moving the drawbar to a desirable height (Fig. 6):...
  • Page 12 Instruction manual Fodder wagons OptiFEED Fig. 6. Adjusting the drawbar – DUO S Keep in mind that by rotating the drawbar by 180° in DUO S unit, you need to make sure that the part of a drawbar with a sensor needs to be rotated again (the label on the drawbar should always be visible from the top) (Fig.

  • Page 13: Power Take Off

    Instruction manual Fodder wagons OptiFEED 6.2. POWER TAKE OFF It is recommended to use power take-off that came with the fodder wagon. If there is a need to change its length, please follow the manufacturer’s manual. It also refers to maintenance and lubrication.

  • Page 14: Machine's Utilization

    Instruction manual Fodder wagons OptiFEED 4. Check if power take-off is movable. If it is too long or too short it may damage the tractor as well as the wagon. Check if the power take-off’s covers are damaged or are stuck. Check if cover’s restraining device is mounted properly and will not be damaged anywhere or is not too strained.

  • Page 15: Maintenance

    Instruction manual Fodder wagons OptiFEED One auger fodder wagons UNO (BASIC) UNO L UNO S MODEL Capacity Maximum load 3,0 3,5 3,0 3,5 Two auger fodder wagons DUO (S) MODEL Capacity Maximum load 5,0 6,55 7,4 8.4. MAINTENANCE In order to keep fodder wagon in standby mode, proper maintenance is required. Every day, before using the machine, perform a review.

  • Page 16: Cleaning

    Instruction manual Fodder wagons OptiFEED Fodder’s quality depends on adequate sharpening of auger’s blades. In order to keep fodder’s quality high, avoid overloading the tractor and the wagon during the work, increase its longevity and reduce fuel consumption, check auger’s blades sharpness once a month. Damaged blades should be replaced as soon as possible.
  • Page 17 Instruction manual Fodder wagons OptiFEED To make sure that the power take-off is working properly, check PTO’s cross brace lubrication every 14 days. In order to do so, or to lubricate it, unlock the guards from both sides (Fig. 10). Fig.

  • Page 18: Tensioning Of The Discharge Conveyor

    Instruction manual Fodder wagons OptiFEED Fig. 12. Lubricating discharge indicator It is crucial to remember about periodic lubrication of flush grease nipples located in bearings, support leg and levers controlling the distributor which will guarantee safe operating of the machine. 8.7.

  • Page 19: Distributor's Lines Regulation

    Instruction manual Fodder wagons OptiFEED 8.8. DISTRIBUTOR’S LINES REGULATION Daily utilization of the fodder wagon may result in distributor’s lines elongating. It is a natural symptom. Adequately regulated distributor’s lines guarantee proper functioning of hydraulically controlled unloading windows. Improperly adjusted distributor’s lines may be the cause of improper closing or opening of the windows.

  • Page 20: Oil Level In The Gearbox

    Instruction manual Fodder wagons OptiFEED After making adjustments to distributor’s lines, lock the nuts again. It is important to periodically check distributor’s lines proper adjustments on your own. 8.9. OIL LEVEL IN THE GEARBOX Every week oil level in the gearbox should be checked. It should oscillate between signs MIN and MAX.
  • Page 21 Instruction manual Fodder wagons OptiFEED The electronic control panel is equipped with a large, clear display to show messages regarding the machine's current work mode and on-screen buttons for individual functions. Below is detailed description of the control panel “push and hold” buttons. Control panel ON/OFF button.
  • Page 22 Instruction manual Fodder wagons OptiFEED Mixer feeder working speed control – “SPEED UP” MODE. Mixer feeder working speed control – “SPEED DOWN” MODE. Function key RETURN. Function key RETURN TO PREVIOUS MENU. Function key START / PAUSE. Hold work mode / resume work mode. Function key PLUS –...

  • Page 23: Failures, Service

    THE DOWEL COVERING THE PTO. THE DOWEL SHOULD BE EXCHANGED WITH A DOWEL OF THE SAME CLASS. WARNING! DULL AUGER’S BLADES MAY BE A CAUSE OF THE DOWEL BEING CUT. In case of failure of technical difficulties with OptiFEED fodder wagons, please contact us by mail: • serwis@samasz.pl...

  • Page 24: Spare Parts

    Instruction manual Fodder wagons OptiFEED 10. SPARE PARTS In order to facilitate the process of picking appropriate spare parts, in order form please include following data: Machine’s unit and serial number (located on the rating plate Machine’s capacity in cubic meters. Code and description of spare parts.
  • Page 25 Instruction manual Fodder wagons OptiFEED 2. With 24-month warranty, after 12 months it is required to carry out a technical inspection on charge. 3. The warranty does not cover: a) mechanical damages to the device, b) damages being result of fire, flooding, lightning or other natural hazards, c) devices subjected to modifications, repairs or disassembly by an unauthorized service point, d) normally wearing parts (knives, tires, etc.),...
