Note: for internal blower installation, disregard the
instruction on this next page and consult the instruction
on the previous pages (See pages 12-13).
Note 2: Refer to the CBE-1000 manual for instructions on
mounting the external blower to a roof or exterior wall.
The manual is available on our website and is included
in the external blower packaging.
WARNING!
Do not use the rectangular transition for External
blower installation, the use of this transition is , in this
case, forbidden!
Use only a 8" Round Pipe! See Installation step 9 on
page 17 for further informations.

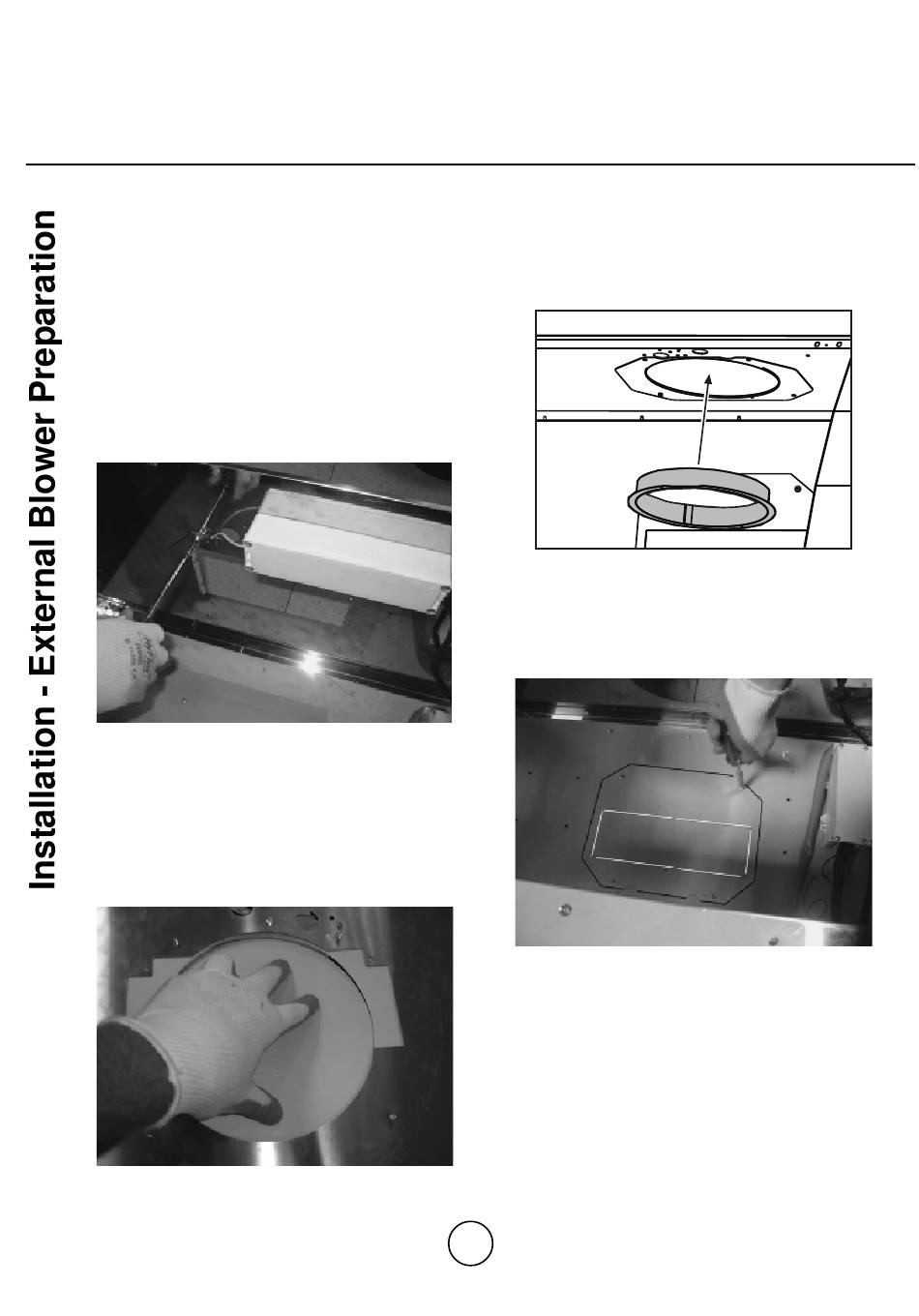

Vertical discharge

• Remove the cover/rectangular transition support plate
from inside the hood on upper panel.
Locate and remove 4 screws that attach it.
• Install the supplied round transition collar to the
previously installed blower support plate. Align the
screw holes and attach securely.
• Install the supplied round transition collar to the
previously installed cover/round transition support
plate from inside the hood. Align and attach with 2
screws securely.

Horizontal discharge

• From the inside of the hood, remove (rear side) the
cover/rectangular transition support unscrewing the 4
screws that fix it to the body of the range hood.
• Remove the cover/rectangular transition support plate
from inside the hood on back panel.
• Install the supplied cover/round transition support
plate using the previously removed 4 screws to the
same location of the removed internal blower support
plate. Align the screw and attach securely.
• Remove the round knock out.
14
