Summary of Contents for Reed Instruments R8060-NIST

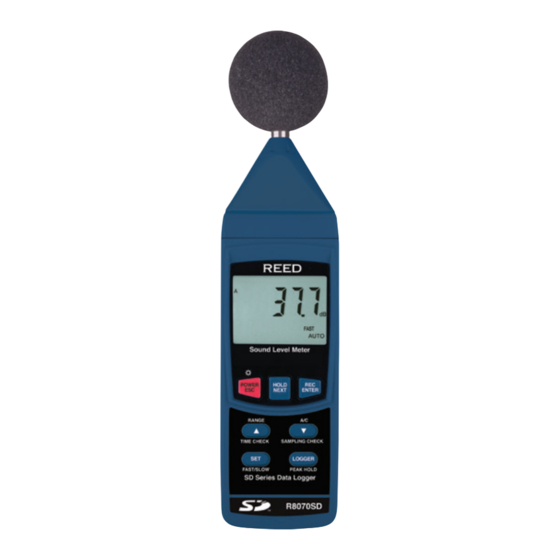

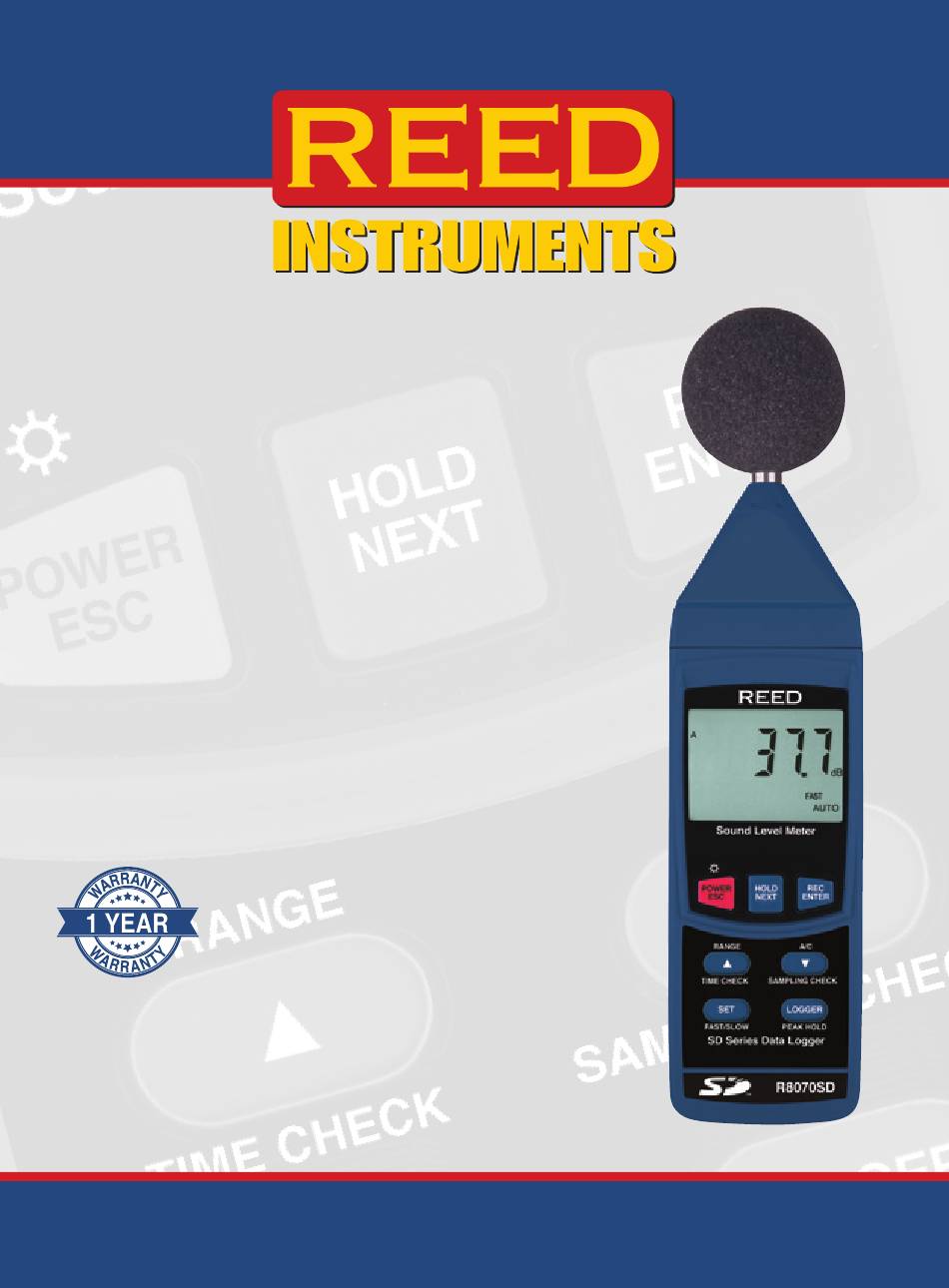

- Page 1 R8070SD Data Logging Sound Level Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 2 Enabling/Disabling the Beeper Sound (bEEP) ........12 Setting the Data Logging Sampling Rate (SP-t) ......... 12 Formatting the SD Card (Sd F) ............13 Checking Time and Date ..............13 Checking Sampling Rate ..............13 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 3 If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 4 • Low battery indicator and auto shut off • The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc. Included • Windshield Ball • Soft Carrying Case • Batteries REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 5 Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) External Memory: Yes, expandable up to 16GB with SD card (optional) Auto Shut-Off: Yes (after 10 minutes/off) Kick Stand: Tripod Mountable: continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 6 +1dB -0.8dB ±3.0dB -1.1dB -3dB ±5.0dB Time Weighting (Fast & Slow) Characteristics Time Weighting Max Response Reference Tolerance Characteristics Continuous Signal (IEC 61672 class 2) F (Fast) -1.0dB ±1.0dB S (Slow) -4.1dB ±1.0dB REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 7 4. Up/Range/Time Check Button 14. AC Output Jack 5. SET/FAST/SLOW Button 15. Calibration Potentiometer 6. SD Card Slot 16. RS-232 Output Jack 7. HOLD/NEXT Button 8. REC/ENTER Button 17. Power Adapter Input 9. Down/A/C/SAMPLING CHECK Button REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 8 3. Data Hold Indicator 10. Unit of Measure 4. Record Mode Indicator 11. Time Weighting Indicator 5. Maximum and Minimum Indicator 12. dB Range indicators 6. Data logging Status Indicator 13. Date/Time Stamp REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 9 There are three manual dB ranges to select from and auto range. The manual ranges are described as follows: Range 1: 30 to 80dB range Range 2: 50 to 100dB range Range 3: 80 to 130dB range continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 10 To exit recording mode and resume normal operation, press and hold the REC button for two seconds. Note: When in recording mode the POWER button is disabled and the meter cannot be turned off. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 11 Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. The internal clock will keep accurate time when the meter is powered off. When new batteries are installed the clock will have to be reset. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 12 5, 10, 30, 60, 120, 300, 600, 1800, and 3600 seconds. Press the ENTER button to confirm selection and skip to next parameter. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 13 Note: It is recommended to use a class 4 SDHC memory card between 1 and 16Gb. Insert the SD memory card in the slot at the bottom of the meter. The card must be inserted with the label side facing the rear of the meter. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 14 Press the LOGGER button to enter automatic data logging mode. The "REC" icon will continuously flash while the "LOGGER" will flash every time a reading is stored at the user selected sampling rate. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 15 Unit 19-07-10 0:05:02 42.5 19-07-10 0:05:04 45.3 19-07-10 0:05:06 19-07-10 0:05:08 58.5 19-07-10 0:05:10 58.1 19-07-10 0:05:12 19-07-10 0:05:14 50.8 19-07-10 0:05:16 41.1 19-07-10 0:05:18 41.5 19-07-10 0:05:20 41.1 19-07-10 0:05:22 44.7 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 16 Insert Microphone into the sound calibrator's microphone adapter. Power on the sound calibrator (R8090). If the measured value is not within "94 ±0.2" dB, adjust the meter's calibration potentiometer until the display matches the output of the calibrator (94.0dB). continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 17 +71.5 dB Reading Decimal Place 0-3 Positive (+) = 0, Negative (-) = 1 dB = 17 3.5mm Terminal to RS-232 Serial Connection RS-232 Mono Jack Pin 2 (RX) Sleeve Pin 4 (DTX) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 18 R1500 Tripod CA-05A Soft Carrying Case R8888 Deluxe Hard Carrying Case Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.REEDInstruments.com. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 19 • If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 20 REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance.
- Page 21 TEST & MEASURE WITH CONFIDENCE Access our Product Catalog Over 200 portable test and measurement instruments REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
- Page 22 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
