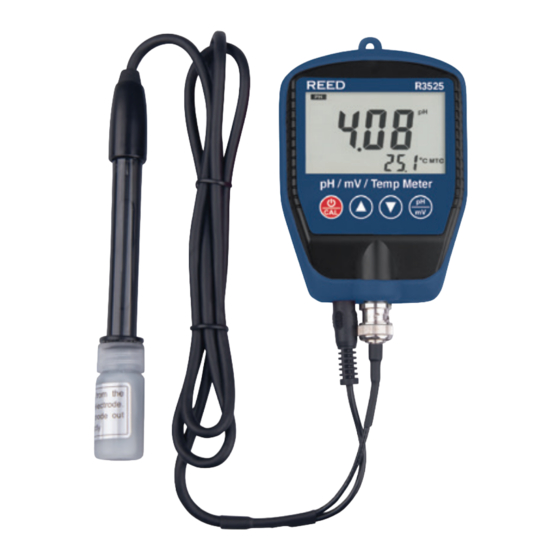

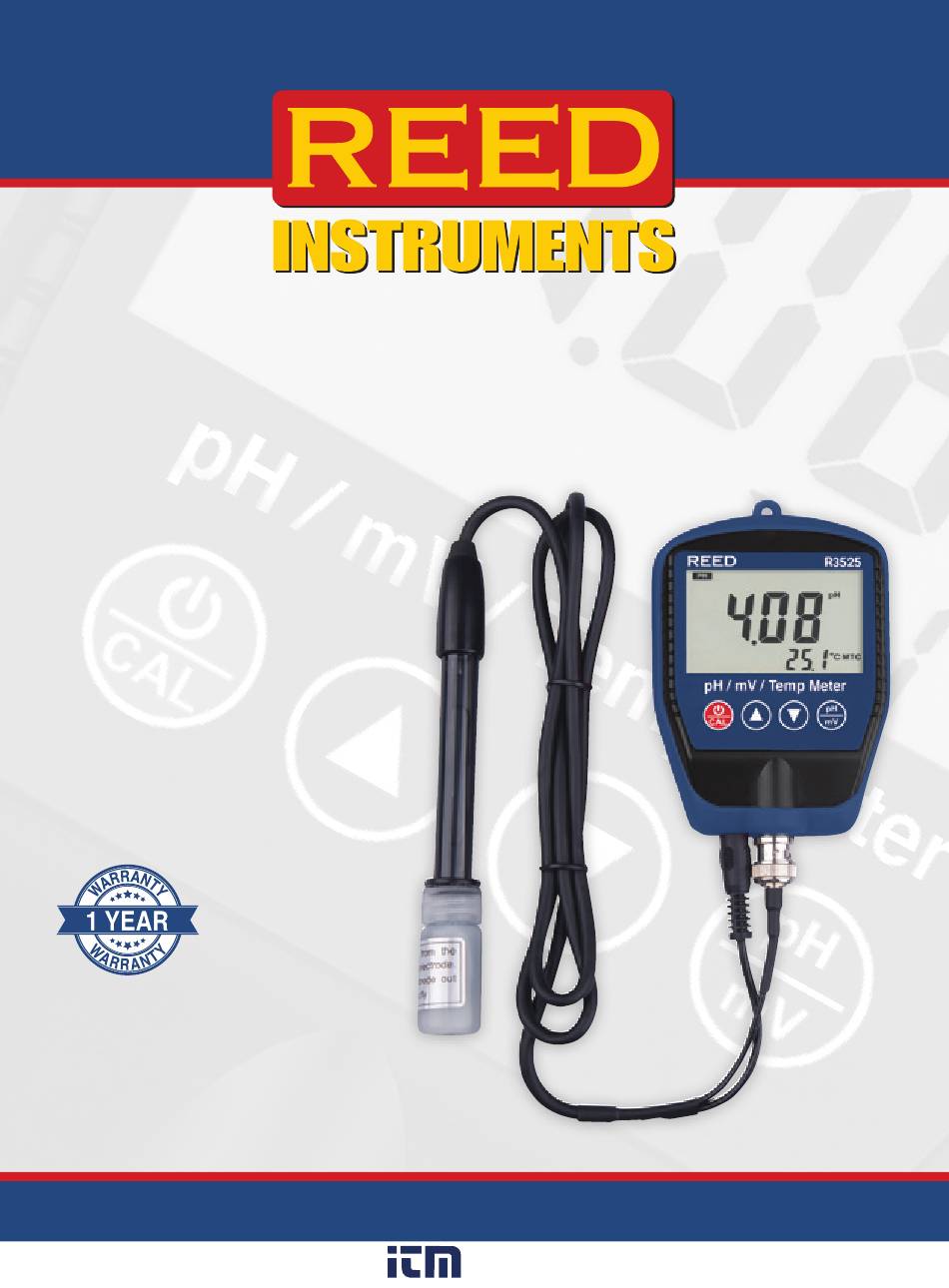

- Page 1 R3525 pH/mV Meter with Temperature Instruction Manual 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Product Disposal and Recycling ..............12 Product Support ..................12 Introduction Thank you for purchasing your REED R3525 pH/mV Meter with Temperature. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Servicing should only be provided by an authorized service center. Features • Measures pH and mV levels in liquids • Measures ORP (mV) levels in water with R3525-ELECTRODE2 (optional) • Microprocessor provides automatic buffer solution recognition • Dual LCD displays pH or mV and Temperature simultaneously •... -
Page 4: Specifications
Measuring Range: 0.00 to 14.00pH -1999 to 2000mV Accuracy: ±(0.01pH +1 dgt.) ±(2mV +1 dgt.) Resolution: 0.01pH 0.1/1mV ORP (Optional R3525-ELECTRODE2 required) Measuring Range: -1999 to 2000mV Accuracy: ±(2mV +1 dgt.) Resolution: 0.1/1mV Temperature Measuring Range: 32 to 230°F (0 to 110°C) Accuracy: ±0.4°F (0.2°C) +1 dgt... -
Page 5: Instrument Description
Instrument Description 1. LCD Display 2. POWER/Calibration Button 3. Up Button 4. Temperature Input Jack 5. Electrode Input (BNC) Jack 6. Power Adapter Input Jack 7. Down Button 8. pH/mV Function Button Display Description 1. Measurement Mode Indicator 5. Low Battery Indicator 2. -
Page 6: Operating Instructions
This can be attained using manual or automatic temperature compensation. The electrode included with the R3525 automatically compensates for solution temperature changes with the electrode's built-in thermometer. The temperature compensation is active when the solution temperature deviates from room temperature. -
Page 7: Ph Measurement Mode (Automatic Temperature Compensation)
pH Measurement Mode (Automatic Temperature Compensation) Note: Electrodes should always be rinsed before and between samples with distilled or DI (de-ionized) water to remove all traces of previous test solution or storage solution. Connect the included pH Electrode into the Input (BNC) Jack and temperature input jack. -
Page 8: Mv Output Measurement Mode (Ph Electrode)
The LCD will display the pH electrode output in mV. ORP Measurement Mode (Optional R3525-ELECTRODE2 required) Connect the ORP Electrode into the Input (BNC) Jack. Press the button to select mV (ORP) mode. - Page 9 Prepare buffer solutions for calibration. It is recommended to start with pH 7.00 buffer solution, followed by either pH 4.00 or pH 10.00 (whichever is nearest to the expected sample value). Use the pH 4.00 and pH 7.00 buffer solutions when measurements are expected to be on the lower side of the pH scale.
-
Page 10: Orp Calibration
ORP Calibration (Optional R3525-ELECTRODE2 ORP Electrode required) Calibration is not required for ORP mode, however, you can spot check ORP measurements with the use of a specific ORP standard solution to ensure the electrode is still within specifications. Battery Replacement When the low battery icon appears on the LCD, the battery must be replaced. -
Page 11: Accessories And Replacement Parts
Accessories and Replacement Parts • R3525-ELECTRODE Replacement pH Electrode • R3525-ELECTRODE2 Optional ORP Electrode • R3525-ADP Power Adapter • R1404 pH Buffer Solution, 4.01, 500ml • R1407 pH Buffer Solution, 7.0, 500ml • R1410 pH Buffer Solution, 10.0, 500ml • R1420 Electrode Storage Solution, 500ml •... -
Page 12: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 13 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! 1.800.561.8187 information@itm.com www. .com...
- Page 14 1.800.561.8187 information@itm.com www. .com...
