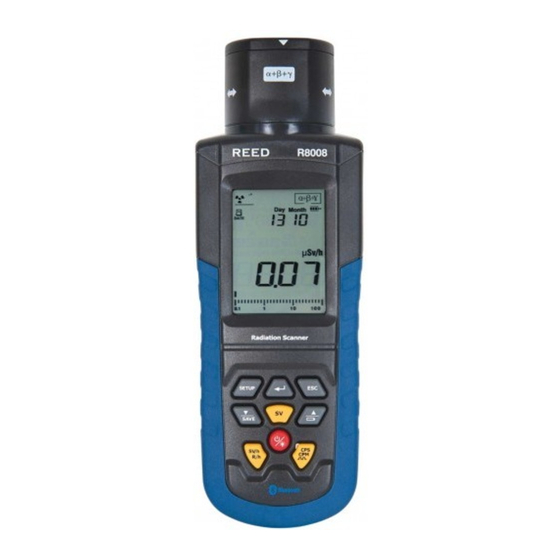

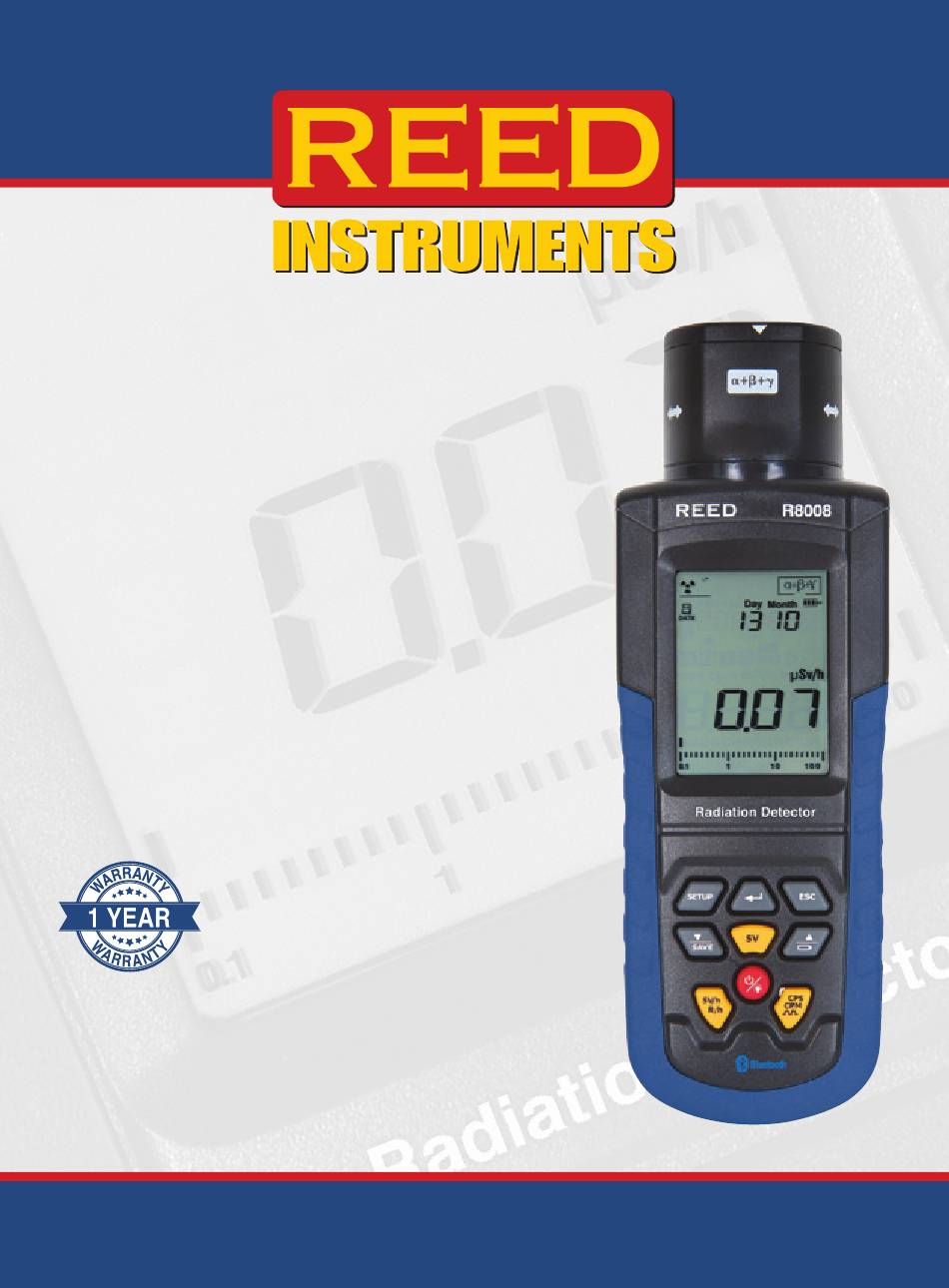

- Page 1 R8008 Radiation Detector Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Setting Average Measurement Time ............12 Turning Bluetooth Data Transmission ON/OFF ..........12 Battery Replacement ..................13 Accessories and Replacement Parts ..............13 Product Care ....................13 Product Warranty ....................13 Product Disposal and Recycling ..............14 Product Support ....................14 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R8008 Radiation Detector. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO 9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Specifications
Real-Time Clock and Date Stamp: Internal Memory: Yes (up to 4000 groups of data) Auto Shut-Off: Yes (after 10 minutes/off) Low Battery Indicator: Power Supply: 4 AA Batteries PC Connectivity: Yes (Wireless via Bluetooth) Software: Yes (Included) Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 80% Dimensions: 7.9 x 2.8 x 1.9" (200 x 70 x 45mm) Weight: 7.3oz (206g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Included
• Hard Carrying Case • Batteries Instrument Description 1. Sensor Window of G.M. Geiger Counter Tube 2. Ray Selection Switch 3. LCD Display 4. Setup Button 5. Data Storage/Down Arrow R8008 6. Power/Backlight Button 7. Unit Button 8. Enter Button Radiation Detector 9. ESC Button 10. Battery/Up Arrow 11. Dose Button 12. Pulse Button Display Description 1. -
Page 6: Software Installation
1-877-849-2127. Operating Instructions The R8008 is intended to detect the radiation dose rate of α+β+γ and X-rays radiated from an object and not the physical quantity describing the radioactivity of an object/area. -
Page 7: Backlight
To enter the timed dose accumulation mode press the SV button a second time. Note: The default set time is 60 minutes. To modify the set time, refer to Setting Timed Dose Accumulation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Setting Dose Accumulation Time
Press and hold the SV button to re-enter the timing setup mode if required. Note: The instrument will exit the timed dose setup after approximately 15 seconds of inactivity. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Pulse Counting
Note: At any time, you can press the ESC or UNIT buttons to exit the "Dose Accumulation" mode and resume normal operation. Data Storage When taking a measurement, press the SAVE button to enter the data storage mode. The data storage icon will appear on the LCD display. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Bluetooth Recording Mode
Repeat steps 4 and 5 to set the "Month" and "Day" values. Press the ESC button to exit the Setup Menu and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Set Time
"ticking" sound will be. Follow the steps below to enable/disable the pulse sound. Press the SETUP button to enter the set up mode. Press the arrows to highlight " ". Press the button to enter the pulse sound setup screen. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Setting Average Measurement Time
"ON" or "OFF". Press the button to confirm the value. Press the ESC button to exit the setup menu and resume normal operation. icon will appear on the main screen confirming. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Battery Replacement
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 14: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 15 TesT & MeasuRe wITh ConfIDenCe CheCk ouT ouR laTesT PRoDuCTs! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
