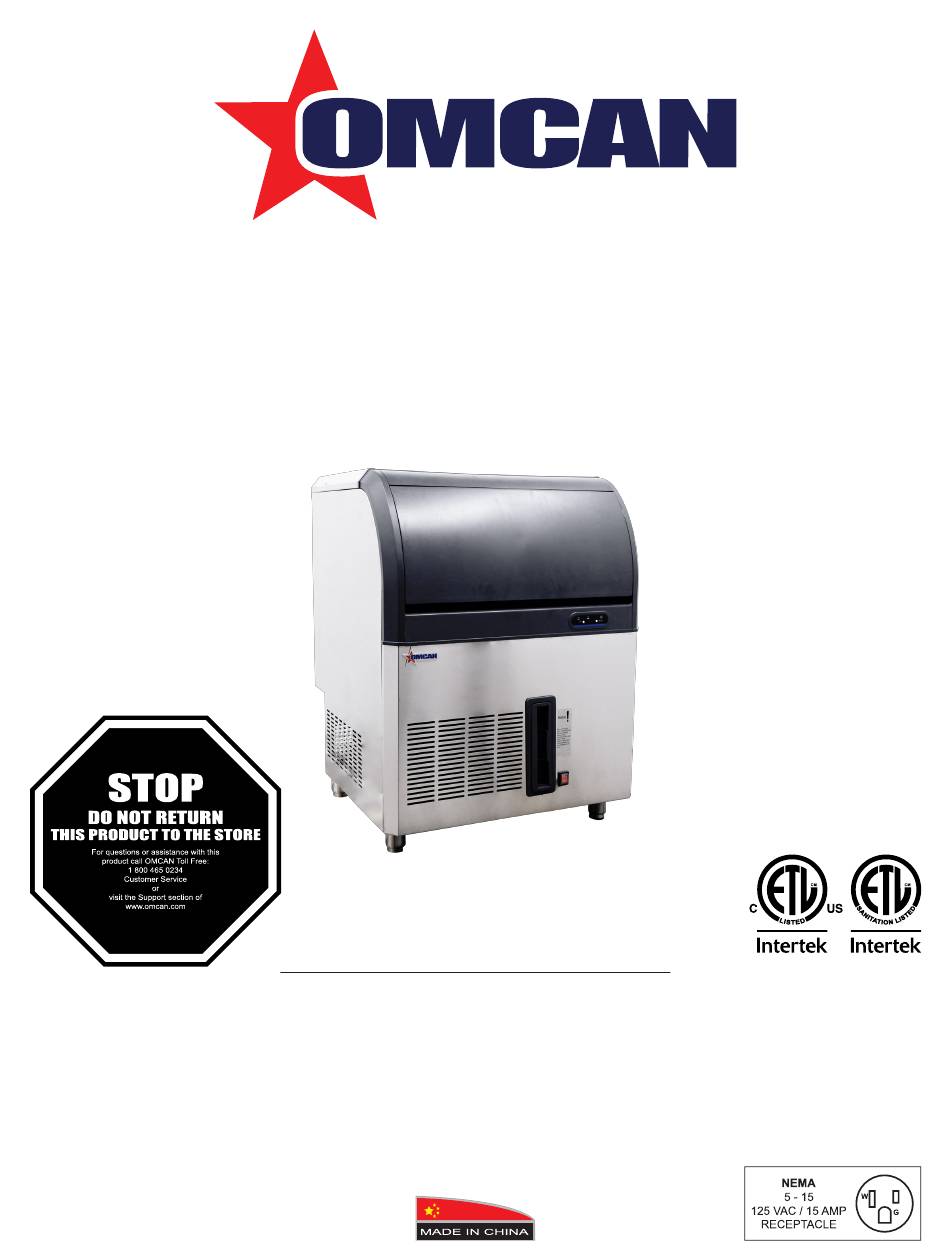

- Page 1 Ice Maker Model IC-CN-0060 Item 31780 Instruction Manual Revised - 12/07/2020 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model IC-CN-0060 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation -------------------------------------------------------------------------------------- 7 - 10 Operation ------------------------------------------------------------------------------------- 11 - 13 Maintenance --------------------------------------------------------------------------------- 13 - 15... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE WICKING PAD IS NOT REPLACED EVERY SIX MONTHS, AND IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO THE FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 To prevent accidental injuries, keep the area clean and tidy. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 7: Technical Specifications
Technical Specifications Model IC-CN-0060 Ice Production 200 lbs. / 90 kgs. per day Bin Capacity 70 lbs. / 31.8 kgs. Power 420 W Ice Shape Cube Refrigerant R290 Electrical 110V / 60Hz / 1 Max Ambient Temp Rating 32°C / 90°F Water Temperature 8°... -
Page 8: Installation
Installation ice maker but please give a call to either the seller or Omcan for advice. • Remove shipping tape which is holding the door and front panel. • Remove the protective plastic film from the exterior. If the ice maker is exposed to the sun or heat, remove the film after ice maker cools down. - Page 9 Installation ELECTRICAL CONNECTION WARNING All wiring must conform to local, state and national regulations. • This ice maker must be plugged into an independent power source, or an electrical socket of voltage at specified range. • This ice maker must be connected with an independent fuse / circuit breaker. WATER SUPPLY AND DRAIN CONNECTION •...
- Page 10 Installation • Attach the free end of inlet hose to the water supply tap. Hand tighten sufficiently to provide leak free joint. It is advisable to have the stop valve within easy reach. • Hand tighten flexible water hose onto the fitting on the rear of ice maker as indicated, confirm whether the sealing ring has been tightened in the right position to avoid leaking at joints.
-
Page 11: Operation
Operation CONTROL PANEL There are three indicator lights and two key on the front control panel. The lights is for providing status information of the machine. The left key is for manual water clean function, the other key is for timer reset of air filter routine maintenance alarms for cleaning. - Page 12 Operation Notice: The screw position of ice thickness sensor determines the distance between the sensor reeds and evaporator plate. The standard gap space should be range of 4mm-7mm, please keep gap space properly. Caution: Do not adjust the gap out of manufactory required standard. Improper adjustment are not cover by warranty.
-
Page 13: Maintenance
Operation ICE DROP PROCESSING Heated refrigerant flows into evaporator which raises the temperature of the evaporator, which causes the ice drop in storage bin. When evaporator temperature reaches 25°C, the ice drop process will finish and next ice making cycle will start. ICE FULL When Ice bin is full, ice level switch will switch off the ice maker and Ice Full indicator light will be ON. - Page 14 Maintenance 1. Fill suitable container with 3L water and 11ml sodium hypochlorite solution with concentration ratio of 5.25%, or use the special cleaning fluid. 2. Immerse ice shovel into the solution for at least 3 minutes, rinse thoroughly with water, and shake off excess water.
-
Page 15: Troubleshooting
Maintenance Please have water system cleaned by professional service staff. OUT OF SERVICE / WINTER MAINTENANCE 1. Clean and disinfect the appliance. 2. Switch off power. 3. Cut off water supply, drain off water inside. Disassemble the water inlet pipe at the back of appliance and drain off the water. - Page 16 Troubleshooting Ice is thin, or makes deformed ice Dirty water filter. Replace the filter. on the evaporation. Water spray & flow board dirty & Clean water spray & flow board. blockage. Locate out of horizontal leveled Locate ice maker in a horizontal position.
-
Page 17: Parts Breakdown
Parts Breakdown Model IC-CN-0060 31780... - Page 18 Parts Breakdown Model IC-CN-0060 31780 Item No. Description Position Item No. Description Position Item No. Description Position AC709 Air Filter for 31780 AC720 Water Pump for Ice Making for 31780 AC731 Condenser for 31780 AC710 Power Switch for 31780 AC721...
-
Page 19: Electrical Schematics
Electrical Schematics Model IC-CN-0060 31780... -
Page 20: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 21 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
