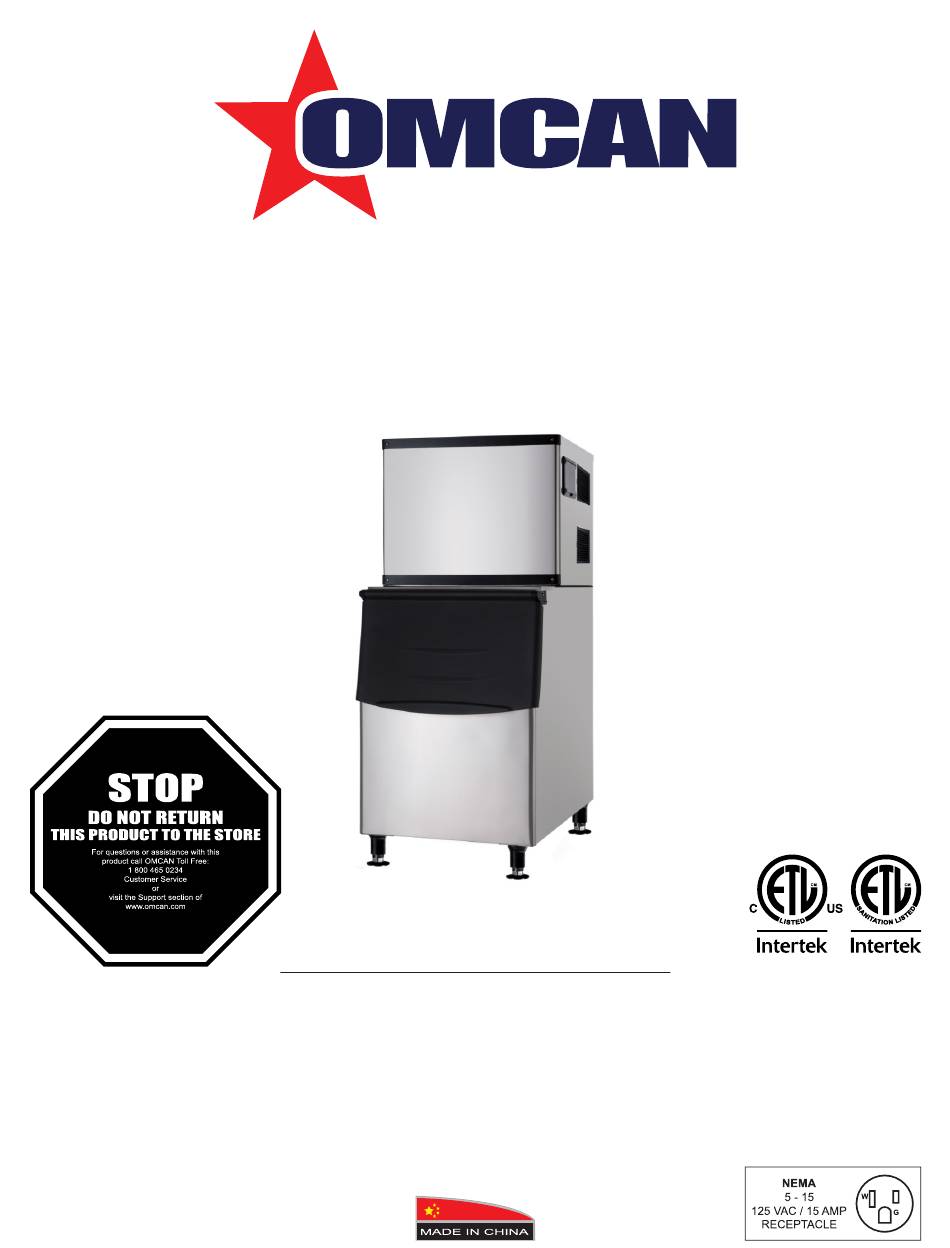

- Page 1 Ice Maker Model IC-CN-0529 Item 46452 Instruction Manual Revised - 12/17/2020 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model IC-CN-0529 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 6 - 8 Technical Specifications -------------------------------------------------------------------------- 9 Installation -------------------------------------------------------------------------------------- 9 - 10 Operation ------------------------------------------------------------------------------------- 10 - 13 Maintenance --------------------------------------------------------------------------------- 13 - 14... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE WICKING PAD IS NOT REPLACED EVERY SIX MONTHS, AND IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO THE FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. - Page 5 Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
-
Page 6: Safety And Warranty
Safety and Warranty Please pay attention to the following warning labels on the ice maker This label indicates a hazardous voltage. There is a risk of electric shock. This label indicates a hazardous voltage. There is a risk of electric shock. This label indicates rotating components inside. - Page 7 Safety and Warranty This label indicates a flammable refrigerant “R290” used. There is a risk of fire. WARNING AND SAFETY INSTRUCTION This product cannot be used in outdoor environment. This ice machine is not intended for use by children, and those with physical weakness, slow response, or mental disorders.
- Page 8 This ice machine is not intended for used at home. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 9: Technical Specifications
Technical Specifications Model IC-CN-0529 Max Ambient Temp Rating 32°C / 90°F Production 500 lbs. / 225 kgs. per day Capacity 275 lbs. / 125 kgs. Ice Shape Cube Refrigerant R290 Power 1113 W Condenser Unit Electrical 115V / 60Hz / 1 Over-All Dimensions 29.9”... -
Page 10: Installation
Installation dry it with potable water. 3. Place the ice machine in the operation area; ensure that the machine is placed on a leveled floor. So as to ensure the water flows evenly on the evaporator. 4. The compressor chamber is located at the back. The compressor and condenser are installed in it. For air cooled unit, it requires good ventilation. -
Page 11: Operation
Operation • The compressor is running normally, the temperature of the evaporator and the ice making water is gradually decreasing. • For air cooled machine, check the fan is running normally, and there is stable air flow in the inlet and outlet of the ice machine. - Page 12 Operation INSTRUCTION OF CONTROL PANEL 1. LED Display: • Self-check: Display “ini” code. • Preparing: Counting seconds positively. • Ice making: Counting seconds positively as the water temperature decreases to 0ºC. Counting seconds down to 0 s after. • Ice Harvest: Counting seconds positively. •...
-
Page 13: Maintenance
Operation • The ice machine detects that the ambient temperature is too high and will stop for safety protection. • If the water-cooled ice machine detects an abnormality in water supply, it will stop for safety protection. Maintenance Note: Maintenance must be done by a qualified professional personal. Warning: Before maintenance or manual clean, be sure to cut off the water source and power supply. - Page 14 Maintenance WINTERING • Turn off the water and power supply, drain the residual water from the water trough, inlet pipe and drain pipe. Note: The maintenance of the ice machine is not covered by the manufacturer’s warranty! CLEAN FUNCTION Note: Please empty the bin of ice in advance. Note: Please clean and sterilizing the bin and do complete rinsing.
-
Page 15: Troubleshooting
Troubleshooting COMMON FAULTS AND TROUBLESHOOTING Fault Potential cause Troubleshooting Not working / Indicator is “OFF”. Power switch not turned on. Turn on the power switch. Plug is loose. Check plug and socket. The display shows E04 high The ambient temperature is too Normal working temperature range temperature / The display shows high. - Page 16 Troubleshooting Too much noise. The ice machine is not placed in a Level the ice machine. leveled foundation or the ice maker is not leveled. ERROR CODES Code Comments Work Mode Water Curtain or Ice Full Switch Sleeping mode and recover after Fault.
-
Page 17: Parts Breakdown
Parts Breakdown Model IC-CN-0529 46452... - Page 18 Parts Breakdown Model IC-CN-0529 Ice Maker Head 46452 Item No. Description Position Item No. Description Position Item No. Description Position AC872 Microchannel Condenser for 46452 AC882 Defrost Valve Coil for 46452 AC892 Ice Full Sensor for 46452 AC873 Fan for 46452...
-
Page 19: Electrical Schematics
Electrical Schematics Model IC-CN-0529 46452... -
Page 20: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 21 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
