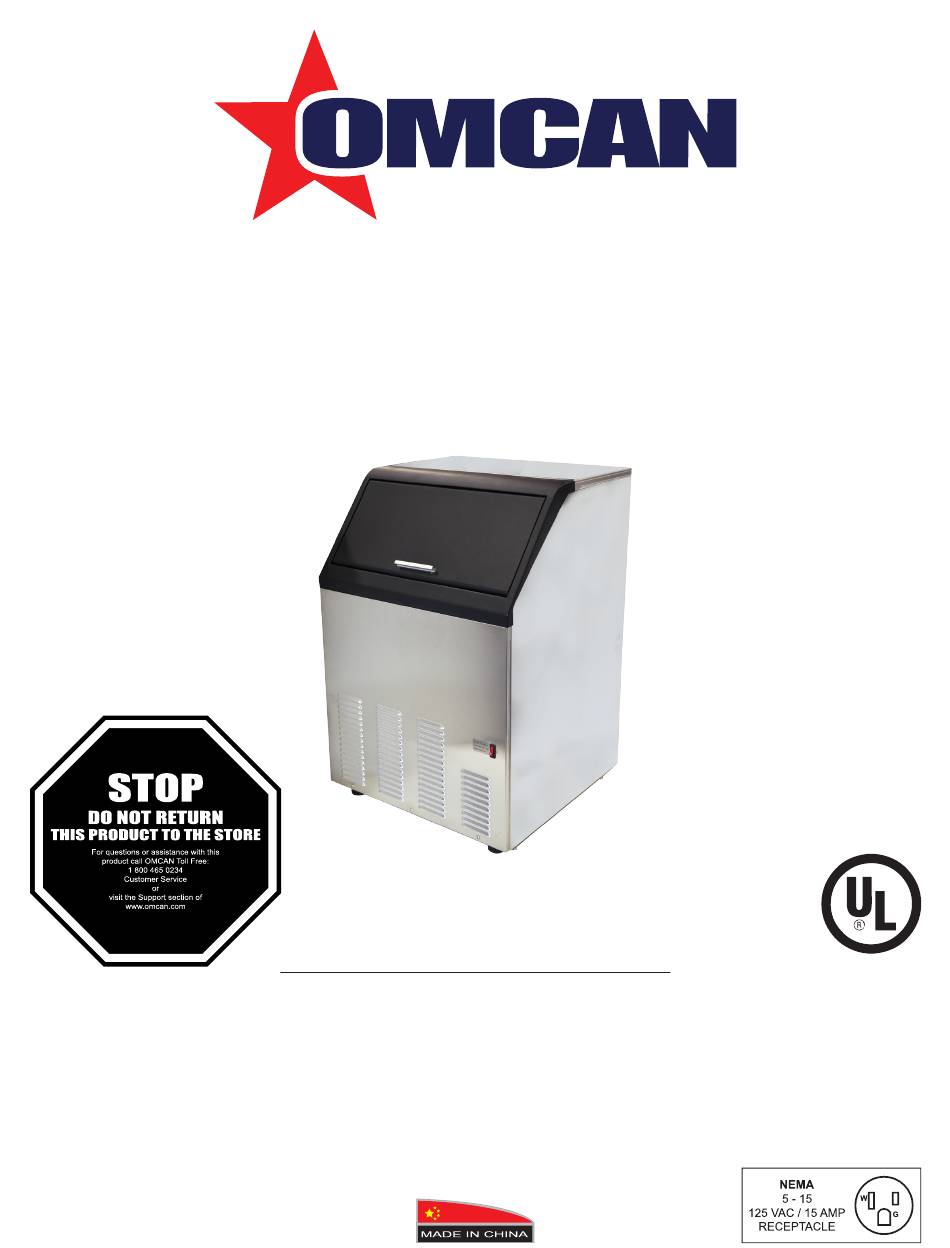

- Page 1 Ice Maker Model IC-CN-0016 Item 37865 Instruction Manual Revised - 05/05/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model IC-CN-0016 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation -------------------------------------------------------------------------------------- 9 - 13 Operation ------------------------------------------------------------------------------------- 14 - 16 Maintenance --------------------------------------------------------------------------------- 17 - 20 Troubleshooting ----------------------------------------------------------------------------- 20 - 22 Parts Breakdown... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE WICKING PAD IS NOT REPLACED EVERY SIX MONTHS, AND IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO THE FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 Safety and Warranty • Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. • Do not kink or pinch the power supply cord. • It is recommended that a separate circuit, serving only your ice maker, be provided. •...
- Page 7 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 8: Technical Specifications
Packaging Dimensions 23” x 24” x 36” / 584 x 610 x 914mm Item Number 37865 The technical data and performance index listed above should be used for reference only. They are subject to change. *The actual quantity of ice produced per day can vary with room and water conditions. -
Page 9: Installation
Installation UNPACKING Excessive Weight Hazard Use two or more people to move and install icemaker. Failure to do so can result in back or other injury. Remove Packaging Materials IMPORTANT: Do not remove any permanent instruction labels or the data label on your ice maker. Remove tape and glue from your ice maker before using. - Page 10 Installation • Choose a well ventilated area with temperatures above 50ºF and below 100ºF. This unit MUST be installed in an area protected from the elements, such as wind, rain, water spray or drips. • Ice maker should not be located next to ovens, grills or other high heat resources. •...
- Page 11 Installation IMPORTANT: Once you are ready to install it in a cabinet or directly on the floor, you must adjust the feet to level the ice maker and lock the rollers. If the floor is level, just revolve the two front feet to touch the floor (See illustration).
- Page 12 Installation WATER SUPPLY AND DRAIN CONNECTION The water supply and drain should be roughed in and ready at the point of installation. A wall outlet directly behind the ice machine will make installation easier. IMPORTANT: 1. All installations must be in accordance with local plumbing code requirements. 2.
- Page 13 Installation 3. All horizontal run of drain lines must have a fall of ¼” per foot. An air gap will likely be required between the ice maker drain tube and the drain/waste receptacle. A stand pipe with a tap below it would be acceptable for the drain/waste receptacle.
-
Page 14: Operation
Operation FINAL CHECK LIST BEFORE OPERATION 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Do you clean the ice storage bin? 3. Have the installation instructions been followed, including connecting the machine to water, drain and electricity? 4. - Page 15 Operation HOW THE MACHINE MAKES ICE There are two distinct cycles: freeze and harvest. The freeze cycle happens when water is flow to the evaporator surface. The harvest cycle is when the ice is released and water enters the machine. A complete cycle takes about 20 minutes.
- Page 16 Operation HOW THE MACHINE USES THE WATER The ice maker begins with a fixed charge of water that is contained in the water bin. As the water is flow to the freezing evaporator surface, the part of water that does not contain mineral impurities will freeze and stick to the ice cube molds.
-
Page 17: Maintenance
Maintenance If the icemaker is left unused for a long time, before the next use it must be thoroughly cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside the icemaker after cleaning. - Page 18 Maintenance CONDENSER CLEANING A dirty or clogged condenser prevents proper airflow, reduces ice making capacity, and causes higher than recommended operating temperatures that may lead to component failure. Have the condenser cleaned at least once every three mouths. 1. Unplug the ice maker or disconnect power. 2.
- Page 19 Maintenance WATER DISTRIBUTION TUBE CLEANING When you find that the ice cubes are incompletely formed or the output of ice cubes is low, the water distribution tube may be blocked. Set the power switch to OFF. Unscrew the six screws holding the top panel and remove the panel.
-
Page 20: Troubleshooting
Maintenance 2. Remove all ice cubes from the storage bin. 3. Remove the screws in the front cover, push forward to remove the front cover. Locate the control box. 4. Prepare a sanitizing solution by mixing 1 oz. household bleach with 1 gallon of warm water. 5. - Page 21 Troubleshooting TROUBLESHOOTING GUIDE Problem Possible Cause Probable Correction The machine doesn’t operate. The ice maker is unplugged. Plug in the ice maker. The fuse is blown. Replace the fuse. Call for service to check for a short circuit in the ice maker.
- Page 22 Troubleshooting Noise during operation. The feet are not leveled and Level and lock the feet. See locked. Leveling the Ice Maker. Certain sounds are normal. See Normal Sounds. The ice maker stops suddenly The electricity is off. Reconnected the power supply while making ice.
-
Page 23: Parts Breakdown
Parts Breakdown Model IC-CN-0016 37865... - Page 24 70031 Water Supply Pipe for 37865 70011 Right Foot for 37865 70020 Water Trough Outlet Hose for 37865 70032 Nut of Water Inlet Pipe for 37865 70012 Condenser for 37865 39285 Water Pump for 37865 70033 Supporting Pipe for 37865...
-
Page 25: Electrical Schematics
Electrical Schematics Model IC-CN-0016 37865... -
Page 26: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 27: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
