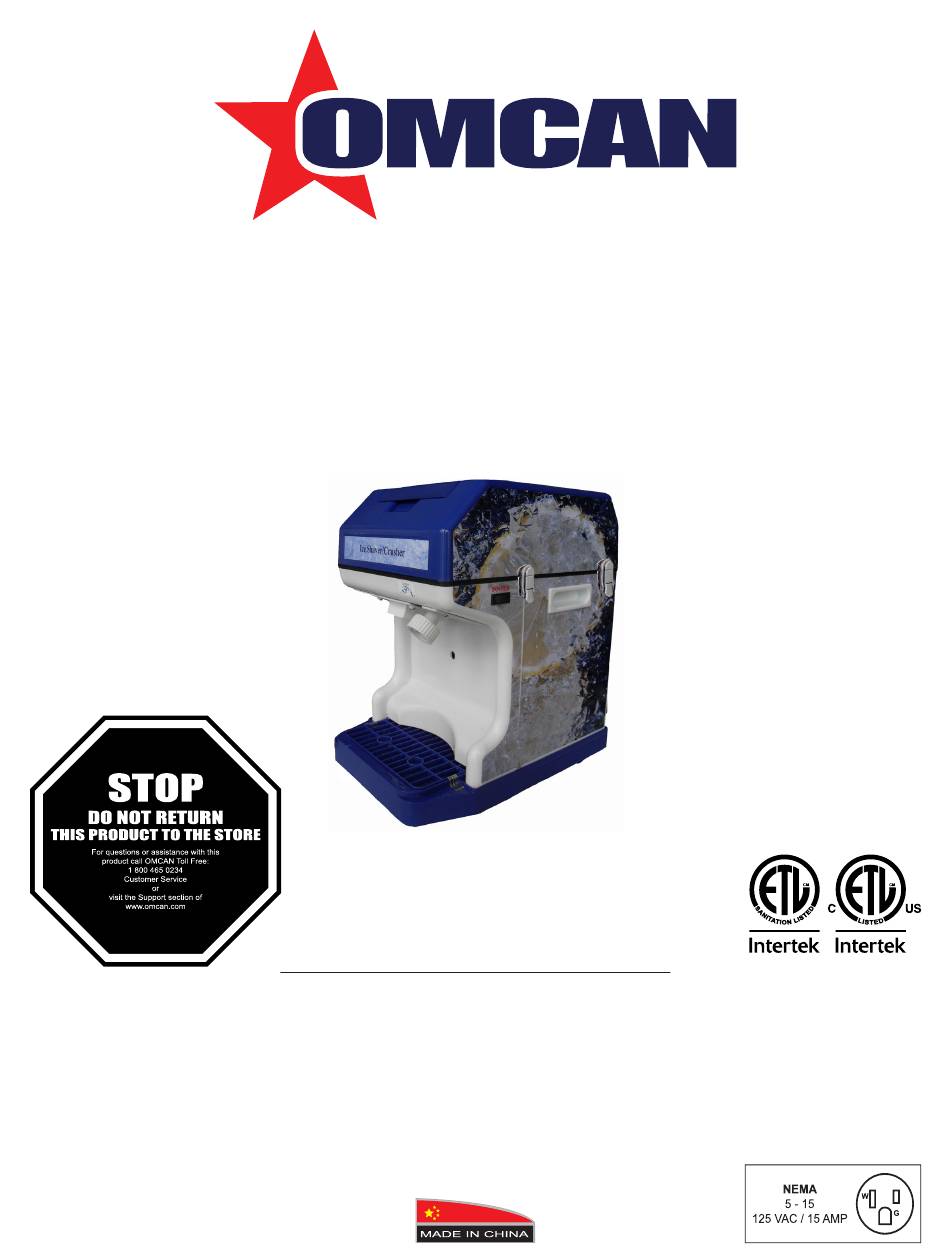

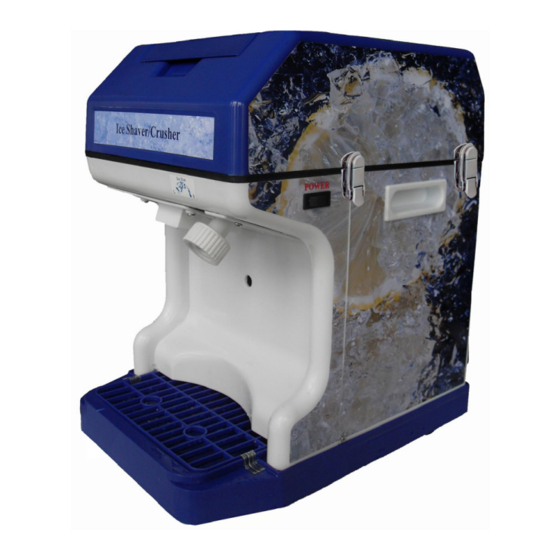

- Page 1 Ice Shaver Model IC-CN-0050 Item 43466 Instruction Manual Revised - 06/26/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model IC-CN-0050 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications ---------------------------------------------------------------------- 7 - 8 Installation -------------------------------------------------------------------------------------------- 8 Operation --------------------------------------------------------------------------------------------- 9 Maintenance ----------------------------------------------------------------------------------- 9 - 11 Troubleshooting ----------------------------------------------------------------------------------- 12... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty WARNING Means that failure to heed this safety statement may result in extensive product damage, severe personal injury or death. CAUTION Means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.
- Page 6 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 7: Technical Specifications
Safety and Warranty WARNING: The packaging components (cardboard, polyethylene, and others) are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. -
Page 8: Installation
Technical Specifications Model IC-CN-0050 Voltage 115V / 60Hz Power 200W Capacity (1 cubic inch) 70 cubes Max. Ice Shaving Capacity per 16.5 lbs. / 7.5 kgs. Minute Dimensions 12.8” x 15.75” x 17.9” / 325 x 400 x 455mm Weight 33.7 lbs. -
Page 9: Operation
Operation • Open the lid, and clean the inside hopper with dry cloth. Then carefully press on the flat surface of the blade to make sure it is well fixed. NOTE: It is extremely important that: • WHEN CHECKING THE BLADE BE SURE THE UNIT IS LOW ENOUGH SO YOU MAY SEE INSIDE THE HOPPER. -
Page 10: Maintenance
Maintenance CLEANING AND SANITIZING PROCESS • Open the locks by hand, remove the top cover (DRAWING-A). • Detach the big water-proofing ring, and then the small water- proofing ring (DRAWING-B). • Using a clean cloth, wipe the plate and rings and exert caution to avoid injuries from the blade (DRAWING-C). - Page 11 Maintenance CHANGING THE BLADES PREPARING THE APPLIANCE FOR LONG STORAGE CAUTION If your appliance is left unused for a long time, before the next use it must be thoroughly cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside your appliance after cleaning.
-
Page 12: Troubleshooting
Screw down the bolt. loose. Ice cubes frozen together. Separate them with ice-wimble. Larger ice. Hammer into small pieces to make sure the size is suitable. REFERENCE Item Number Model Number Description Manufacturer Model Number 43466 IC-CN-0050 Ice Shaver 110V/60HZ/1 cETLus/ETL IS45... -
Page 13: Parts Breakdown
Parts Breakdown Model IC-CN-0050 43466... - Page 14 Parts Breakdown Model IC-CN-0050 43466 Item No. Description Position Item No. Description Position Item No. Description Position 61503 Metal Plate for IS45 61518 Axle for IS45 61533 Motor Protected Board for IS45 61504 Lid for IS45 61519 Small Belt Pulley for IS45...
-
Page 15: Electrical Schematics
Electrical Schematics Model IC-CN-0050 43466... -
Page 16: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 17 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 18 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
