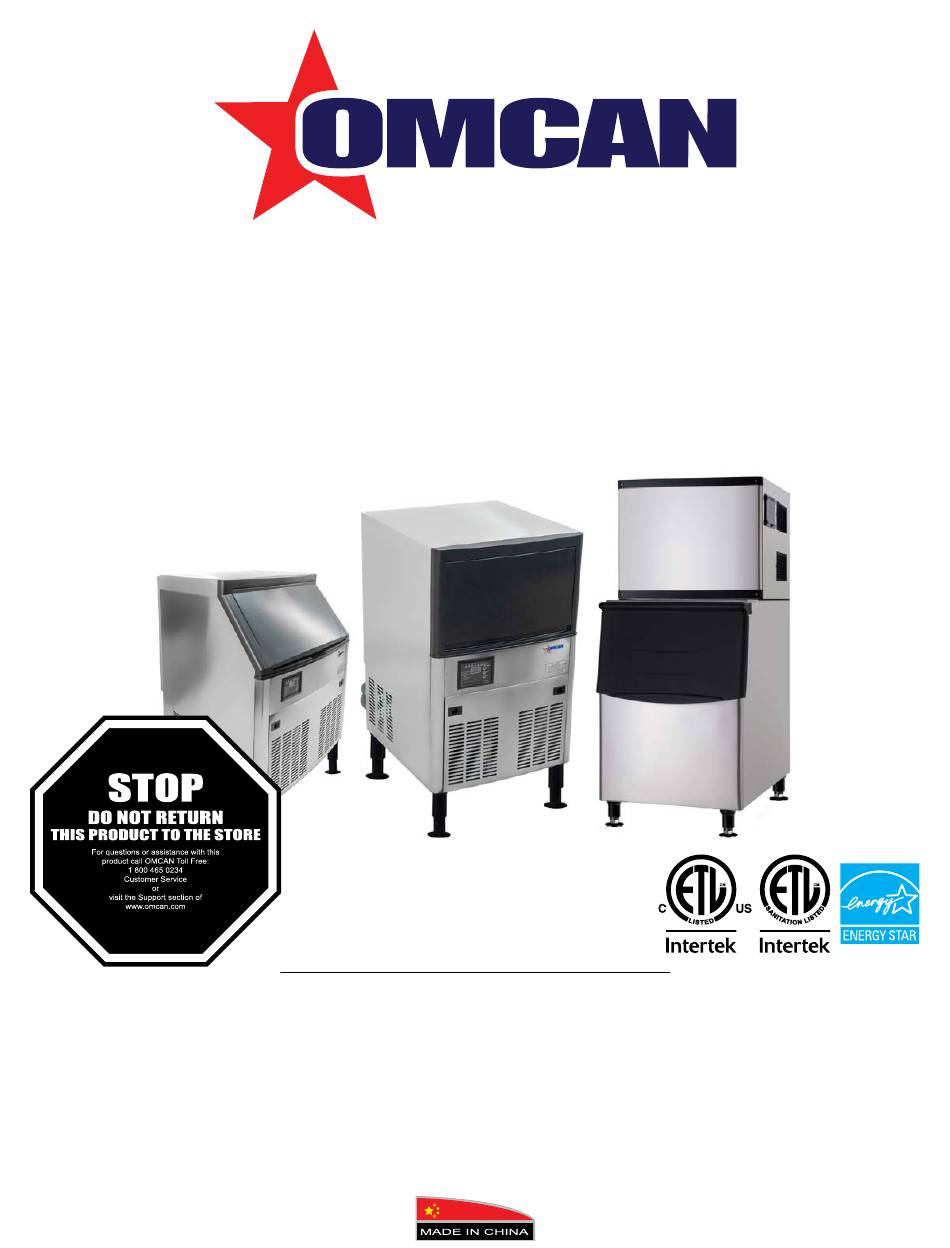

- Page 1 Ice Makers Model IC-CN-0089S, 0129S, 0219S, 0289S, 0329, 0529 Items 47773, 47483, 47484, 47774, 47485, 46452 Instruction Manual Revised - 07/06/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model IC-CN-0089S / Model IC-CN-0129S / Model IC-CN-0219S Model IC-CN-0289S / Model IC-CN-0329 / Model IC-CN-0529 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 6 - 8 Technical Specifications -------------------------------------------------------------------------- 9... -
Page 3: Disclaimer
Disclaimer OMCan Is nOT respOnsIble fOr any DaMages Due TO waTer leaks. warranTy fOr waTer leaks Is vOID If The wICkIng paD Is nOT replaCeD every sIx MOnThs, anD If The aMbIenT rOOM TeMperaTure exCeeDs 75°f anD 55% relaTIve huMIDITy, anD The applIanCe DraIn Is nOT COnneCTeD DIreCTly TO The flOOr DraIn. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. - Page 5 Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
-
Page 6: Safety And Warranty
safety and warranty Please pay attention to the following warning labels on the ice maker. This label indicates a hazardous voltage. There is a risk of electric shock. This label indicates a hazardous voltage. There is a risk of electric shock. This label indicates rotating components inside. - Page 7 safety and warranty This label indicates a flammable refrigerant “R290” used. There is a risk of fire. WARNING AND SAFETY INSTRUCTION This product cannot be used in outdoor environment. This ice machine is not intended for use by children, and those with physical weakness, slow response, or mental disorders.
- Page 8 1 YEAR PARTS AND LAbOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 9: Technical Specifications
Technical Specifications Model IC-CN-0089S IC-CN-0129S IC-CN-0219S Power 350 W 446 W 526 W Electrical 110-120V / 60Hz / 1 bin Capacity 33.1 lbs. / 15 kgs. 39.7 lbs. / 18 kgs. 79.4 lbs. / 36 kgs. Production per Day 79.4 lbs. 36 kgs. -
Page 10: Installation
Installation The ice machine should be installed in a proper location meeting the following conditions: • Indoor, not more than 2,000 meters above sea level. • Ambient temperature cannot exceed 24°C. • Power supply: the rated voltage indicated on the machine nameplate ±6%. •... -
Page 11: Operation
Operation STARTUP AND OPERATION 1. Before you start up the machine, please check and confirm: • That the packaging tape inside the ice machine has been removed. • The accessories or items in the ice bin have been taken out. •... - Page 12 Operation • Repeat ice-making: when the blocking ice cubes are taken away, the ice maker will turn back to ice making process in a few seconds. INSTRUCTION OF CONTROL PANEL 1. LED Display: • Self-check: display “ini” code. • Preparing: counting seconds positively. •...
-
Page 13: Maintenance
Operation OTHER SPECIAL PROTECTION - SHUTDOWN • If the ice machine has not detected ice cube falling off in three cycles, it will shut down for safety protection. The ice maker needs to be checked. • The ice machine detects that the ambient temperature is too high and will stop for safety protection. •... - Page 14 Maintenance WATER PIPE • In order to ensure food safety, the water pipe of the ice machine should be cleaned regularly. WINTERING • Turn off the water and power supply, drain the residual water from the water trough, inlet pipe and drain pipe.
-
Page 15: Troubleshooting
Maintenance charged. Troubleshooting COMMON FAULTS AND TROUbLESHOOTING Fault Potential cause Troubleshooting Not working / indicator is “OFF”. Power switch not turned on. Turn on the power switch. Plug is loose. Check plug and socket. The display shows E04 high The ambient temperature is too Normal working temperature range temperature / the display shows high. - Page 16 Troubleshooting Too slow in ice making. The condenser or air filter is dirty. Clean the condenser and filter screen. High ambient temperature. Normal working temperature range of 24°C. Poor ventilation. Check the environment around the ice machine. Water temperature is too high. Check the water supply temperature of 5-35°C.
-
Page 17: Parts Breakdown
Model IC-Cn-0089s 47773... - Page 18 Model IC-Cn-0089s 47773 Item No. Description Position Item No. Description Position Item No. Description Position AL111 PC Board + Control Panel for 47773 AN290 Left Column for 47773 AN301 Drying Filter for 47773 Foam Box Assembly - Blue Color (no...
- Page 19 parts breakdown Model IC-Cn-0129s 47483...
- Page 20 parts breakdown Model IC-Cn-0129s 47483 Item No. Description Position Item No. Description Position Item No. Description Position AK037 Ventilation Window Filter for 47483 AK048 Evaporator for 47483 AK056 Condenser for 47483 Display Panel Bracket for Vertical Type AK038 AK049 Sprinkler Tube Assembly for 47483 AK057 Fan Blades for 47483 for 47483...
- Page 21 parts breakdown Model IC-Cn-0219s 47484...
- Page 22 parts breakdown Model IC-Cn-0219s 47484 Item No. Description Position Item No. Description Position Item No. Description Position AC886 Display Panel for 47484 AK073 Capillary for 47484 AC885 PC Board for 47484 Display Panel Bracket for Vertical Type AK038 AF020 Ice Bin Drain Pipe for 47484 AK076 Compressor NUY80RR for 47484 for 47484...
- Page 23 parts breakdown Model IC-Cn-0289s 47774...
- Page 24 parts breakdown Model IC-Cn-0289s 47774 Item No. Description Position Item No. Description Position Item No. Description Position AL111 PC Board + Control Panel for 47774 AN292 Water Pump Assembly for 47774 AN323 Spray Pipe Assembly for 47774 AN281 Display Board for 47774 AN301 Drying Filter for 47774 AN324...
- Page 25 parts breakdown Model IC-Cn-0329 47485...
- Page 26 parts breakdown Model IC-Cn-0329 47485 Item No. Description Position Item No. Description Position Item No. Description Position AK081 Microchannel Condenser-329A for 47485 AC881 Defrost Valve Body for 47485 AK088 Skateboard for 47485 AK082 Fan-EBM for 47485 AC882 Defrost Valve Coil for 47485 AC892 Ice Full Sensor for 47485 AK083...
- Page 27 parts breakdown Model IC-Cn-0529 46452...
- Page 28 parts breakdown Model IC-Cn-0529 46452 Item No. Description Position Item No. Description Position Item No. Description Position AC872 Microchannel Condenser for 46452 AC882 Defrost Valve Coil for 46452 AC892 Ice Full Sensor for 46452 AC873 Fan for 46452 AC883 Plastic Window Filter for 46452 AC893 Upper Water Pipe for 46452 AC874...
-
Page 29: Electrical Schematics
Model IC-Cn-0089s 47773 Model IC-Cn-0289s 47774... - Page 30 electrical schematics Model IC-Cn-0129s 47483 Model IC-Cn-0219s 47484 Model IC-Cn-0329 47485 Model IC-Cn-0529 46452...
-
Page 31: Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 32 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
