Safety cut-out

The sauna heater is equipped with a safety temperature limiter (STB). If there is a malfunction, this
STB switches off all 3 phases for reasons of safety.
If the STB triggers, it needs to be reset mechanically.
How to make a rest
Determine and rectify the reason of overheating.

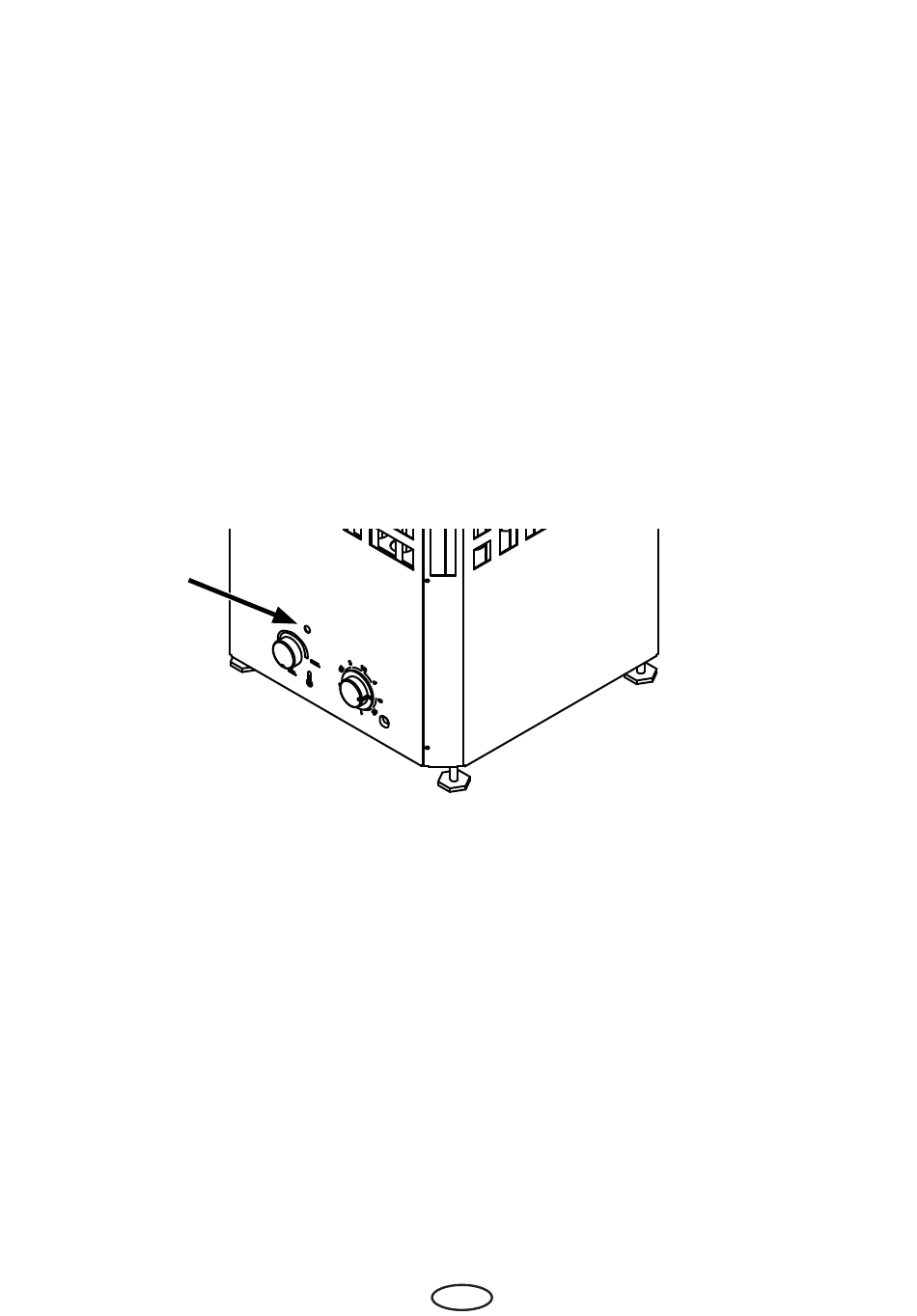

Use a pointed sharp tool and press slightly the reset button of the high limiter through the round
hole in the heater shell, so that it resets back into the original position.
If you cannot reset it with a light pressure, please allow more time for the heater to cool down.
Fig. 11
Damage to the High Limiter
The high limiter (STB) can be damaged if the reset button is pressed without rectifying the
reasons of overheating. Improper reset of the high limiter can damage it, which may cause
its malfunction and lead to overheating and resulting damages.
• Identify and rectify the reason of overheating
• Allow at least 30 minutes to cool down the heater
