- Page 1 EOS P1 W sauna heater Installation and operation manual Made in Germany IPx4 Print no. 2934 5358 en / 35.23 Technical changes reserved...
-
Page 2: Table Of Contents
Technical Data ............................13 Electrical Installation ..........................14 5.1 Heating time limitation ......................... 14 5.2 Connection for P1 W single-circuit version ................15 5.3 Connection for P1 W twin-circuit version ................16 5.4 Internal wiring ..........................17 5.5 Connecting the heater ........................18 Installation .............................. -
Page 3: General Safety Instructions
General safety instructions 1. General safety instructions Safety levels Safety instructions and important operating instructions are classified. Please familiarise yourself with the following terms and symbols: WARNING Warning Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Caution Indicates a hazardous situation which, if not avoided, could result in minor or moderate... - Page 4 General safety instructions 1.1 Mounting and electrical installation These installation instructions are intended for qualified personnel familiar with the laws and regulations applicable to electrical installations at the installation site. Ob- serve the following general safety instructions during mounting, configuration and commissioning of the product.
- Page 5 General safety instructions the cabin may reach a maximum temperature of 76°C. Appropriate protection may need to be installed if required. Risk of burns from hot unit ► During operation, the sauna heater may become hot and, if touched, could cause burns. Maintain a safe distance.
- Page 6 General safety instructions it can be used safely in a sauna cabin. Ensure that the heater is installed in compli- ance with the standards and legal norms valid in your country. The cabin door must open outward and must not have a lock that cannot be opened ƒ...
- Page 7 General safety instructions Health risks ► Spending time in a sauna cabin can lead to serious health risks or even death for persons with health impairments. Persons with health impairments who spend time in a sauna must consult a doctor ƒ...
- Page 8 Children must be supervised to ensure they do not play with the unit. ƒ 1.3 Standards and regulations For an overview of the standards that were observed during design and construction of the sauna heaters, please refer to the individual product’s technical data sheet that can be downloaded from www.eos-sauna.com.
-
Page 9: Identification

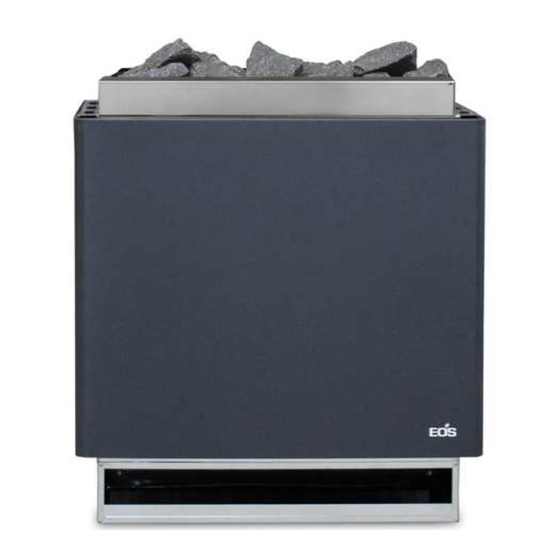

All rights reserved with regard to patent claims or submission of design or utility patent. 2.3 Identifikation des Gerätes P1 W is an electrically heated Finnish sauna heater available as a single-circuit or a twin-circuit version. Both versions are available in a variety of output capacities. 2.4 Nameplate The nameplate is attached on the rear side of the heater. -
Page 10: Intended Use
2.5 Intended use This heater is intended solely for the purpose of heating sauna cabins, together with a suitable control unit and two relay boxes. EOS P1 W is a wall-mounting heater that is suitable for commer- cially used cabins. -
Page 11: General Instructions
Identification 2.7 General instructions Please note that an optimal sauna climate can be achieved only if the cabin with its air ƒ inlets and outlets, the sauna heater, and the control unit suit each other. Observe the specifications and information provided by your sauna retailer. ƒ... -
Page 12: Scope Of Delivery
Scope of delivery 3. Scope of delivery Check the delivery to ensure that all components were delivered and that the unit is in proper working order. Contact your distributor if components are missing or damaged. The unit must not be operated if components are missing or damaged. The following parts are included in the scope of delivery: A. -
Page 13: Technical Data
Connection LSG unit – heater 5 x 1,5 mm² Connection control unit – LSG unit 4 x 1,5 mm² All line cross-section specifications are the minimum cross-sections for the copper line. * Not required by EOS Compact D18 sauna control unit. -
Page 14: Electrical Installation
Electrical Installation 5. Electrical Installation This chapter describes how to connect the EOS P1 W to a sauna control unit and to a power exten- sion unit if required. 5.2 General instructions for electrical installation Ensure that electrical installation is performed in compliance with the standards and legal norms valid in your country.. -
Page 15: Connection For P1 W Single-Circuit Version
Sauna control unit Compact D18 Temperature sensor with overheating limiter Sauna heater (single-circuit type) Notice: By other EOS control unit models an additional contactor box LSG 18 will be required for the connection of a P1 W with single-circuit wiring. -
Page 16: Connection For P1 W Twin-Circuit Version
Electrical Installation 5.4 Connection for P1 W with twin-circuit wiring Connection overview ► Saunasteuergerät Saunaofen Leistungsschaltgerät Control unit Sauna heater Power extension unit Boîtier de commande Poêle de sauna Extension de puissance Netz / Mains / Réseau / Connection diagram ►... -
Page 17: Internal Wiring
12 kW, 15 kW single-circuit ► 12,0 kW = 6x 2000 W 15,0 kW = 6x 2500 W U V W EOS Compact D18 min. 5 x 2,5 mm² min. 5 x 4 mm² (15 kW) 12-15 kW twin-circuit ►... -
Page 18: Connecting The Heater
Electrical Installation 5.6 Establishing an electrical connection The connection effects through the terminals in the terminal box at the rear side of the heater. Opening the terminal box 1. Unscrew the 4 retaining screws from the terminal box cover. 2. Take off the terminal box cover panel. Connecting the lines 3. -
Page 19: Installation
Installation 6. Installation This chapter describes how to install the P1 W sauna heater. Prior to installing the unit, air inlets and outlets must be installed in the cabin. It may be necessary to mount additional fans in the inlets/outlets. All protective films must be removed. - Page 20 Installation Dimensions and safety gaps ► 8 cm 8 cm 63 cm 30 cm 8 cm min. 20 cm 8 cm 30 cm 8 cm 63 cm 8 cm 8 cm A. Sauna ceiling D. Wall-mounting bracket B. Sauna wall E.
-
Page 21: Air Inlet And Air Outlet
Installation 6.2 Air inlet and outlet WARNING Fire hazard from overheating The heater can overheat if the air supply is insufficient. There is a risk of death due to fire. Ensure that the air inlets and outlets provide sufficient ventilation. Install a fan if ƒ... -
Page 22: Requirements For Control Unit
Installation 6.5 Mounting the heater The heater is supplied pre-mounted and packaged on a pallet. Once the cabin is ready, the heater shall be mounted on a pre-defined sauna wall. Fill the sauna stones only after the heater has been connected and mounted at it’s final place. Mounting the wall bracket ►... -
Page 23: Commissioning
Commissioning 7. Commissioning Before the heater can be commissioned (switched on), it must be filled with sauna stones, which are available as optional accessories. The heater is switched and controlled via the control unit. A power extension unit (LSG), if availa- ble, will be switched together with the sauna control unit. -
Page 24: Starting The Heater
Commissioning Filling the rock store ► 1. Wash the stones under running water. 2. WARNING! Sauna stones that are stacked too tightly obstruct the flow of air. The heater could overheat. Place the stones loosely. 3. Fill the stones into the rock store up to the top edge. Leave sufficient space between stones. Notice: In sauna heaters having contact between stones and heating elements fill the stones so that they do no exercise excessive pressure on the heating elements. -
Page 25: Water Splash
Commissioning Water splash ► Before the first water splash can begin, the cabin must be sufficiently heated. The temperature in the cabin is controlled from the control unit via the temperature sensor. The control panel indi- cates when the desired temperature has been reached. WARNING Fire hazard from overheating Incorrectly diluted sauna essences, essential oils or herbs can catch fire. -
Page 26: Maintenance And Servicing
Maintenance Maintenance 8. Maintenance 8.2 Sauna stones This sauna heater is made of low-corrosion ma- terial. To ensure a long service life, take care of Sauna stones are a product of nature. Sauna and perform regular maintenance on your sau- stones must be replenished or reshuffled de- na heater. -
Page 27: Recycling
Electronic waste Electronic waste must be disposed of at the designated local collection point for electronic waste. Additional disposal note for commercial users: Further disposal instructions can be found under the link www.eos.sauna. de/recycling Service Address EOS Saunatechnik GmbH Schneiderstriesch 1... -
Page 28: General Terms Of Service (Gts)
The manufacturers General Terms and Conditions of Business, The manufacturer shall assume liability in accordance with the which can be found at www.eos-sauna.com/agb, shall apply in currently applicable statutory regulations. The packaging for all addition to the foregoing terms and conditions of service.
