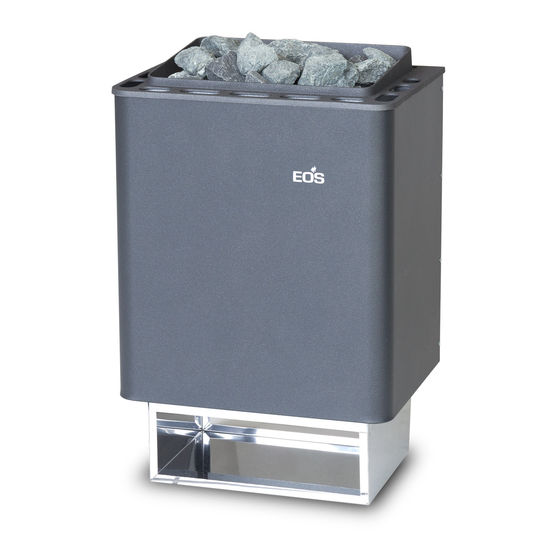

- Page 1 I N N O V A T I V E S A U N A T E C H N O L O G Y THERMAT Sauna Heater Installation and operation instruction MADE IN GERMANY IP x4 print no. 2934.4632 / 34.18...
-
Page 2: Table Of Contents
English Table of Contents General notes ............................... 3 Important notes ..............................4 Scope of delivery ............................... 7 Technical specifications ............................ 7 Installation ................................8 Minimum clearances ..........................8 Mechanical installation and connections ..................8-9 Inner wiring ................................10 Connection example 400V 3N ........................10 Connection example 230V 1N 4,5-6 kW ....................11 Connection example 230V 1N 7,5-9 kW ....................12 Special advice for 230V connection ......................13... -
Page 3: General Notes
General information Dear customer, You have purchased a high-quality technical Please check whether the unit has arrived in per- device with which you will have years of sauna fect condition. Any transport damages should be fun. This sauna heater was designed and inspect- immediately reported to the freight forwarder ed according to the current European safety delivering the goods or you should contact the... -
Page 4: Important Notes
Important notes Please provide air intake and vent open- • ings in each sauna cabin. The air intakes Unprofessional installation may • must always be positioned behind the cause a fire hazard! Please read these in- sauna heater, approx. 5 to 10 cm above stallation instructions carefully. - Page 5 temperatures generated during operation the sauna ceiling is maintained. Please can cause burns. see also the dimensions diagram for the clearance between the lower edge of the The sauna heater is not intended for in- • sauna heater and the floor. On heaters stallation or set-up in a niche, under a with bases, this clearance is maintained bench or under a sloping roof.
- Page 6 *Remote control – means settings, switching, control and adjustment of the sauna control unit by means of Never add more essences or vol- • commands transmitted from a remote location beyond atile oils than advised on the packaging. sight distance using telecommunication, wire- or wire- less signal transmission systems, network and similar Never use alcohol or undiluted concen- systems.
-
Page 7: Scope Of Delivery
Scope of delivery Please verify upon delivery that all components included in the standard scope of delivery are available. Missing parts shall be reported to your local dealer (supplier). Standard delivery includes: • 1 sauna heater • 1 wall-mounting bracket • 1 accessory pack with 1 cable gland PG16 3 self-tapping screws B 4.2 X 9.5... -
Page 8: Installation
1. Center the wall-mounting bracket over the Installation air intake vent as shown in the Illust. 2 + 3 and screw it onto cabin wall with the spax heating elements screws from the delivery scope. and rock store top cover panel Wall mounting bracket mounting brackets terminal box... - Page 9 2. Open the terminal box at the rear side 3. Close the terminal box with cover using 2 fixation screws. Observe that the integrated of the heater and connect the power supply cable in accordance with the spacer faces outwards. See Illust. 4 for details. connection diagram (see chaper Electrical 4.
-
Page 10: Inner Wiring
Inner wiring and heating elements 4,5 kW 9,0 kW 6,0 kW 7,5 kW 3x G-Ltg 3x G-Ltg 3x G-Ltg 3x Q-Ltg U V W U V W U V W U V W Connection example for 400V 3N AC Default connection Sensor Saunasteuergerät control unit... -
Page 11: Connection Example 230V 1N 4,5-6 Kw
Connection example for 230V 1N AC For 7.5 - 9.0 kW sauna heaters Saunaheizgerät / sauna heater poêle de sauna / max. 9.0 kW Saunasteuergerät / Control unit / Boîtier de commande / X Y Z U V W N N L1 L2 L3 N W V U N (Gr) -
Page 12: Connection Example 230V 1N 7,5-9 Kw
Connection example for 230V 1N AC for 4.5 - 6 kW heaters For 7.5 - 9.0 kW sauna heaters Saunaheizgerät / sauna heater poêle de sauna / max. 6.0 kW Saunasteuergerät / Control unit / Boîtier de commande / X Y Z U V W N N L1 L2 L3 N W V U N... -
Page 13: Special Advice For 230V Connection
Special advice for 230V 1N connection m a i n s h e a t e r L1 L2 L3 ! Caution! Do not relay the returning neutral N line from the sauna heater through the N output in the sauna control unit! Risk of fire and damages to control unit and heater. Do not just bridge the power input terminals L1, L2, L3. -
Page 14: Sauna Stones
Sauna rocks Maintenance and care Sauna stones are a natural product. Check the The sauna heating unit is made of low-corro- sauna stones at regular intervals. Aggressive sion material. To enjoy your sauna heating unit sauna essences can weaken the sauna stones for a long time you should ensure maintenance and cause them to break apart over time. - Page 15 For the installation of sauna heaters, please checked. pay attention to the DIN VDE 0100 part 703 or Installation of the sauna heater and control unit the corresponding national norms and legal must be undertaken only by an authorized and requirements, e.g.
-
Page 16: Service Address
2012/19/EU. Do not dispose it with the normal household waste. Service Address: EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf, Germany Tel: +49 (0)2775 82-514 Fax: +49 (0)2775 82-431 servicecenter@eos-sauna.de... -
Page 17: General Terms And Conditions, Manufacturer's Guarantee
The manufacturers General Terms and Conditions of Business, which can be found at www.eos-sauna.com/ V. Liability agb, shall apply in addition to the foregoing terms and conditions of service.
