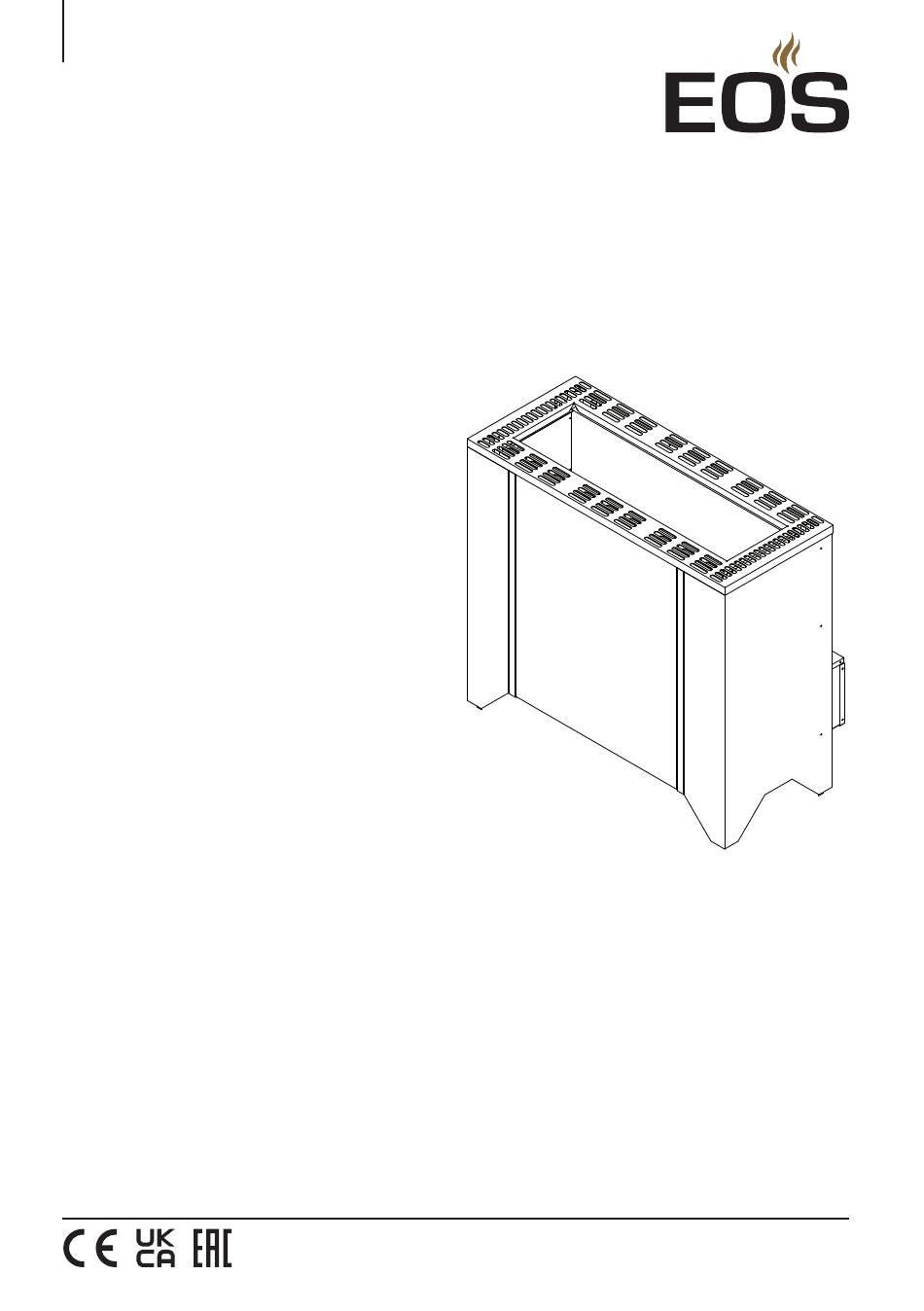

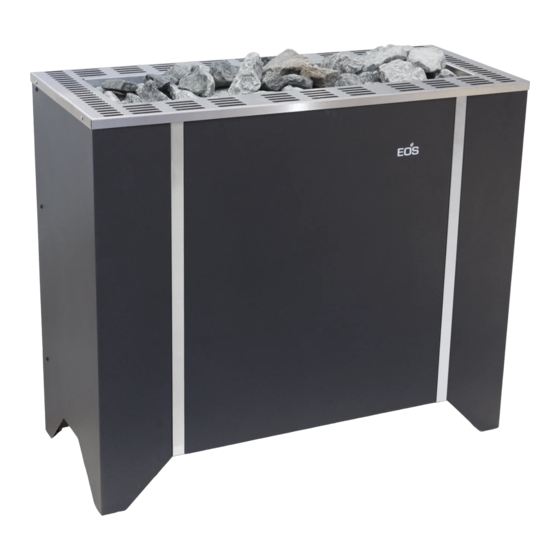

- Page 1 EOS Goliath HD Sauna heater Installation and operation manual Made in Germany IPx4 print no. 2934 5282 en / 33.23 Technical changes reserved...
-
Page 3: Table Of Contents
Content General safety instructions........................4-9 Identification .............................. 10 ƒ Manufacturer, Copyright, Identification and Product Information ........10 ƒ Intended use ............................11 ƒ Foreseeable misuse ........................... 11 ƒ General information about sauna use ..................12 Scope of delivery ............................13 Technical Data ............................ -
Page 4: General Safety Instructions
General safety instructions 1. General safety instructions Safety levels Safety instructions and important operating instructions are classified. Please familiarise yourself with the following terms and symbols: WARNING Warning Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Caution Indicates a hazardous situation which, if not avoided, could result in minor or moderate... - Page 5 General safety instructions 1.1 Mounting and electrical installation These installation instructions are intended for qualified personnel familiar with the laws and regulations applicable to electrical installations at the installation site. Ob- serve the following general safety instructions during mounting, configuration and commissioning of the product.
- Page 6 General safety instructions the cabin may reach a maximum temperature of 76°C. Appropriate protection may need to be installed if required. Risk of burns from hot unit ► During operation, the sauna heater may become hot and, if touched, could cause burns. Maintain a safe distance.
- Page 7 General safety instructions it can be used safely in a sauna cabin. Ensure that the heater is installed in compli- ance with the standards and legal norms valid in your country. The cabin door must open outward and must not have a lock that cannot be opened ƒ...
- Page 8 General safety instructions with health impairments. Persons with health impairments who spend time in a sauna must consult a doctor ƒ before entering a sauna cabin. Equipment damage due to overuse ► If the cabin is used commercially, the heating time must be set so that the heater switches off automatically after a specific period of time.
- Page 9 General safety instructions 1.3 Standards and regulations For an overview of the standards that were observed during design and construction of the sauna heaters, please refer to the individual product’s technical data sheet that can be downloaded from www.eos-sauna.com.
-
Page 10: Identification
Tel.: +49 2775 82-0 Fax: +49 2775 82-431 2.2 Copyright Copyright for these installation instructions remains with EOS Saunatechnik GmbH. Copyright as per DIN ISO 16016: The copying and distribution of this document, as well as the use and communication of its con- tents without express authorisation, are not permitted. -
Page 11: X83; Intended Use
2.5 Intended use This heater is intended solely for the purpose of heating sauna cabins, together with a suitable control unit and two relay boxes. EOS Goliath HD is a free-standing heater that is suitable for com- mercially used cabins. -
Page 12: X83; General Information About Sauna Use
Identification 2.7 General instructions Please note that an optimal sauna climate can be achieved only if the cabin with its air ƒ inlets and outlets, the sauna heater, and the control unit are synchronized. Observe the specifications and information provided by your sauna retailer. ƒ... -
Page 13: Scope Of Delivery
Delivery scope 3. Delivery scope Check the unit upon delivery to ensure that all components were delivered and that it is in proper working order. Contact your distributor if components are missing or damaged. The unit must not be operated if components are missing or damaged. The following parts are included in the scope of delivery: 1 Sauna heater ƒ... -
Page 14: Technical Data
Power extension (LSG unit) LSG 10 LSG 36 For use with the sauna control units EOS Econ series, Compact series, EmoTec series, EmoStyle series, EmoTouch series Leakage current Max. 0.75 mA per kW heater output Intended use / area of application... -
Page 15: Electrical Installation
Electrical installation 5. Electrical installation This chapter describes how to connect the EOS Goliath HD to a sauna control unit and to a power extension unit. 5.1 General instructions for electrical installation Ensure that electrical installation is performed in compliance with the standards and legal norms valid in your country.. -
Page 16: X83; Connection Diagram 18 Kw
W V U N max. 10 kW N U V W Netz / Mains / Réseau / Netz / Mains / Réseau / 400 V 3N ~ 400 V 3N ~ ENTWURF ) for all EOS control units except Compact D18/H18... -
Page 17: X83; Connection Diagram 24 - 36 Kw
Electrical installation 5.4 Connection for Goliath HD 24 - 36 kW Connection overview Leistungsschaltgerät Saunasteuergerät Saunaofen Power extension unit Control unit Sauna heater Extension de puissance Boîtier de commande Poêle de sauna Netz / Mains / Réseau / Connection diagram... -
Page 18: X83; Inner Wiring
36 kW = 18x 2,000 kW LSG = power extension unit SCU = sauna control unit Goliath HD 18 kW single-circuit ► 5 x 6 A. Connection (EOS Compact D18 control unit / LSG 18 contactor box) B. Heating elements (RHK), 18 x 1,000 W... -
Page 19: X83; Connecting The Heater
Electrical installation 5.6 Establishing an electrical connection The connection effects through the terminals in the terminal box at the rear side of the heater. Opening the terminal box 1. Unscrew the 4 retaining screws from the terminal box cover. 2. Take off the terminal box cover panel. Connecting the lines 3. -
Page 20: Installation
Installation 6. Installation This chapter describes how to install the Goliath HD sauna heater. Prior to installing the unit, air inlets and outlets must be installed in the cabin. It may be necessary to mount additional fans in the inlets/outlets. All protective films must be removed. -
Page 21: X83; Dimensions And Safety Gaps
Installation Dimensions and safety gaps ► ~85 cm ~50 cm 49 cm 8 cm 96 cm 40 cm 8 cm 8 cm 8 cm 96 cm 8 cm A. Sauna ceiling D. Sauna heater B. Temperature sensor E. Fresh air inlet C. -
Page 22: X83; Air Inlet And Outlet
Installation 6.2 Air inlet and outlet WARNING Fire hazard from overheating The heater can overheat if the air supply is insufficient. There is a risk of death due to fire. Ensure that the air inlets and outlets provide sufficient ventilation. Install a fan if ƒ... -
Page 23: X83; Requirements For Control Unit And Temperature Sensor
Three people are required to carry the heater. 6.6 Installation of the optional cover protection rail for Goliath HD Cover protection rail is an optionally available accessories. Suitable type 5, item no. 944725. Using the optional mounting frame item no. -
Page 24: Mounting The Optional Cover Protection Rail
Installation Installing the cover protection rail directly on the heater ► Use the included tapping screws for mounting the frame (brackets) to the heater. ƒ Use the pan-head screws for attaching the rail to the mounting frame (brackets). ƒ All sizes are given in mm. ƒ... -
Page 25: Commissioning
Commissioning 7. Commissioning Before the heater can be commissioned (switched on), it must be filled with sauna stones, which are available as optional accessories. The heater is switched and controlled via the control unit. A power extension unit (LSG), if availa- ble, will be switched together with the sauna control unit. -
Page 26: X83; Switching The Sauna Heater
Commissioning Filling the rock store ► 1. Wash the stones under running water. 2. WARNING! Sauna stones that are stacked too tightly obstruct the flow of air. The heater could overheat. Place the stones loosely. 3. Fill the stones into the rock store up to the top edge. Leave sufficient space between stones. Notice: In sauna heaters having contact between stones and heating elements fill the stones so that they do no exercise excessive pressure on the heating elements. - Page 27 Commissioning Water splash ► Before the first water splash can begin, the cabin must be sufficiently heated. The temperature in the cabin is controlled from the control unit via the temperature sensor. The control panel indi- cates when the desired temperature has been reached. WARNING Fire hazard from overheating Incorrectly diluted sauna essences, essential oils or herbs can catch fire.
-
Page 28: Maintenance
Maintenance Maintenance 8. Maintenance 8.2 Sauna stones This sauna heater is made of low-corrosion ma- terial. To ensure a long service life, take care of Sauna stones are a product of nature. Sauna and perform regular maintenance on your sau- stones must be replenished or reshuffled de- na heater. -
Page 29: Recycling
Electronic waste Electronic waste must be disposed of at the designated local collection point for electronic waste. Additional disposal note for commercial users: Further disposal instructions can be found under the link www.eos.sauna. de/recycling Service Address EOS Saunatechnik GmbH Schneiderstriesch 1... -
Page 30: General Terms And Conditions Of Service
The manufacturers General Terms and Conditions of Business, The manufacturer shall assume liability in accordance with the which can be found at www.eos-sauna.com/agb, shall apply in currently applicable statutory regulations. The packaging for all addition to the foregoing terms and conditions of service.
