Installation

The floor at the installation place must be leveled, (even) and capable of bearing corresponding
weight. Minor height differences can be compensated by the adjustable feet.
ATTENTION! Do not operate the heater without feet!
ATTENTION! Install only on leveled surfaces! Risk of injuries through tilting. Ensure
vertical position of the heater.

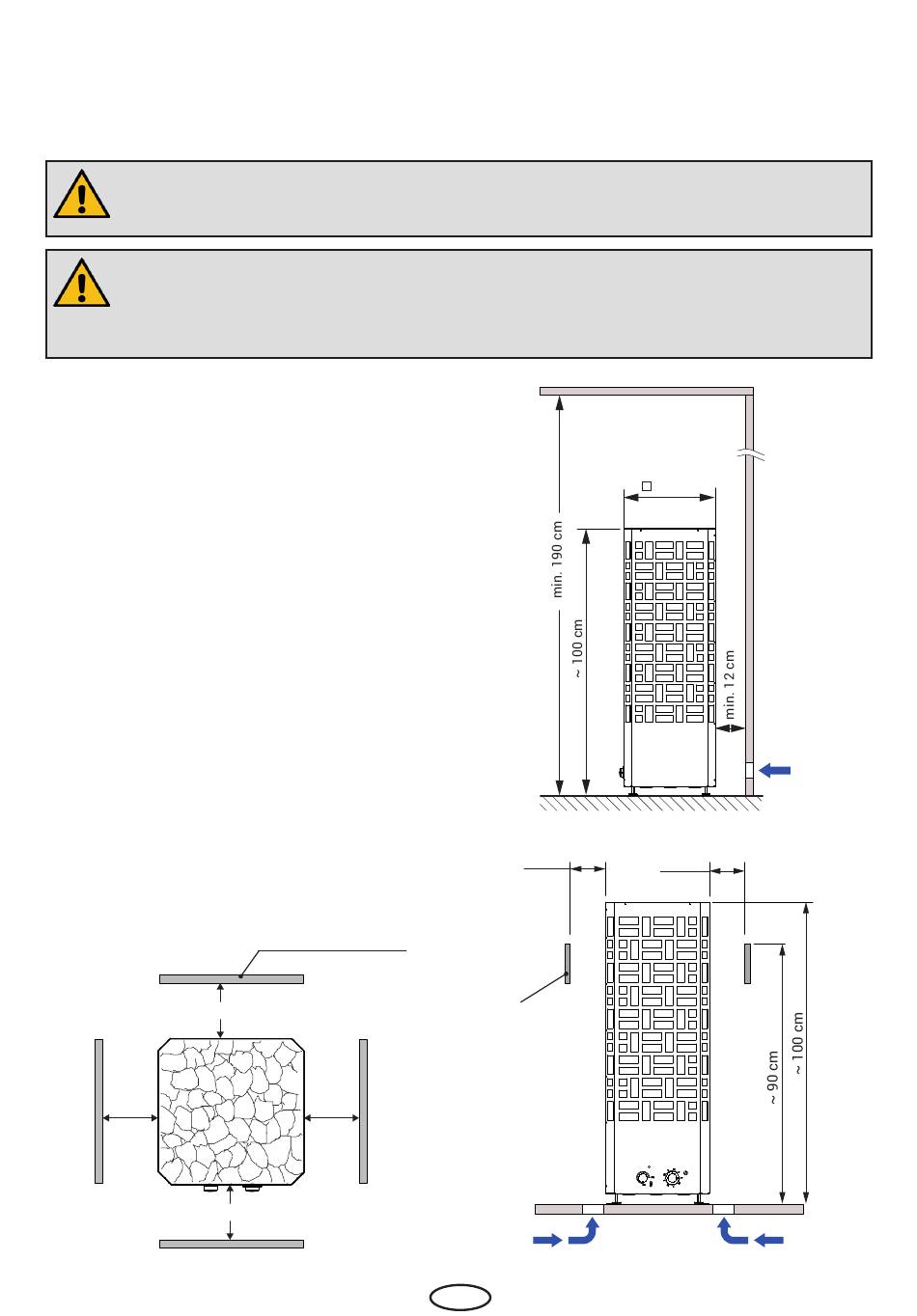

Safety gaps

• The inner sauna cabin height must be at least
190 cm.
• When installing the sauna heater, make sure
that the horizontal (side) distance between
the heater and the cabin wall is at least 12 cm
(Fig. 1).
• The distance from the heater grid and the
bench to other inflammable materials near the
heater must be at least 12 cm. (Fig. 2)
• The height of the protective heater guard
rail must approximately correspond to the
height in Fig. 3.
• The stove guard is not included in the delivery
and has to bell well installed by the cabin
fabricant.
12 cm
12 cm
12 cm
32
Guard rail
12 cm
Fig. 2
12 cm
Guard rail
Cabin floor
EN
35 cm
Air inlet
Cabin wall
12 cm
Air inlet
Fig. 1
Fig. 3
