Mocka Eclipse Four Drawer Assembly Instructions Manual page 11

Eclipse Four Drawer
Assembly Instructions
19
V
Z
W

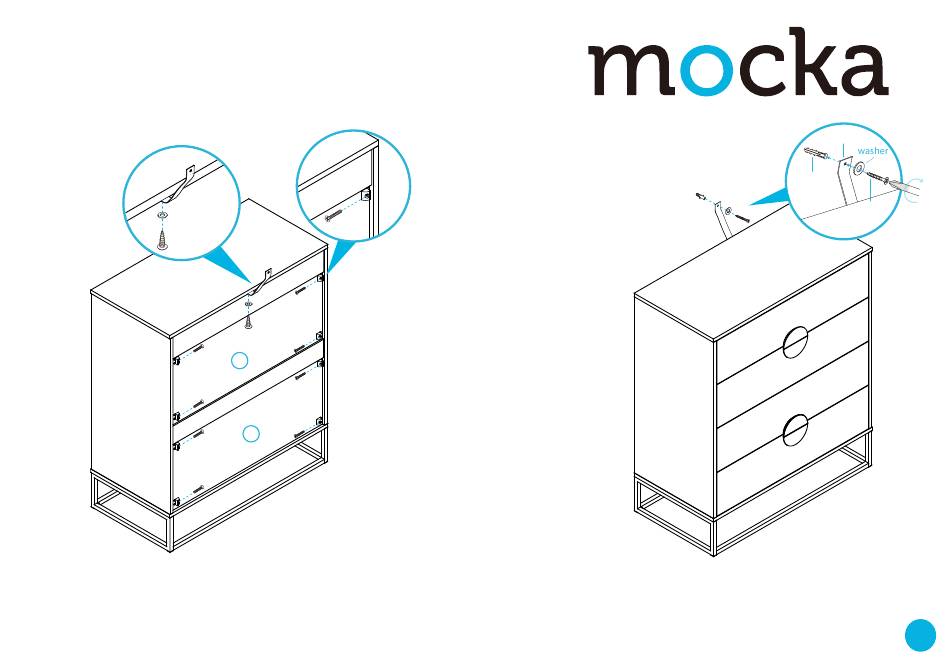

Attach 8x wedges (J) into the corners of the back of the
unit and secure with 8x screws (K). Tighten with a screwdriver.
Attach 1x safety straps (V) to the top of the back side of the unit as
shown using 1x washers (Z) and 1x screws (W). Tighten with a
screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
J
K
V
Z
W
9
9
20
X
Once assembled lift furniture into place, do not drag. Use a drill to
create a small hole lining up with the top of the safety strap (V).
Fasten to the wall using 1x washers (Z), 1x wall anchor (X) and
1x wall screw (Y). Ensure unit is balanced and steady before use.
You're done, enjoy!
strap
wall
anchor
Z
screw
Y
11
