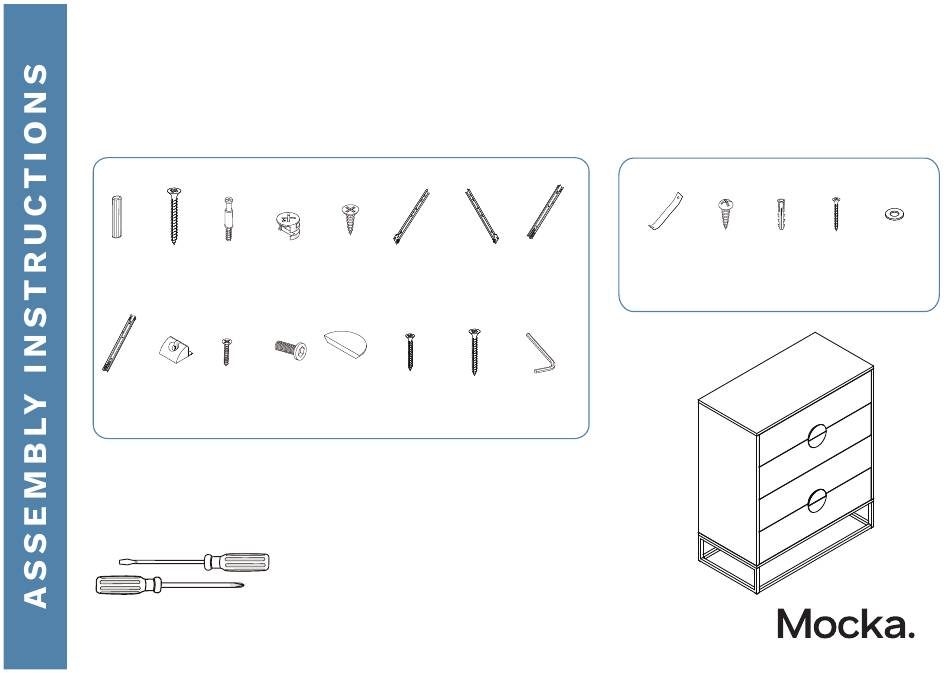

Mocka Eclipse Four Drawer Assembly Instructions Manual

Eclipse
Four Drawer
Thank you for your purchase.
Please follow the instructions below for correct assembly
A B C
bolt locking
dowel screw
x14 x7 x35 nut x35
J K
I
slide wedge screw
rail x4
x8
x8
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
D E F
screw
slide
x40 rail x4
L M N
bolt handle handle
screw
x8 x4
x8
Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G H
slide
slide
rail x4 rail x4
O P
screw Allen Key
x26 x1
V W X
safety screw wall
x1
strap x1 anchor screw
x1
Wall Strap
Y Z
wall washer
x2
x1
