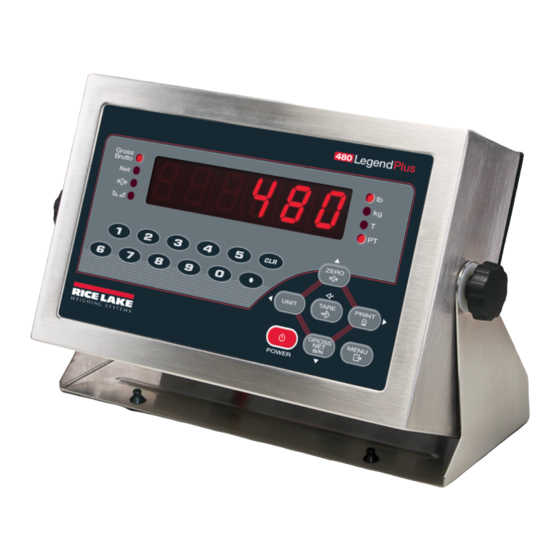

Rice Lake Legend 480 Series Operation Manual
Digital weight indicator
Hide thumbs
Also See for Legend 480 Series:
- Operation manual (28 pages) ,
- Technical manual (86 pages) ,
- Operation manual (32 pages)
Related Manuals for Rice Lake Legend 480 Series
Summary of Contents for Rice Lake Legend 480 Series
- Page 1 PRESENTED BY JPBOWLIN.COM 817.332.8116 J.P. Bowlin is a quality-driven Calibration Company that has provided calibration, repair and sales of all types of weighing and measurement products since 1931.
- Page 2 480 Legend Series Digital Weight Indicator Version 1.05 Operation Manual October 3, 2019 PN 163374 Rev D...
- Page 3 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 4: Table Of Contents
3.4 Specifications..........24 Technical training seminars are available through Rice Lake Weighing Systems. - Page 5 480 Legend Series Digital Weight Indicator Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Visit our website www.RiceLake.com...
-
Page 6: Introduction
The indicator front panel consists of a large (.8 in, 20 mm), six- digit, seven-segment LED display and seven-button keypad. Manuals can be viewed or downloaded from the Rice Lake Weighing Systems website at www.RiceLake.com. Warranty information can be found on the website at www.ricelake.com/... -
Page 7: Safety
General Safety Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Contact any Rice Lake Weighing Systems dealer for replacement manuals. WARNING Failure to heed may result in serious injury or death. -
Page 8: Operating Modes
Keys are also used to navigate through menus, select digits within numeric values, and increment/decrement values. Figure 1-1. 480 Front Panel, Showing LED Annunciators and Key Functions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 9: Key Functions
480 Legend Series Digital Weight Indicator 1.3.1 Key Functions Function Turns the unit on/off. Note: If power mode is set to manual, the POWER button must be used to turn the unit on and off. If power mode is set to auto, the unit will POWER automatically power on when it’s plugged in and the only way to turn it off is to unplug power. -
Page 10: Annunciator Functions
Indicates that a preset tare weight has been keyed in or entered and stored in memory. Table 1-2. LED Annunciators Note See the 480 Legend Series Technical manual (PN 119201) for more information. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 11: Front Panel Key Functions
480 Legend Series Digital Weight Indicator Front Panel Key Functions Move UP/Increment Value ZERO ENTER Value Move LEFT/Previous Move RIGHT/Next Move RIGHT/Next TARE PRINT UNIT Power ON/OFF Access User Setup GROSS MENU POWER Move DOWN/Decrement Value Figure 1-2. Front Panel Key Functions Four front panel keys are used as directional keys to navigate through the menus (see Figure 1-2). -
Page 12: Edit Parameter Values
When editing fractional numeric values, the decimal point must be Note positioned in accordance with the primary units formatting, otherwise the keyed number may be rejected by the software. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 13: Indicator Operations
480 Legend Series Digital Weight Indicator Indicator Operations Basic 480 operations are summarized below. See the 480 Legend Series Technical manual (PN 119201) for more Note information. 1.5.1 Status Lights While in Various Menus Sub-menu levels are indicated by the LEDs as shown below. First sub-menu level Second sub-menu level Third sub-menu level... -
Page 14: Preset Tare (Keyed Tare)
If there is no tare in the system, the value displayed will be zero and the Gross and Net LED will be turned off. Section 3.2 on page 22 for more information. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 15: Print Ticket
480 Legend Series Digital Weight Indicator 1.5.7 Print Ticket 1. Press to print either the Gross or Net format. PRINT 2. Wait for LED to light. 3. Press to send data to the serial port. PRINT LED is not lit and the key is pressed, the print action will take place only PRINT if the scale comes out of motion within 3 seconds. -
Page 16: Enter New Unit Id
6. Press repeatedly to return to weighing mode. If the accumulated value exceeds 999999, display show “EE ACC”. The value Note will still be correct and will print correctly up to 1,000,000,000. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 17: Display Or Change Time And Date
480 Legend Series Digital Weight Indicator 1.5.12 Display or Change Time and Date To set the date and time: 1. Press MENU 2. Press to AUDIT. 3. Press until display reads TIMDAT (TIME/DATE). 4. Press and select Time or Date with 5. -
Page 18: Display, Edit And Set Setpoint Value
2. Press . AUDIT is displayed. 3. Press until display reads VERS. 4. Press . FIRMW is displayed. 5. Press to view version. 6. Press repeatedly to return to weighing mode. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 19: Enter User Password
480 Legend Series Digital Weight Indicator 1.5.15 Enter User Password 1. Remove the setup switch access screw from the back of the enclosure. 2. Insert a non-conductive tool into the access hole and press the configuration switch. Indicator display changes to show CONFIG 3. -
Page 20: User Menus
USER SUPVSR AUTO KIND TRIP WAITSS PUSHPR PUSHAC VALUE ENABLE MANUAL 000000 HIGHER GROSS LOWER -GROSS -NET DELAY PUSHTR DIGOUT BATSEQ PREACT HYSTER 000000 000000 NONE Figure 2-2. Setpoint Setup Menu © Rice Lake Weighing Systems ● All Rights Reserved... - Page 21 480 Legend Series Digital Weight Indicator MENU CONFIG FORMAT CALIBR PROGRM DIG IN ALGOUT PASWRD USBMEM TEST ACCUM TIMDAT SETPNT SERIAL PFRMAT COM-1 TRIGER BAUD BITS SBITS TERMIN EOLDLY ECHO PRNMSG 9600 DEMAND 8NONE 1 STOP CR-LF 19200 7EVEN 2 STOP NONE 38400 7ODD...
- Page 22 DEMAND 0.0.0.0 COMAND 0 - 65535 STR - 2 1 - 65535 0 - 255 STRLFT STR - 3 STRIND STR - 4 STR - 5 Figure 2-4. Ethernet Menu Layout © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 23 480 Legend Series Digital Weight Indicator MENU CONFIG FORMAT CALIBR PROGRM DIG IN ALGOUT PASWRD USBMEM TEST ETHNET PFRMAT DEVICE TRIGER HOSTPC COMAND DRIVE DEMAND PRINTR Figure 2-5. USB Menu Layout MENU CONFIG FORMAT CALIBR PROGRM DIG IN ALGOUT PASWRD USBMEM TEST ACCUM...
- Page 24 FORMAT CALIBR PROGRM DIG IN ALGOUT PASWRD USBMEM TEST MISC POWER BKLGHT BAT LEVEL AUTO MANUAL AUTO 10 SEC 30 SEC 1 MIN 5 MIN 10 MIN Figure 2-8. Misc. Menu © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 25: Appendix
Parameter checksum error EACKSM A/D calibration checksum A/D converter requires recalibration. error Call Rice Lake Weighing Systems Service. EFCKSM Printer format checksum error Call Rice Lake Weighing Systems Service at 800-472-6703. ELCKSM Load cell calibration Recalibrate load cells. checksum error EIDATA Internal RAM checksum error Call Rice Lake Weighing Systems Service at 800-472-6703. - Page 26 Table 3-1. 480 Error Messages Shorting the excitation voltage shuts the excitation voltage off. The only way Note to restore excitation voltage is to cycle power. © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 27: Regulatory Mode Functions
480 Legend Series Digital Weight Indicator Regulatory Mode Functions Regulatory Weight On Tare In Front Panel Key Front Panel Key Parameter Scale System Tare Zero NTEP Zero “000000” Zero Clear tare Zero Negative No action Zero Clear tare Zero Positive Tare Zero Tare... -
Page 28: Compliance
CONFORMITY 480 and 482 indicator 2014/30/EU EMC EN 55022:2010, EN 61000-3-2:2006+A1(09)+A2(09), EN 61000-3-3:2008, EN 55024:2010 2014/35/EU LVD EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 2011/65/EU RoHS EN 50581:2012 __________________________ __________________________ May 3, 2019 __________________________ __________________________ __________________________ © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 29: Specifications
480 Legend Series Digital Weight Indicator Specifications Model Numbers United States 480-2A/480Plus-2A (NEMA Type 5-15) International 480-2A/480Plus-2A (CEE 7/7) Power – AC Line Voltages 115 to 230 VAC Frequency 50 or 60 Hz Power Consumption 70 mA @ 115 VAC (8W) 35 mA @ 230 VAC (8W) Fusing 2.5 A 5 x 20 mm fuse... - Page 30 Storage Temperature –25 to +70°C Humidity 0–95% relative humidity Enclosure Enclosure Dimensions 9.5 in x 6 in x 2.75 in 24 cm x 15 cm x 7 cm Weight 6 lb Rating/Material © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 31 480 Legend Series Digital Weight Indicator Certifications and Approvals NTEP CoC Number 12-123 Accuracy Class III/IIIL n : 10 000 OIML R76/2006-NL1-15.24 European Test Certificate TC8322 Accuracy Class III n : 10 000 Measurement Canada Approval AM-5892 Accuracy Class III/IIIHD n : 10 000 File Nubmer: 151461 The 480 complies with Part 15 of the FCC Rules.
- Page 33 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com...
