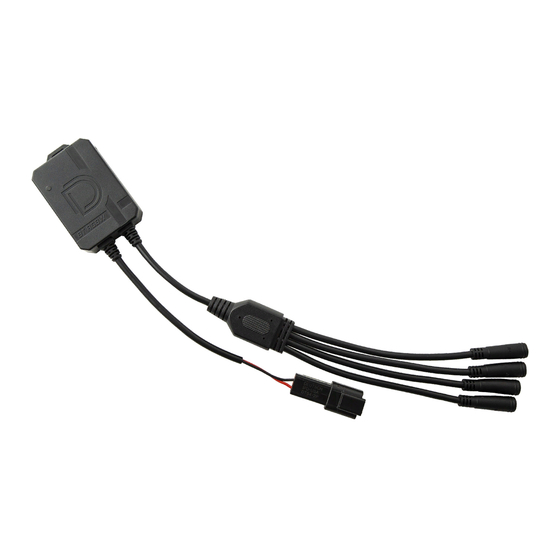

Diode Dynamics RGBW LED Board Installation Manual

Thank you for your purchase of this unique product for your Ford
Mustang! With these modules, you will be able to convert your
factory LEDs inside the headlight into full multicolor functionality.
They are a direct replacement for the factory LED panels inside
the headlight.
Please note: Headlights must be opened before proceeding with installation. This process
can be completed by heating and prying the lens from the housing. We recommend viewing
example videos online to understand the process however, professional installation is strongly
recommended. Please contact Diode Dynamics if you need assistance locating an installer.
Tools Needed: Screwdriver
PAGE 1
2013-2014 Ford Mustang
RGBW LED Board Installation Guide
TM

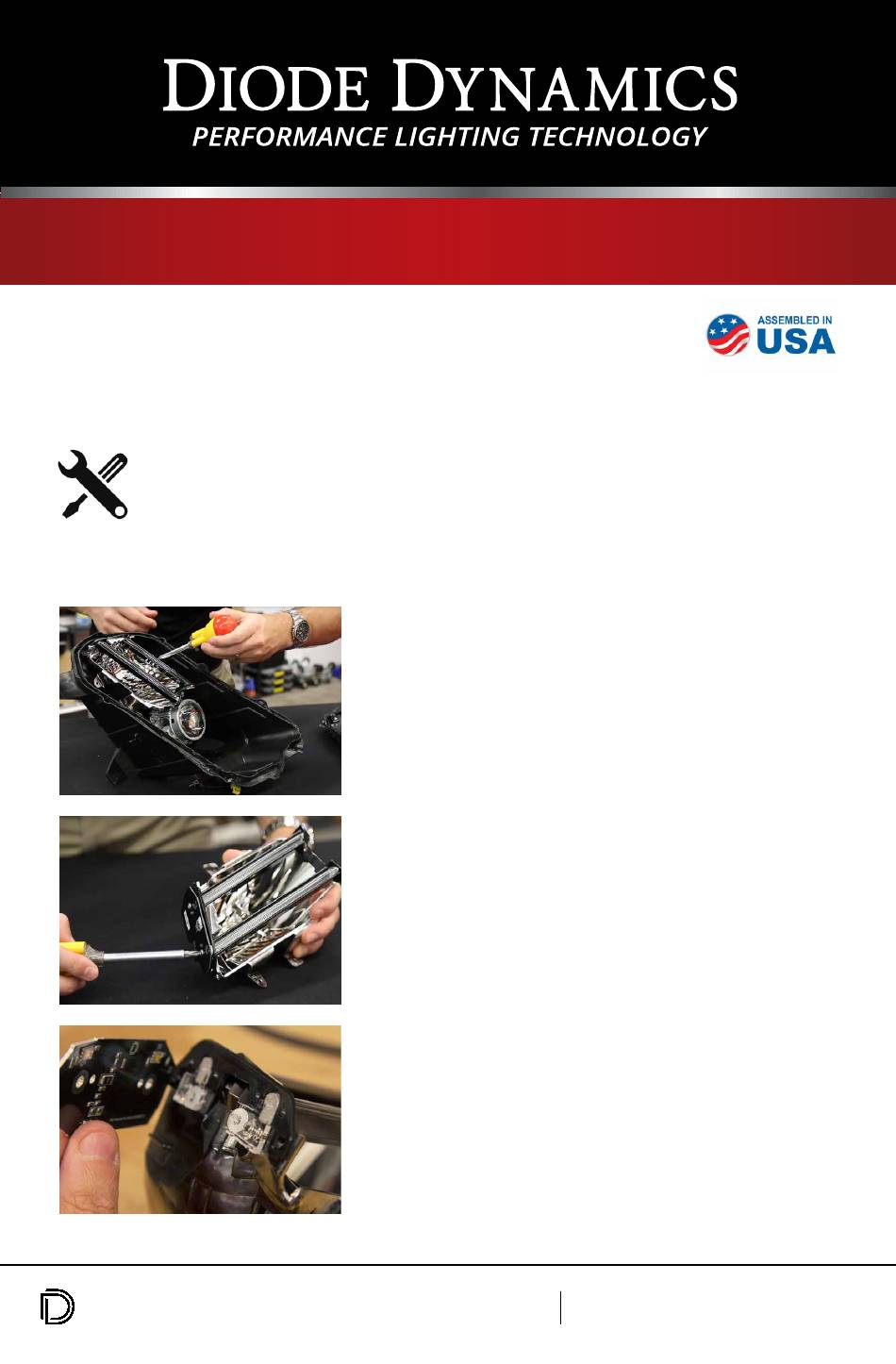

1. To begin, remove the screws holding the reflector
housing in place and then unclip the wire connector.
2. Next, remove the two screws holding the LED
board to the reflector housing and remove the
factory LED board. The factory board and driver
board will no longer be used.
3. Install your new Diode Dynamics LED board. To do
so, install the supplied spacers between the board
and the reflector housing as shown in the picture to
the left. The spacers must be used in order to allow
enough clearance for the LED chips.
Secure the boards in place using the original screws.
(314) 205-3033
3 YEAR
WARRANTY
See back for further instructions.
