Diode Dynamics DD0438 Installation Manual

Thank you for purchasing the Diode Dynamics LED Footwell Kit!
Please watch our installation video on YouTube prior to installation.
Tools Needed: Drill with 3/4" bit, Needle Nose Pliers, Phillips Screwdriver, Flathead
Screwdriver, Socket Wrench Set
1. Locate a 12 volt power source and ground. Often times, this can be found on your
12V outlet/cigarette lighter, or your vehicle's ignition.
2. Using the provided red quick-splice connectors, splice the red power wire
the black ground wire

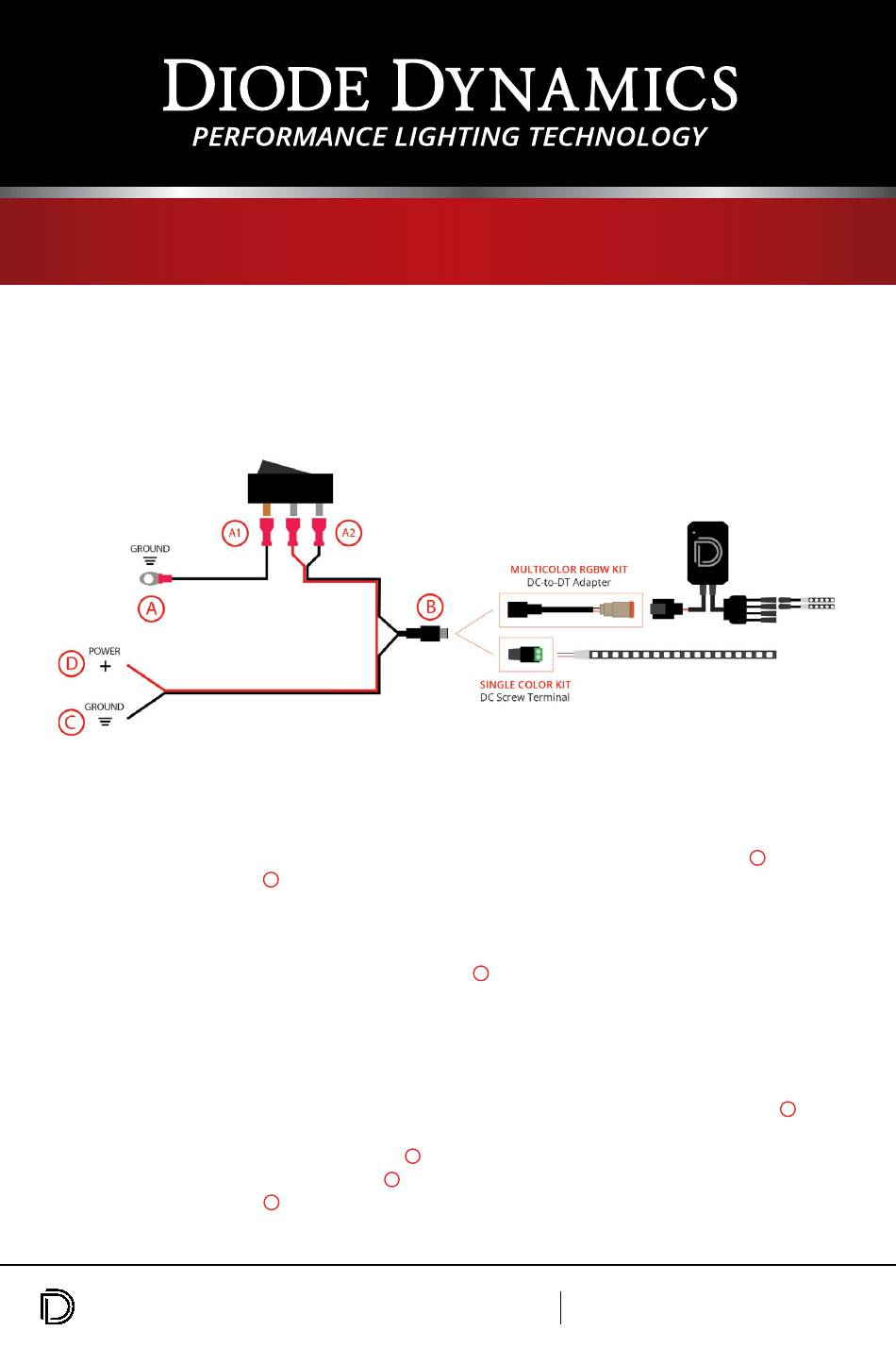

3. Connect the strips to the wiring harness:

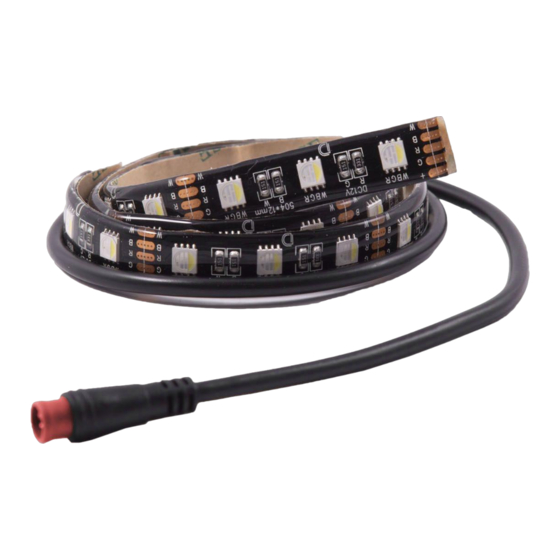

Multicolor RGBW Kit: Plug the DC connector
wire. Then plug the DT connector into your RGBW controller. Plug the M8 connector
on each strip into the controller.
Single Color Kit: Insert the red (+) and black (-) wires on each strip into the positive (+)
and negative (-) slots on the green tip of the DC screw terminal. Plug each DC screw
terminal into the splitter wire. Then plug the splitter wire into the DC connector .
4. Connect the pink spade connectors
Connect the additional ground wire
to any bare metal bolt .
PAGE 1
Universal Footwell LED Kit
Installation Guide
to the 12V power source and ground located in step one.
C
to the silver pins on the back of the switch.
A2
to the copper pin on the switch, and ground it
A1
A
