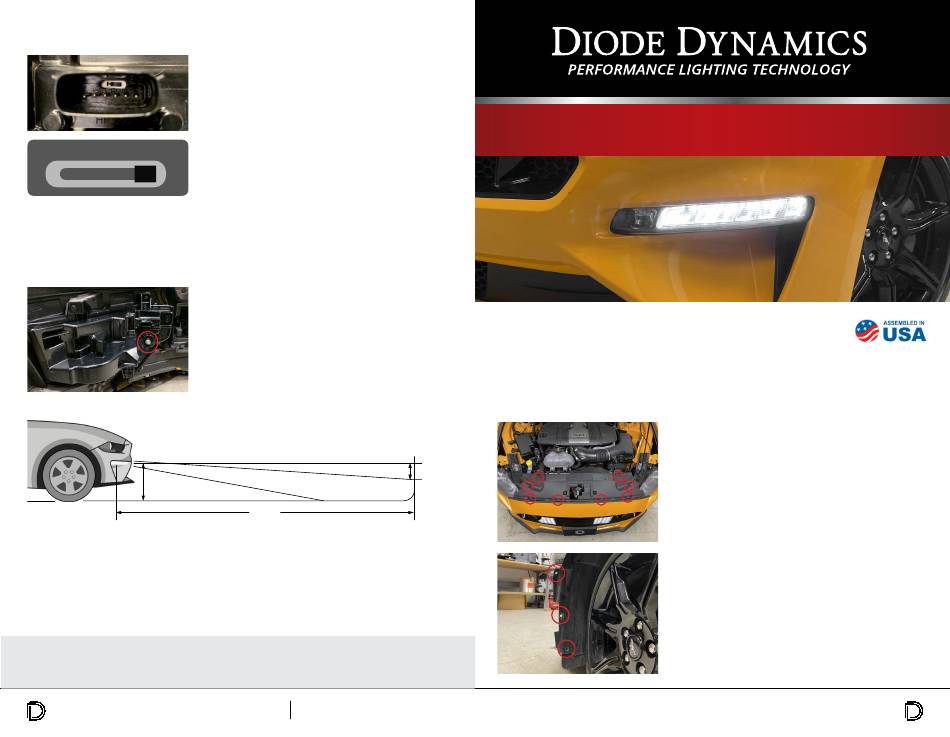

Diode Dynamics Elite Series Installation Manual

11. Using the integrated switch (located inside the
main connector on the back of the fog lamp housing)
select your desired turn signal blink rate.
• STAT: Static, non-sequential turn signal
• EU: Sequential, faster speed to match export
• US: Sequential, slower speed to match tail lights
STAT EU US
Use the included small screwdriver to select desired
option. The factory connector will seal up this part
of the housing when installed.
12. While holding the bumper cover in front of the vehicle, plug in the fog lamp connectors
and place the bumper cover back onto the locators. Please note that the lower splash
guard should be on top of the chin spoiler.
13. Gently reinstall the push pins into each fender.
14. Test function and aim fog lamps. To do so,
park 25 feet from a wall, on a flat surface. The top
of the fog lamp beam pattern should be four inches
lower than the height of the lamp on your vehicle. To
adjust, locate the 8mm hex head bolt located on the
back of the fog lamp. Rotate this bolt clockwise to
aim downward, and counter-clockwise to aim
upward. Make sure to count the number
of rotations.
NOTE: Do not rotate this bolt more than three full
turns in either direction. The lamps are factory-aimed
and should only require one rotation at most.
Measure lamp height to center
15. When desired aiming is reached, complete the install process by reversing steps one
through five. First, secure the bumper cover to the core support and lower splash guard
using the original screws. Then reinstall the inner fender liner and upper valance using
the original push rivets.
Please contact Diode Dynamics should you have any questions about the installation
or wiring process, at 314-205-3033 (10a-5p CST) or contact@diodedynamics.com.
This installation guide is for the following SKUs:
3 YEAR
DD5132 Ford Mustang 2018 Elite Foglamp White (set)
WARRANTY
PAGE 4 (314) 205-3033
PP0161C
model blink rates
Four (4) inches
25 feet
DD5133 Ford Mustang 2018 Elite Foglamp Yellow (set)
WWW.DIODEDYNAMICS.COM

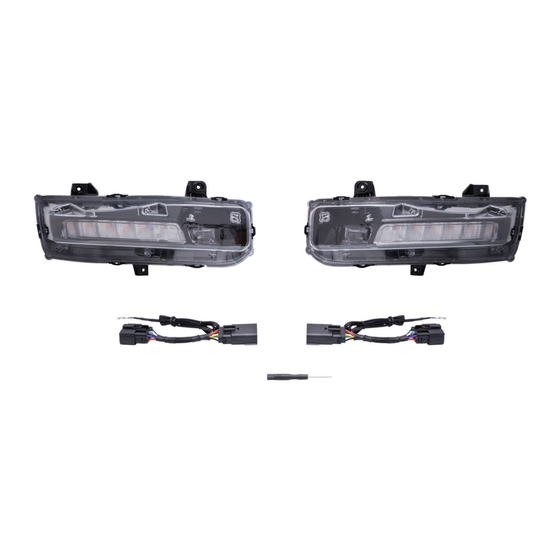

Combination Lamp Installation Guide
Thank you for your purchase of Elite Series Combination Lamps for your
2018+ Mustang! Designed for perfect fitment, these LEDs illuminate in a cool
white for your parking lights and DRL, and add a sequential turn signal as
well as a modern startup sequence any time the vehicle is unlocked.
Tools Needed: Plastic trim removal tool, 7mm socket, 8mm socket, 7/32" socket, 10mm
socket, and small screwdriver (included in kit)
Level
Top of
Beam
Elite Series 2018+ Ford Mustang
1. Using a plastic trim removal tool, remove the eight
push rivets on the upper valance. Then, gently pry
them off and remove the upper valance.
2. Using a plastic trim removal tool, remove the three
push rivets holding the inner fender liner in place.
Do this on both sides of the vehicle.
PAGE 1
