Diode Dynamics HD HALO Quick Start Manual

2014-2019 Jeep Grand Cherokee HD LED Halos
Thank you for your purchase of custom HD LED Halos for your Grand
Cherokee. With this product, you will be able to add a brighter white
running light, along with an amber turn signal!
Please note: Headlights must be opened before proceeding with installation. This process
can be completed by heating and prying the lens from the housing. We recommend viewing
example videos online to understand the process however, professional installation is strongly
recommended. Please contact Diode Dynamics if you need assistance locating an installer.

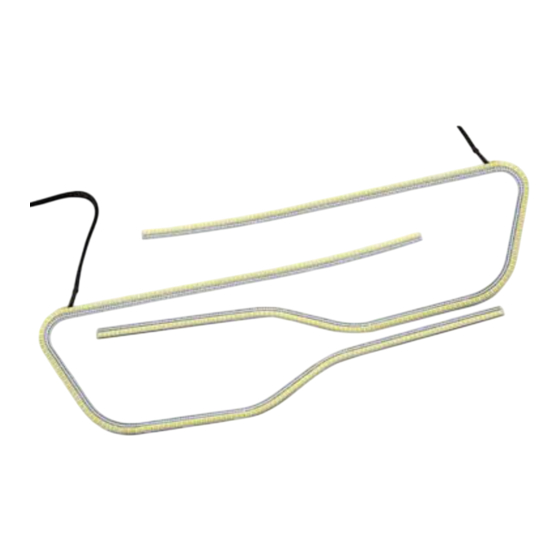

1. Once the headlight is opened, mount the halo in between the diffuser lens and the factory
optics using beading wire or epoxy. The halo should sit on top of the raised edge of the
factory clear plastic piece.
2. Next, route the wires to the back of the headlight, sealing any holes that you may create.

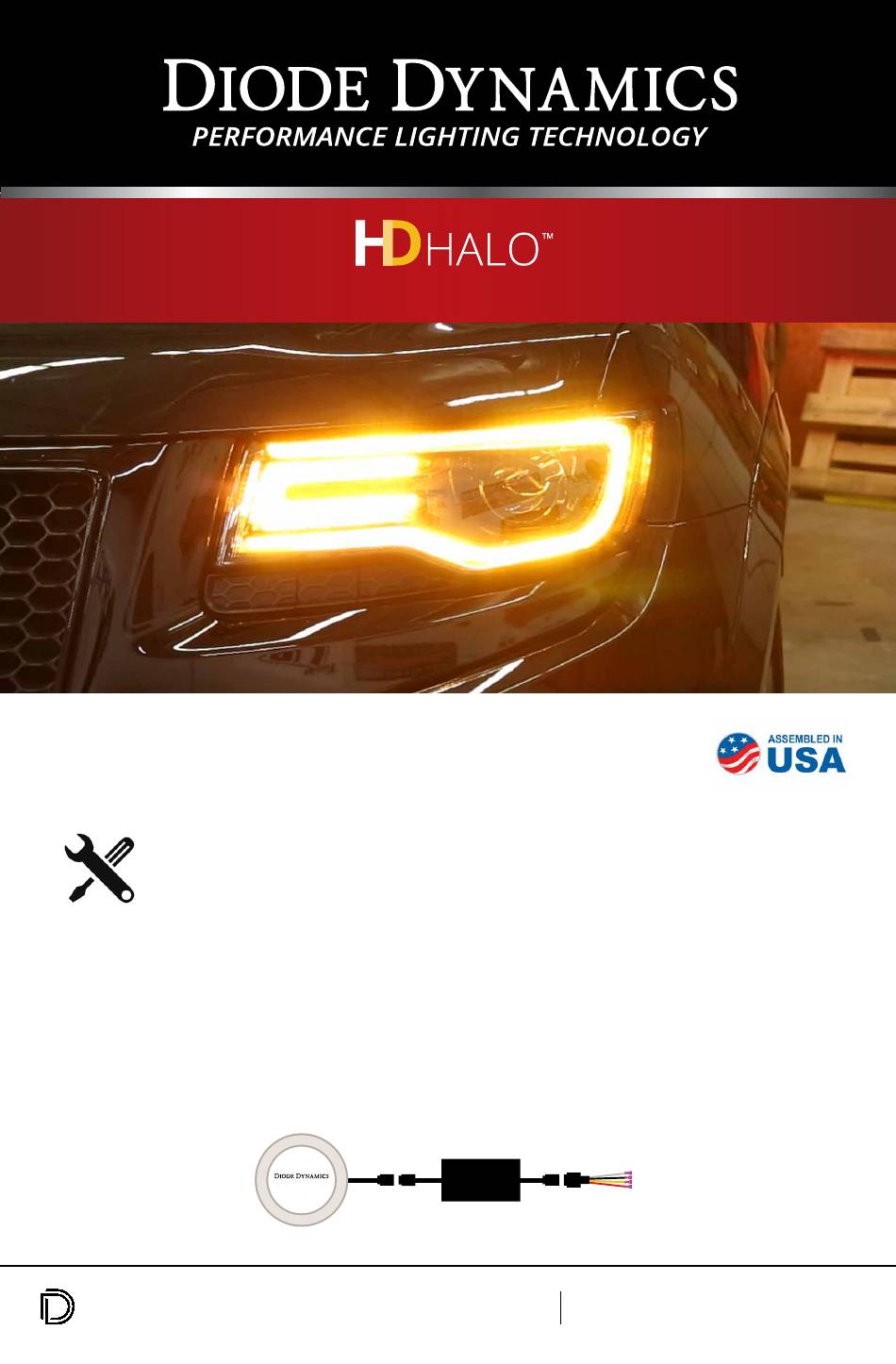

3. Connect the halo connector to the driver and then connect the driver to the pigtail. See
diagram below.
PAGE 1
HD Halo
(314) 205-3033
DRIVER
WWW.DIODEDYNAMICS.COM
