Diode Dynamics DD6090 Installation Manual

2018+ Jeep JL Wrangler
Hood Light Bar Kit Installation Guide
7. At the white connector, unplug the switch wires from the harness, and connect the extra
pigtail here instead. Using the butt connector at the end of the pigtail, crimp the yellow
wire to an OEM Auxiliary Switch wire lead.
NOTE: Power will be drawn from the battery, so any OEM Auxiliary Switch wires can be used,
regardless of amperage rating.
8. Route the output wire to the light bar, avoiding any moving parts or direct contact with
heat sources. Plug the output connector into the light bar.
9. Secure the wires and test thoroughly to complete your installation.
Please contact Diode Dynamics should you have any questions about the installation
or wiring process, at 314-205-3033 (10a-5p CST) or contact@diodedynamics.com.
NEED MORE HELP?
Scan the QR code to link to our installation video online!
We've taken the time to test our products on your vehicle. We can
guarantee compatibility and fitment the first time – no guessing
game! If you need more help with installation, watch our step-by-step
video to walk you through the process.
This installation guide is for the following SKUs:

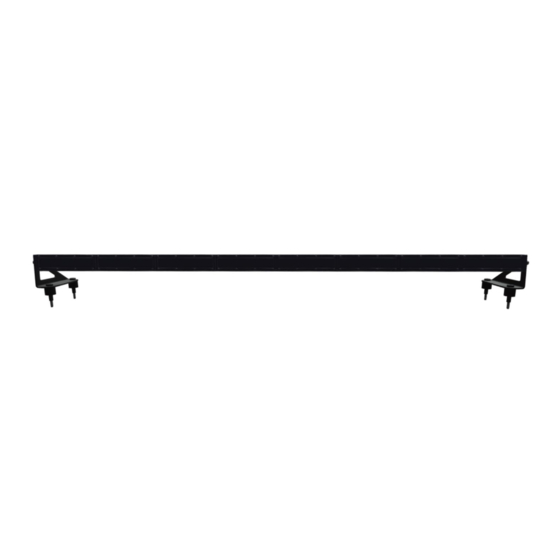

DD6090 Jeep 2018 Hood Bracket Kit
DD6104 Jeep 2018 SS50 Hood LED Kit White Driving
DD6105 Jeep 2018 SS50 Hood LED Kit White Flood
DD6106 Jeep 2018 SS50 Hood LED Kit White Combo
