Diode Dynamics Stage SS3 Manual

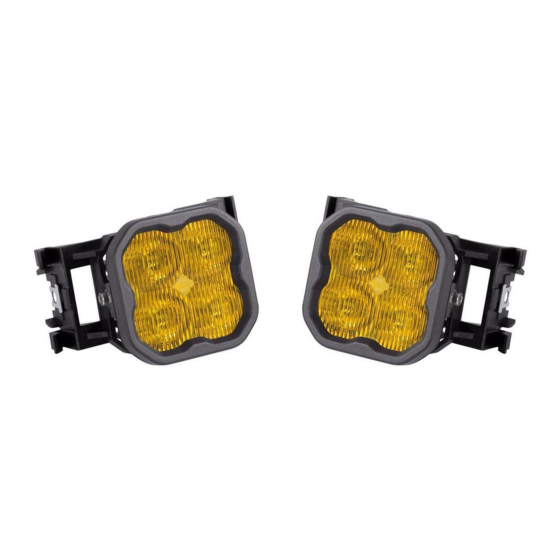

Thank you for your purchase of our new SS3 Type X Foglight Kit. CAD-designed to use existing
mounting points, this kit is compatible with the 2011-2014 Subaru WRX and 2008-2009 Subaru
Legacy. Basic installation instructions are included below.
Please contact us if you have any questions.
Passenger/Right Side (opposite for Driver/Left side)
1. Install the supplied clip-on nut onto the bracket, with the
threads facing toward the SS3 pod. Then install the supplied
nuts into the pod housing with the nylon facing inward.
2. Attach the bracket to the pod using the supplied screws and
washers. See diagram above. The screws will also determine
the aim of your SS3 pods.
PAGE 1
SS
Type X Foglight Kit
Clip-On Nut
(314) 205-3033
3" LED Pod
3
TOP
BOTTOM
See back for further instructions.
