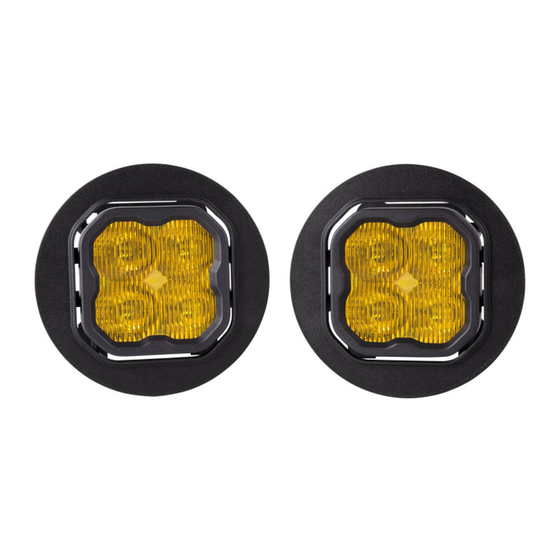

Thank you for your purchase of our new SS3 Type OB Foglight
Kit. CAD-designed to use existing mounting points, this kit is
compatible with the 2005-2009 and 2013-2019 Subaru Outback.
Basic installation instructions are included below.
Please contact us if you have any questions.
M6 Carriage Bolts
Left and Right Sides
1. Install the two included M6 carriage bolts on the bracket as shown above. We recommend
using a small amount of adhesive to prevent them from falling out during installation.
2. Install the supplied nuts into the pod housing with the nylon facing inward. Attach the
bracket to the pod using the supplied screws and washers. See diagrams above. The screws
will also determine the aim of your SS3 pods. Ensure that the screws are tightened such that
the pod retains its position, but can pivot with force for aiming.
PAGE 1
SS
3" LED Pod
3
Type OB Foglight Kit
BOTTOM
See back for further instructions.
TOP
Advertisement
Related Manuals for Diode Dynamics STAGE Series
Summary of Contents for Diode Dynamics STAGE Series
- Page 1 3” LED Pod Type OB Foglight Kit Thank you for your purchase of our new SS3 Type OB Foglight Kit. CAD-designed to use existing mounting points, this kit is compatible with the 2005-2009 and 2013-2019 Subaru Outback. Basic installation instructions are included below. Please contact us if you have any questions.
- Page 2 DD6708 Worklight SS3 Max Type OB Kit White SAE Fog DD6638 Worklight SS3 Pro Type OB Kit White SAE Driving DD6709 Worklight SS3 Max Type OB Kit Yellow SAE Fog Looking for dependable off-road lights? Rely on Diode Dynamics for quality and long-lasting products.
