SS

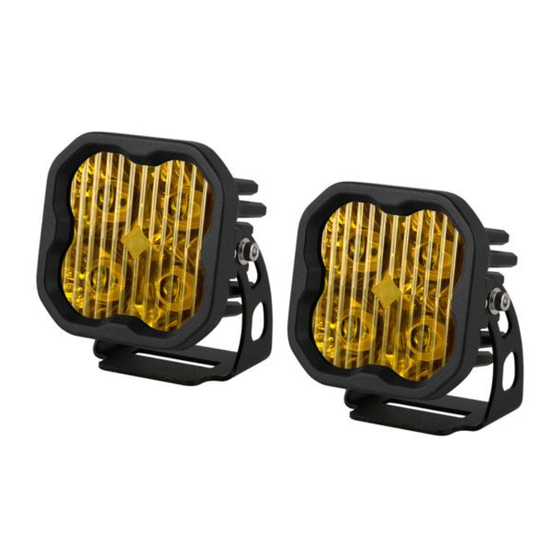

3" LED Pod
3
Ram Vertical Foglight Kit
Thank you for your purchase of our new SS3 Ram Vertical Foglight Kit. CAD-designed to use
existing mounting points, this kit is compatible with the 2013-2018 Ram 1500. Basic installation
instructions are included below. Please contact us if you have any questions.
TOP
BOTTOM
Driver/Left Side (opposite for passenger/right side)
1. Install the supplied nuts into the pod housing with the nylon facing inward. Attach the
bracket to the pod using the supplied screws and washers. See diagrams above. The screws
will also determine the aim of your SS3 pods. Ensure that the screws are tightened such that
the pod retains its position, but can pivot with force for aiming.
See back for further instructions.
PAGE 1
WWW.DIODEDYNAMICS.COM
(314) 205-3033
Advertisement
Table of Contents
Related Manuals for Diode Dynamics Stage Series
Summary of Contents for Diode Dynamics Stage Series
- Page 1 3” LED Pod Ram Vertical Foglight Kit Thank you for your purchase of our new SS3 Ram Vertical Foglight Kit. CAD-designed to use existing mounting points, this kit is compatible with the 2013-2018 Ram 1500. Basic installation instructions are included below. Please contact us if you have any questions. BOTTOM Driver/Left Side (opposite for passenger/right side) 1.
- Page 2 6. Repeat the steps on the other side of the vehicle to complete the installation. Please contact Diode Dynamics should you have any questions about the installation or wiring process, at 314-205-3033 (10a-5p CST) or contact@diodedynamics.com. NEED MORE HELP? Scan the QR code to link to our installation video online! We’ve taken the time to test our products on your vehicle.
