Diode Dynamics SS18 Bracket Kit Installation Manual

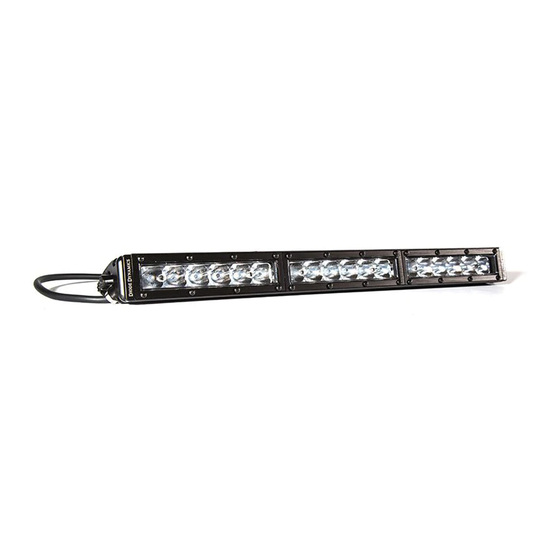

2019+ Ford Ranger SS18 LED Lightbar Kit Installation Guide
Thank you for your purchase of this custom-designed Stage Series LED Light Bar Kit for
your 2019+ Ford Ranger! This kit utilizes both factory and included hardware to mount
the bracket to the vehicle.
Tools Needed: Flat-head screwdriver or trim removal tool, 21mm sockets
PAGE 1

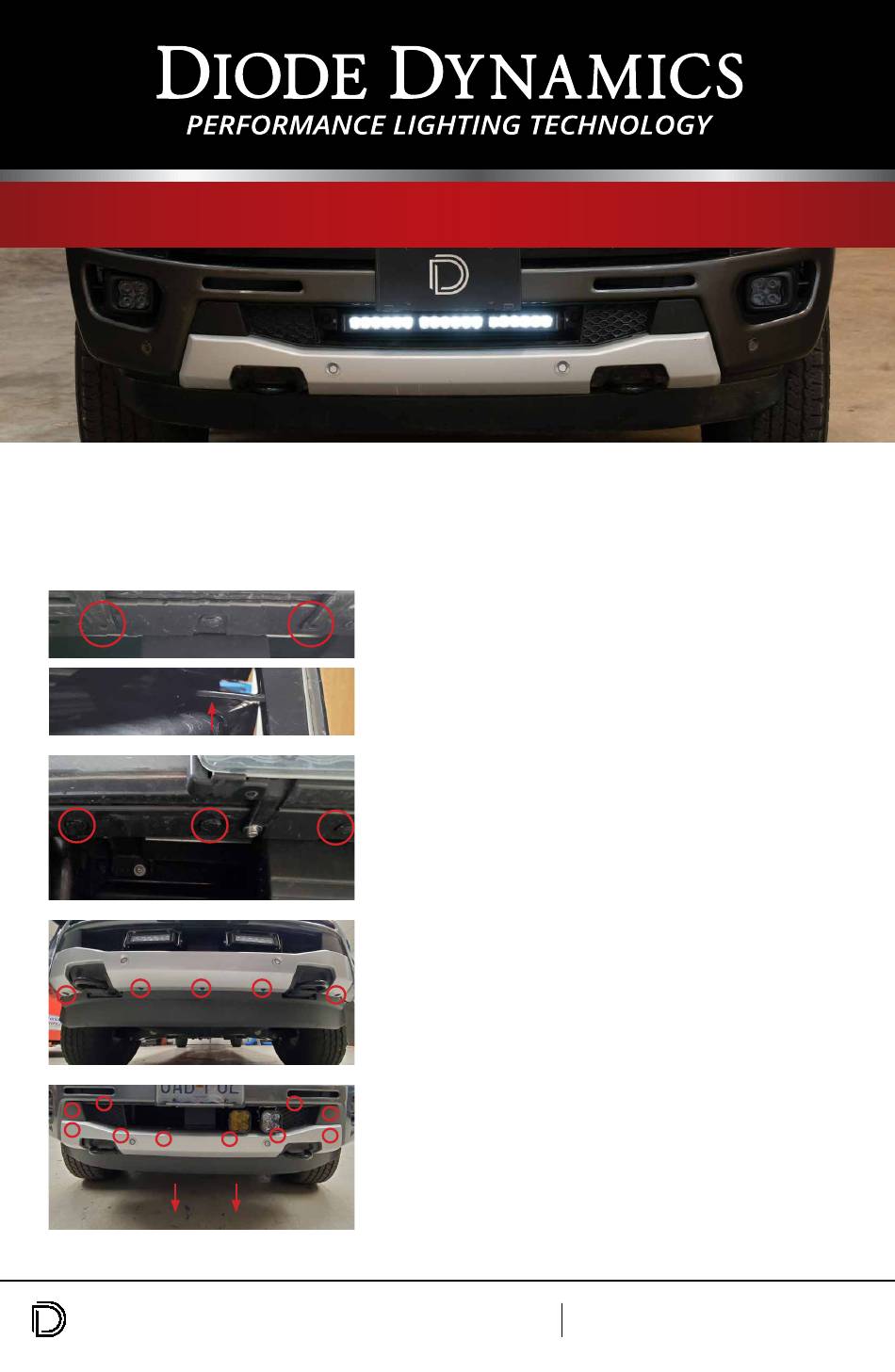

1. If applicable, remove the license plate holder. To do
so, remove the two 10mm screws along the bottom of
the holder. Then using a trim removal tool or flat-head
screwdriver, pry up on the two mounting clips located
on the top of the holder to remove it from the vehicle.
Set it aside.
2. Using a trim removal tool or flat-head screwdriver,
remove the five plastic push-rivets from along the top
of the lower grille opening.
3. Remove the five 10mm bolts along the bottom of
your bumper shown in the picture to the left.
4. Firmly pull out on the lower grille to loosen the
clips shown to the left. Disconnect the connectors
for the integrated sensors to remove the lower
grille completely.
(314) 205-3033
See back for further instructions.
