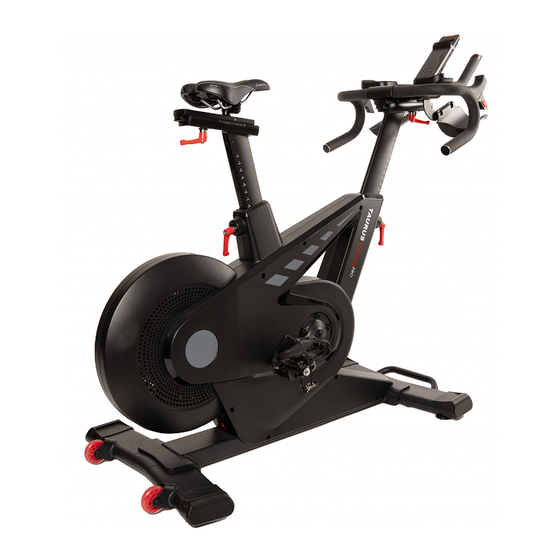

Summary of Contents for Taurus Racer Pro TF-RACER
- Page 1 Assembly and Operating Instructions max. 180 kg ~ 60 Min. 59 kg L 157 | W 60 | H 137 FSTFRACER.01.02 Art. No. TF-RACER Taurus Racer Pro...
- Page 2 Racer Pro...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions Turning on the Console and Standby Mode Programmes 3.4.1 Quick Start Function and Target Programmes (M) 3.4.2 Preset Programmes (P) 3.4.3 User Defi ned Programmes (U) 3.4.4 Heart Rate Controlled Programme (H) - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT Racer Pro...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
GENERAL INFORMATION Technical Data LED Display: Training time Speed Revolutions per minute Distance Calories burned Pulse (when using a compatible chest strap) Watt Resistance level Resistance system: induction brake system Resistance levels: Flywheel mass: 12 kg Wattage Min. and max. watt at 60 RPM: 30 - 650 W Min. -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Electrical Safety
⚠ CAUTION Be aware that if adjustment devices are left protruding, they may impede the user’s movement. ATTENTION Do not insert any objects of any kind into the openings of the device. To protect the equipment from use by unauthorised third parties, always remove the power cable when not in use and store it in a safe place that is inaccessible to unauthorised persons (e.g. -
Page 11: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 12: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 13: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... - Page 14 Racer Pro...
-
Page 15: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 16 Step 2: Assembly of the Handlebar Pass the middle computer cable (64) through the respective opening of the handlebar (36) ATTENTION Be careful not to pinch the cables during the following step. Assemble the handlebar (36) to the handlebar adjustable tube (17) with four screws (6), four spring washers (9) and four washers (16).
- Page 17 Step 3: Connection of the Console Cables Connect the two left quick key cables (92L & 93L) to their corresponding counterparts (76). Connect the middle computer cable (64) to its corresponding counterpart (76). Connect the two right quick key cables (92R & 93R) to their corresponding counterparts (76).
- Page 18 Step 4: Assembly of the Computer and the Protective Covers Part 1 ATTENTION Be careful not to pinch the cables during the following step. Assemble the computer (76) on the handlebar (36) with four screws (102). ATTENTION The middle handlebar cover is not screwed on until step 5. Place the middle handbar protective cover (43) on the handlebar (36).
- Page 19 Step 5: Assembly of the Protective Covers Part 2 Assemble the center handbar protective cover (43), left handbar protective cover (42L) and right handbar protective cover (42R) with a total of eight screws (37).
- Page 20 Step 6: Assembly of the Pedals and the Bottle Holders ⚠ CAUTION In the following step, make sure to screw in the pedals completely. Mount the left pedal (51L) to the left crank arm (48L) with the tool by turning it counterclockwise. Mount the right pedal (51R) on the right crank arm (48R) with the tool, turning clockwise.
- Page 21 Step 7: Adjustment of the Seat Height Adjustment ⚠ CAUTION The seat post is marked with “STOP” for the minimum insertion depth. When adjusting, make sure not to exceed the minimum insertion depth. Loosen and pull the L knob to adjust the height of the seat post. ⚠...
- Page 22 Step 8: Adjustment of the Handlebar Height Adjustment ⚠ CAUTION The front post is marked with “STOP” for the minimum insertion depth. When adjusting, make sure not to exceed the minimum insertion depth. Loosen and pull the L knob to adjust the height of the front post. ⚠...
- Page 23 Step 9: Alignment of the Feet If the fl oor is uneven, you can stabilize the equipment by turning the two setting screws under the stabilizers. Lift the equipment on the desired side and rotate the setting screws under the stabilizer. Rotate the screws clockwise in order to remove them and to raise the equipment.
-
Page 24: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Always start your training with low intensity and increase evenly and gently. End your training with a cool-down phase. -
Page 25: Button Functions
Display of the wattage WATT Display range 0-999 Setting range 10 - 350 (in 5 increments) Display of rotations per minute Display range 0 - 999 Resistance level Display of the resistance level The resistance level is displayed in colored segments (green, orange and red). Green - low;... -
Page 26: Turning On The Console And Standby Mode
Turning on the Console and Standby Mode Turn on the console. NOTICE The power button is located on the main frame near the rear stabilizer After the console is turned on, the LED display lights up for 2 seconds. After that, the preset value for the wheel diameter is displayed for 1 second and the user profi le setting is shown. -
Page 27: Quick Start Function And Target Programmes (M)
3.4.1 Quick Start Function and Target Programmes (M) Within this programme mode you can perform your training depending on single or multiple parametres. Alternatively, you can use the quick start function by simply tapping START or ENTER without making any settings. ... -
Page 28: User Defi Ned Programmes (U)
3.4.3 User Defi ned Programmes (U) The console off ers you the possibility to create your own user defi ned programme. Select the user defi ned programme (U) in the main menu using the jog dial and confi rm with ENTER. Set the desired resistance level for the 8 segments with the jog dial and confi rm with ENTER. -
Page 29: Watt Programme (W)
3.4.5 Watt Programme (W) The console off ers you the possibility to train depending on a wattage value you set, by adjusting the resistance level accordingly. Select the watt programme (W) in the main menu using the jog dial and confi rm with ENTER. -
Page 30: Compatibility Training Apps
Compatibility Training Apps This indoor cycle is equipped with a wireless technology interface which allows you to connect the console to diff erent training apps via your mobile device such as smartphone or tablet. You can fi nd and download the training apps in the app stores of Google or Apple. ... - Page 31 Now select the type of device. You can choose from roller trainer, exercise bike, treadmill, cross trainer, indoor cycle and rowing machine. For the Taurus Racer, select Indoor Cycle. On the next page you will see the diff erent brands. Select “Taurus” and then the Taurus Racer. Now all wireless technology sources in the surrounding area are displayed.
- Page 32 IMPORTANT NOTE The pre-installed apps are produced and provided by external manufacturers. Changes and availability within these apps might occur. Fitshop does not take any responsibility and can not be held liable for the availability, functionality or contents of these apps. To make sure the pre- installed apps are working correctly, they must be updated regularly.
-
Page 33: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 34: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Safety can only be guaranteed if you check the equipment regularly for wear and damage. Immediately replace damaged or worn components. -
Page 35: Error Codes And Troubleshooting
Error Codes and Troubleshooting The electronics of the equipment continuously carries out tests. In case of deviations, an error code appears on the display and normal operation is stopped for your safety. Please contact the contract partner for technical support. Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. -
Page 36: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For indoor cycles this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat or silicone spray to keep moving parts in good shape. - Page 37 The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / indoor cycle Model Name: Taurus Racer Article Number: TF-RACER...
- Page 38 Parts List Name Supplier Parts No. Specifi cation Qty. Main frame 849S0-3-1000-J3 Rear stabilizer 849S0-3-2112-J1 Adjustable wheel 76100-6-2174-B0 D50*M10*1.5 Front stabilizer 849S0-3-2100-J1 Oval Cap 849S0-6-2190-B0 125.5*54.6*88.6L Allen boltM8*1.25*35L 50308-5-0035-F0 M8*1.25*35L ScrewM8x1.25x20L 25600-6-3191-F0 M8x1.25x20L Spring washer 55108-2-1520-FA D15.4xD8.2x2T Back chain cover(left) 849S0-6-4512-B0 D474*52.7 Back chain cover(right)
- Page 39 Allen nutM10*1.5*8T 55210-2-2008-FA M10*1.5*8T Round head screw 54010-5-0020-F0 M10*1.5*20L Belt 58004-6-1127-00 560 PJ8 Round magnet 174R4-6-2574-00 Brake handlebar 849S0-6-2083-00 80.3*54*21.4 Cover of brake 849S0-6-2084-B0 96.8*69.6*33 Positioning block 849S0-6-2082-B0 35.5*24*14.2 Handlebar 849S1-3-2400-B1 ScrewST4*1.41*12L 52804-2-0012-F0 ST4*1.41*12L ScrewST4.2*15L 52842-2-0015-F0 ST4.2*15L ScrewST4*1.41*13L,D10 54704-2-0013-F0 ST4*1.41*13L,D10 Elbow pad sleeve 849S0-6-3488-B0 109*84*6T...
- Page 40 Switching mode power 261D8-6-2411-00 supplier Socket 26100-6-2413-00 Screw ST4*1.41*10L 51004-2-0010-F0 ST4*1.41*10L Live wire 734S0-6-3480-00 150L Neutral wire 734S0-6-3479-00 150L Grounding cable 734S0-6-3486-00 200L Middle computer cable 849S1-6-2587-00 550L Lower computer cable 849S0-6-2573-02 300L Adapter 26100-6-1775-02 1700L Button(-) 849S0-6-2534- 31.7*21*10.5 Button(+) 849S0-6-2533- 31.7*21*10.5 controller...
- Page 41 Plastic fl at washer 55110-1-5010-BF D50*D10*1.0T Allen nutM8*1.25*6T 55208-2-2006-NA M8*1.25*6T Nylon nutM8*1.25*8T 55208-1-2008-NA M8*1.25*8T Handlebar grips(1) 849S0-6-2468-B1 D24*3.5T*270L Handlebar grips(2) 849S0-6-2469-B1 D24*3.5T*530L Lower cable of quick key(1) 849S0-6-2544-01 650L Lower cable of quick key(2) 849S0-6-2536-01 650L Quick Keys Group 1 849S0-6-2540-B2 400L, Silver Quick Keys Group 2...
- Page 42 L knob 849S0-6-1072- M12*25L Handle 849S0-6-5103-J2 D25.4*1.4T*373L Cushion 849S0-6-1081-B0 194.3*107*1.2T ScrewST2.3*8L 54723-2-0008-C0 ST2.3*8L ScrewST2.3*12L 51023-2-0012-F0 ST2.3*12L ScrewST2.9*13L 51029-2-0013- ST2.9*13L Tablet holer 849S1-6-2466-J0 292.6*134.6*3T Antislip strip 815S5-6-2278-B2 50*10*2.5T Knurled hand screw 26100-6-1079-00 D31*16 External teeth lock gasket 55105-6-1006-FA D10*D5.3*0.6T ScrewM5*0.8*35L 50805-2-0035-N0 M5*0.8*35L Allen cross wrentch 58030-6-1031-N1...
- Page 43 Exploded Drawing...
- Page 44 WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 45 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
- Page 46 CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� �� �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.co.uk �� technik@fi tshop.de �� ��...
- Page 47 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Fitshop is Europe’s largest specialist store for www.fi tshop.co.uk home fi tness equipment with currently over 70 www.fi tshop.de/blog stores and one of the world’s most renowned online mail order companies for fi tness equipment.
- Page 48 Notes Racer Pro...
- Page 49 Notes...
- Page 50 Notes Racer Pro...
- Page 52 Taurus Racer Pro...
